UGC DOR5986457
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$197.21 CAD - $197.21 CAD
$197.21 CAD
$197.21 CAD - $197.21 CAD
$197.21 CAD

Vendu en lots de : 1

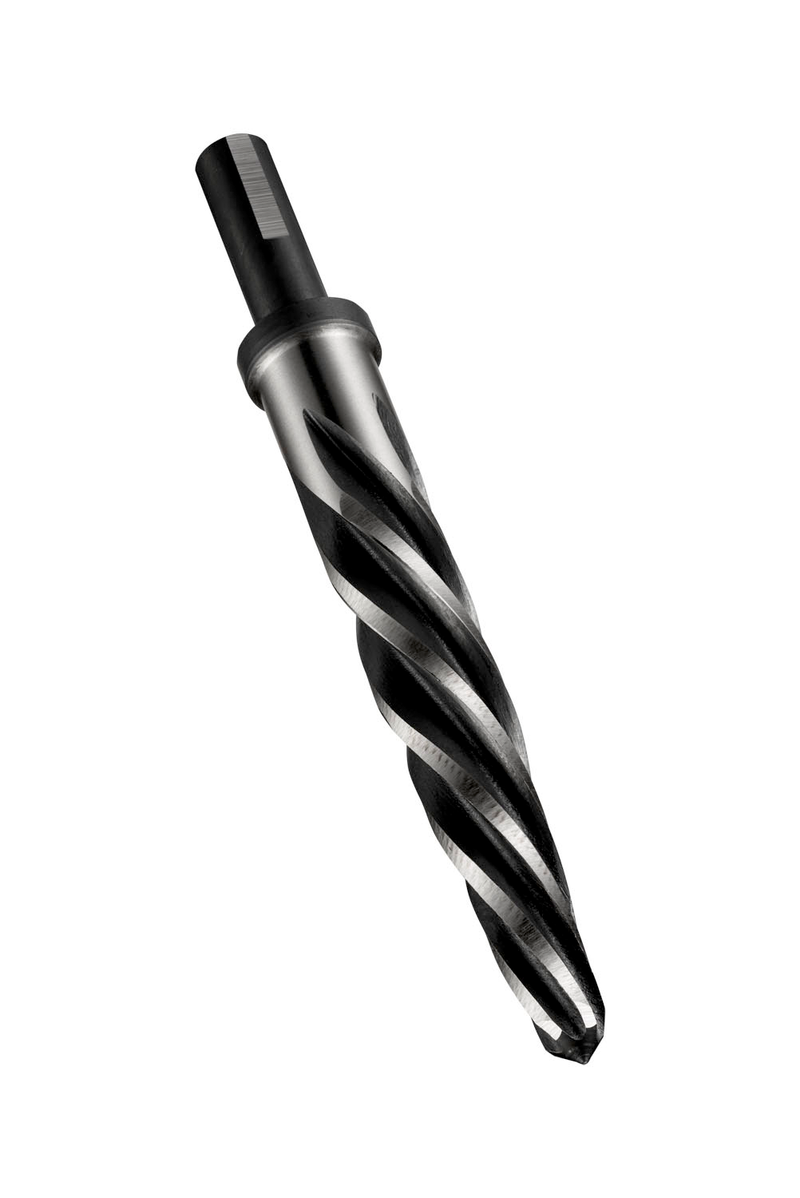

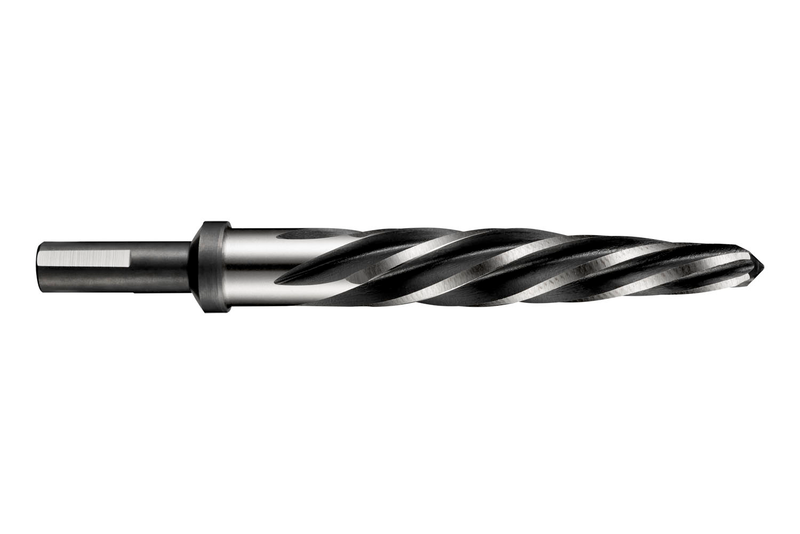

Alésoir automobile à goujures hélicoïdales lentes à gauche et à queue Tri-flats réduite, diamètre nominal 0,7500" (3/4") avec une longueur totale de 6.7/8", une longueur de goujure de 4.1/2" et un cône d'attaque de 3.9/16", selon la norme ANSI pour l'élargissement de trous ou la correction de désalignements, HSS avec finition bronze trempé à la vapeur pour l'usinage des aciers de décolletage et au carbone ordinaire, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B1223/4
GradeST/Bronze
Product Number5986457
Product FamilyB122

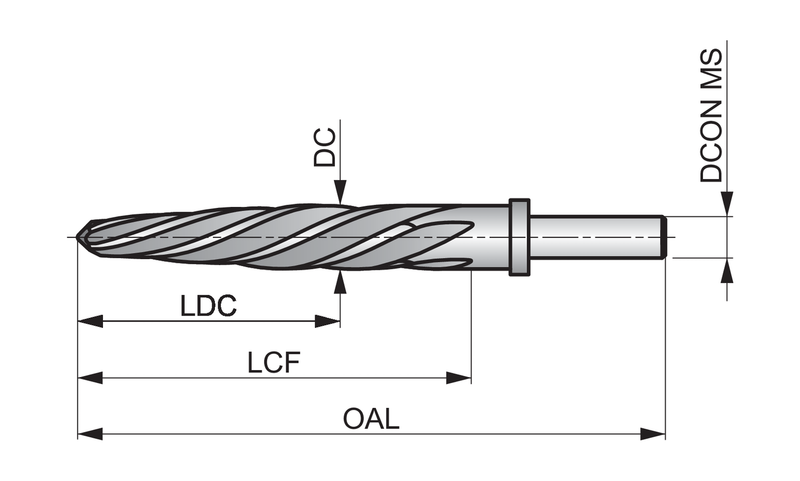

Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.05 mm
Cutting Diameter — Fractional3/4
Overall Length — in (OAL)6.875"
Overall Length — mm (OAL)174.63 mm
Flute Length — in (LCF)4.5"
Flute Length — mm (LCF)114.3 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)5
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number252406
EAN7320760252406
File Type Download
B1223/4 — Line Drawing PDF Download
