B1223/8
B1223/8
B1223/8

B1223/8

UGC DOR5986460
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$104.79 CAD - $104.79 CAD
$104.79 CAD
$104.79 CAD - $104.79 CAD
$104.79 CAD

Vendu en lots de : 1

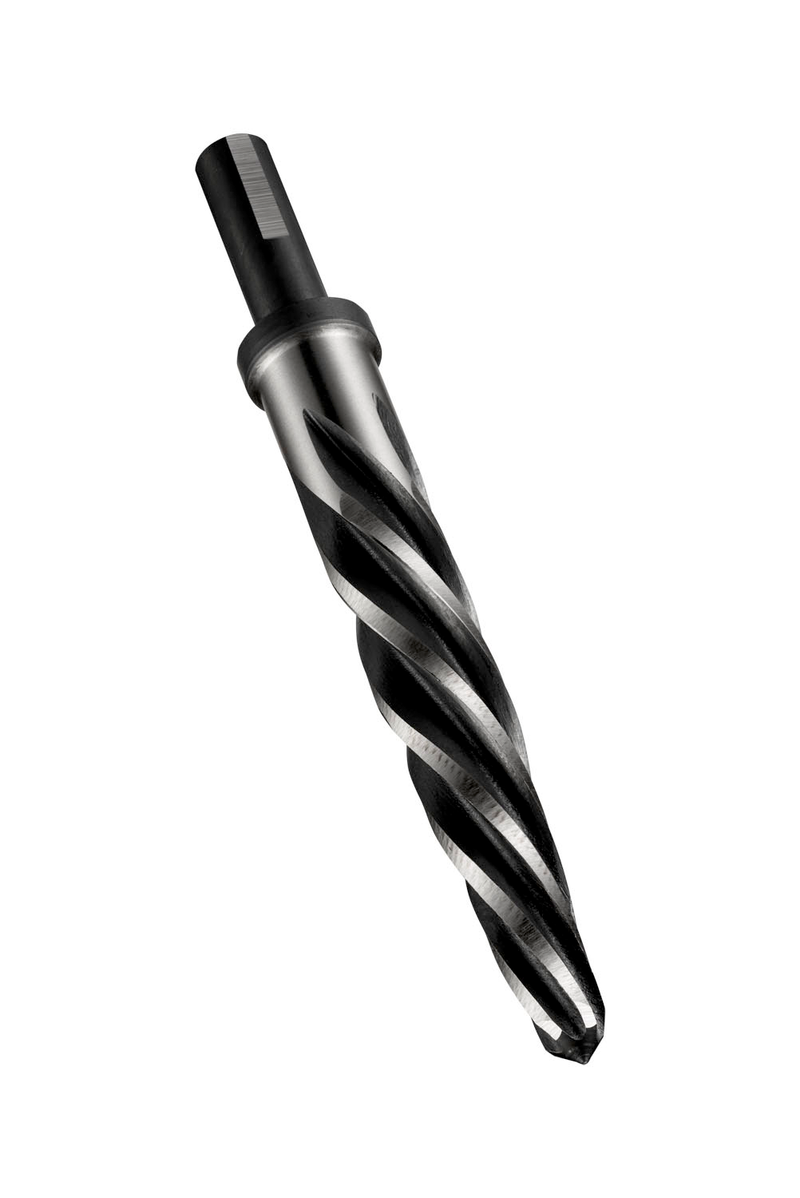

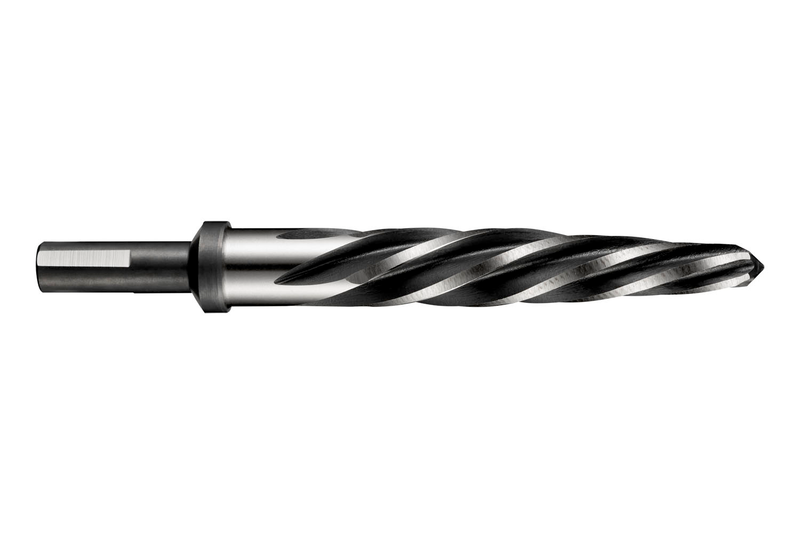

Alésoir à carrosserie avec goujures hélicoïdales lentes à gauche et une queue réduite Tri-flats, diamètre nominal 0,3750" (3/8") avec une longueur totale de 4,5/8", une longueur de goujure de 2,1/2" et un chanfrein d'entrée de 2", selon la norme ANSI pour l'agrandissement de trous ou la correction de désalignements, HSS avec finition bronze trempé à la vapeur pour l'usinage des aciers de décolletage et au carbone, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B1223/8
GradeST/Bronze
Product Number5986460
Product FamilyB122

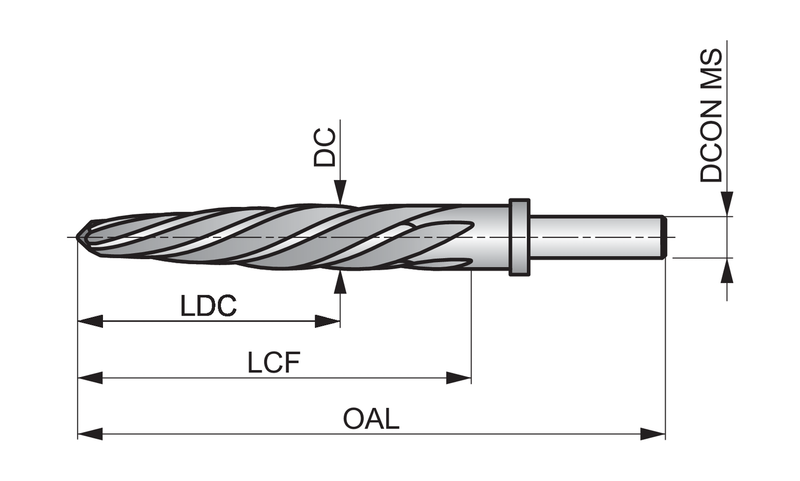

Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)4.625"
Overall Length — mm (OAL)117.48 mm
Flute Length — in (LCF)2.5"
Flute Length — mm (LCF)63.5 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)4
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number426296
EAN7320760426296
File Type Download
B1223/8 — Line Drawing PDF Download
