B90112.0
B90112.0
B90112.0

B90112.0

UGC DOR5986461
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$63.27 CAD - $63.27 CAD
$63.27 CAD
$63.27 CAD - $63.27 CAD
$63.27 CAD

Vendu en lots de : 1

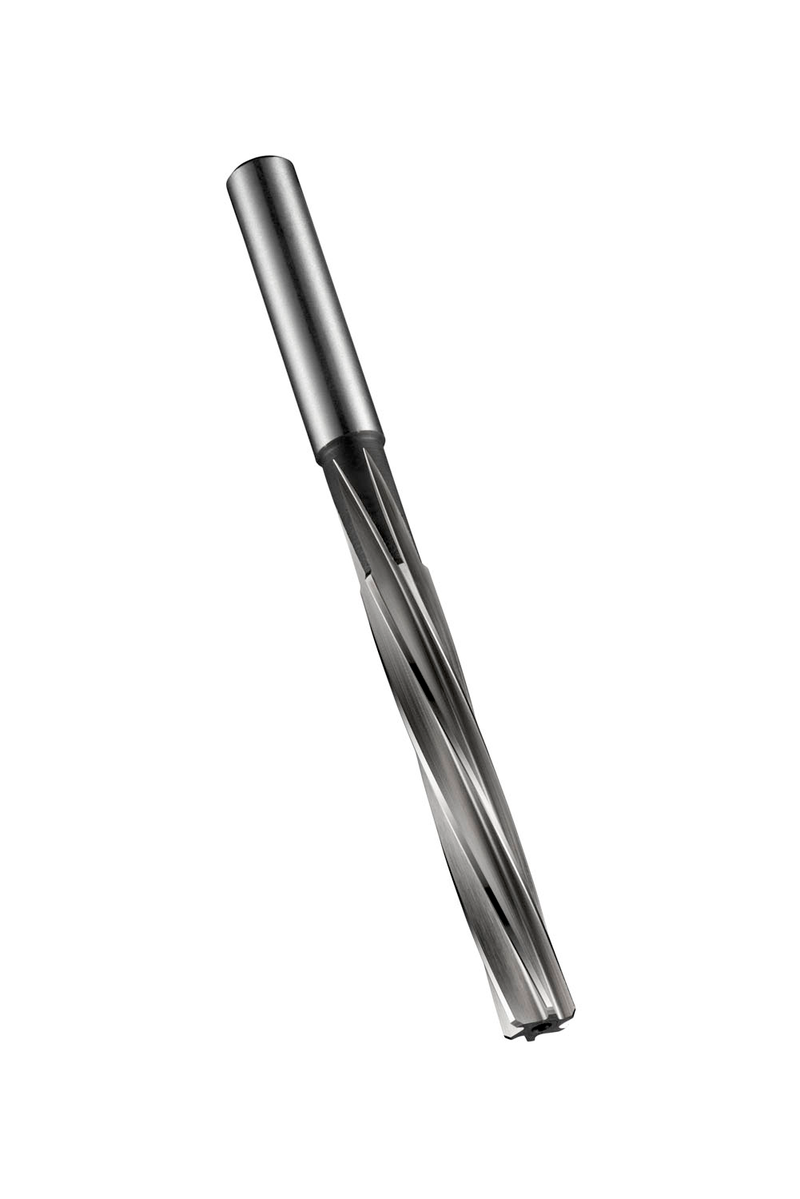

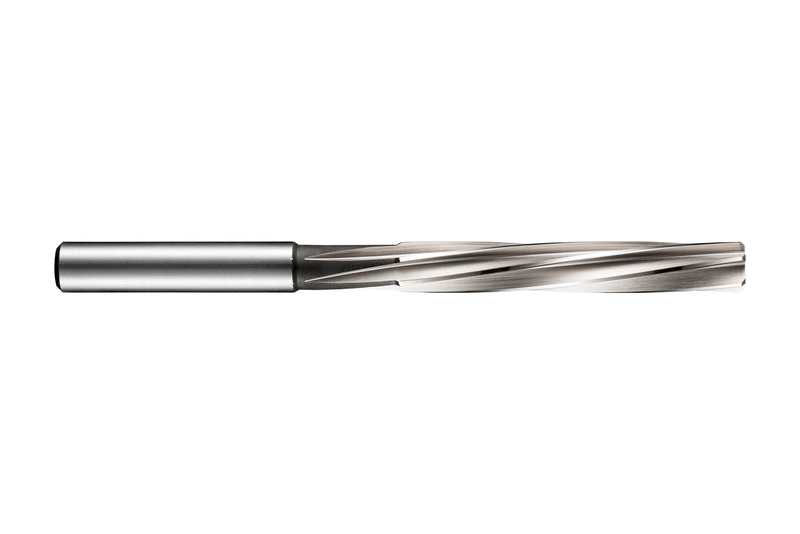

Alésoir machine à spirale lente à gauche et queue cylindrique, diamètre 12,00 mm, longueur totale 152 mm et longueur de coupe 76 mm, selon la norme BS 328 pour l'aléage de trous précis à tolérance H7, en HSS-E à base de cobalt avec finition brillante trempée à la vapeur pour l'usinage d'aciers de décolletage, d'aciers au carbone non alliés et d'aciers alliés, de fontes grises et malléables, d'aluminium et de cuivre ou d'alliages de cuivre forgés et moulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B90112.0
GradeLumineux/ST
Product Number5986461
Product FamilyB901
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)5.9843"
Overall Length — mm (OAL)152.0 mm
Flute Length — mm (LCF)76.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardBS 328
Reference Numbers
EDP Number181126
EAN7320760181126
File Type Download
B90112.0 — Line Drawing PDF Download
