B1225/8
B1225/8
B1225/8

B1225/8

UGC DOR5986463
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$157.19 CAD - $157.19 CAD
$157.19 CAD
$157.19 CAD - $157.19 CAD
$157.19 CAD

Vendu en lots de : 1

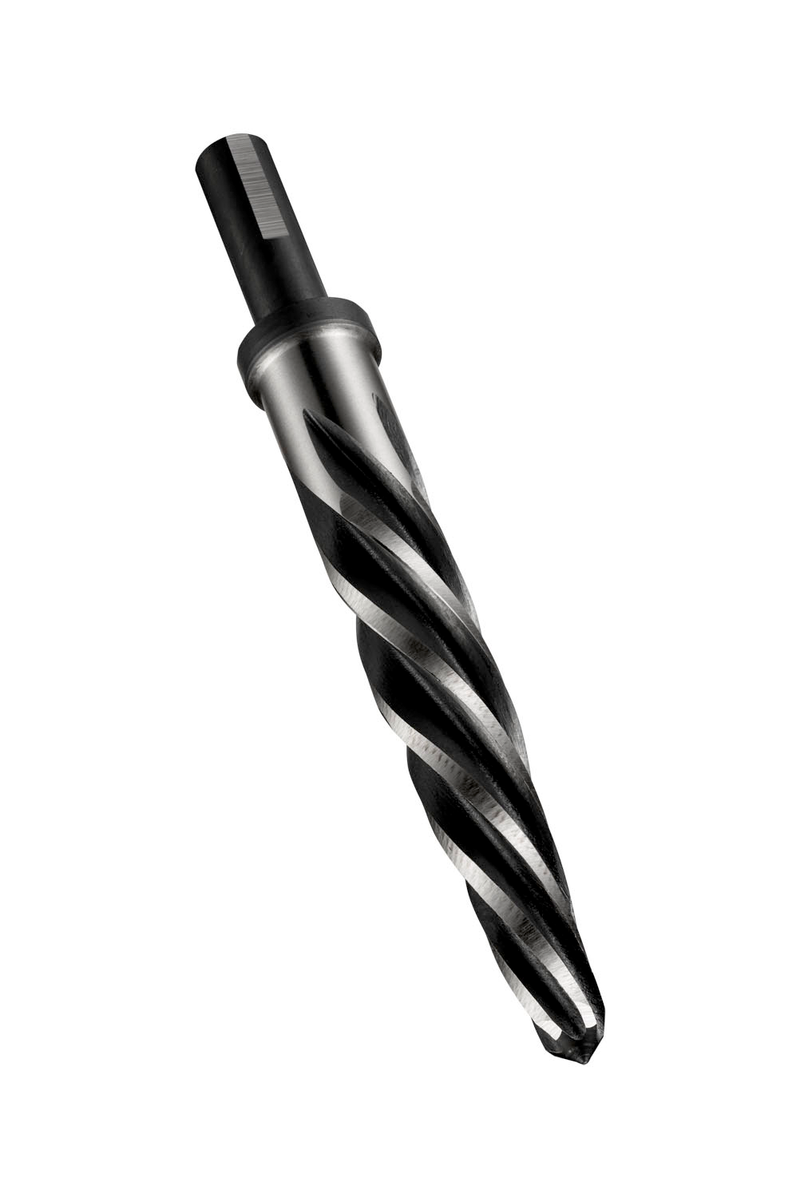

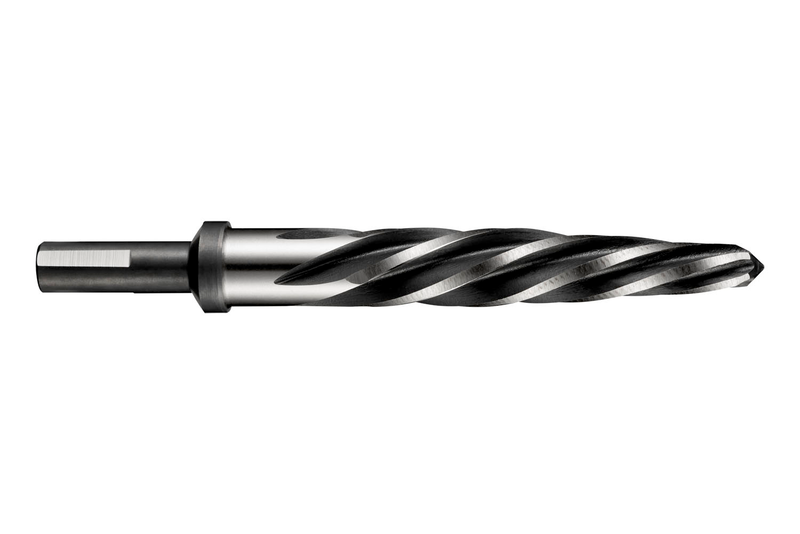

Alésoir automobile avec des cannelures hélicoïdales lentes à gauche et une queue réduite à trois pans, diamètre nominal 0,6250" (5/8") avec une longueur totale de 6.3/8", une longueur de cannelure de 4.1/4" et un cône d'entrée de 3.3/16", conforme à la norme ANSI pour l'élargissement de trous ou la correction de désalignements, HSS avec finition bronze trempé à la vapeur pour l'usinage de l'acier à usinage libre et de l'acier au carbone ordinaire, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B1225/8
GradeST/Bronze
Product Number5986463
Product FamilyB122

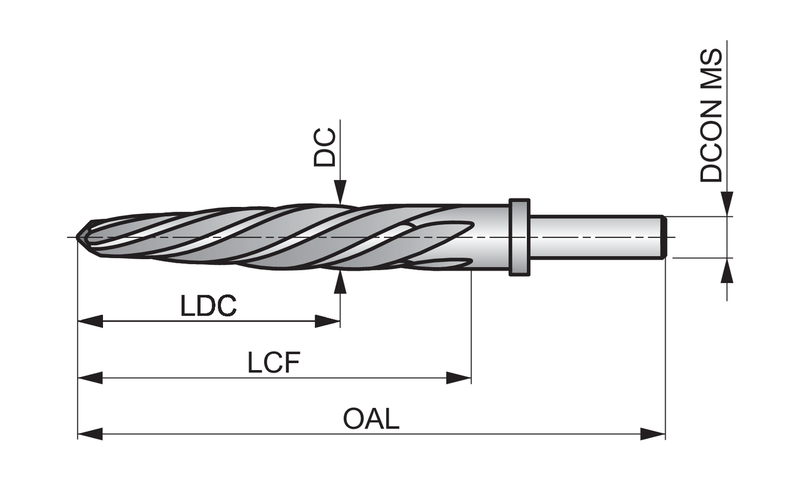

Dimensions
Cutting Diameter — in (DC)0.625"
Cutting Diameter — mm (DC)15.88 mm
Cutting Diameter — Fractional5/8
Overall Length — in (OAL)6.375"
Overall Length — mm (OAL)161.93 mm
Flute Length — in (LCF)4.25"
Flute Length — mm (LCF)107.95 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)5
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number252413
EAN7320760252413
File Type Download
B1225/8 — Line Drawing PDF Download
