B1227/8
B1227/8
B1227/8

B1227/8

UGC DOR5986467
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$227.37 CAD - $227.37 CAD
$227.37 CAD
$227.37 CAD - $227.37 CAD
$227.37 CAD

Vendu en lots de : 1

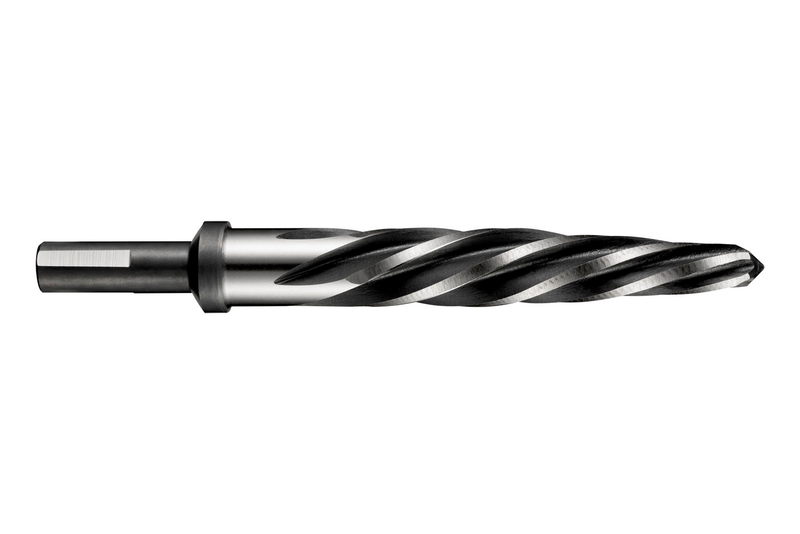

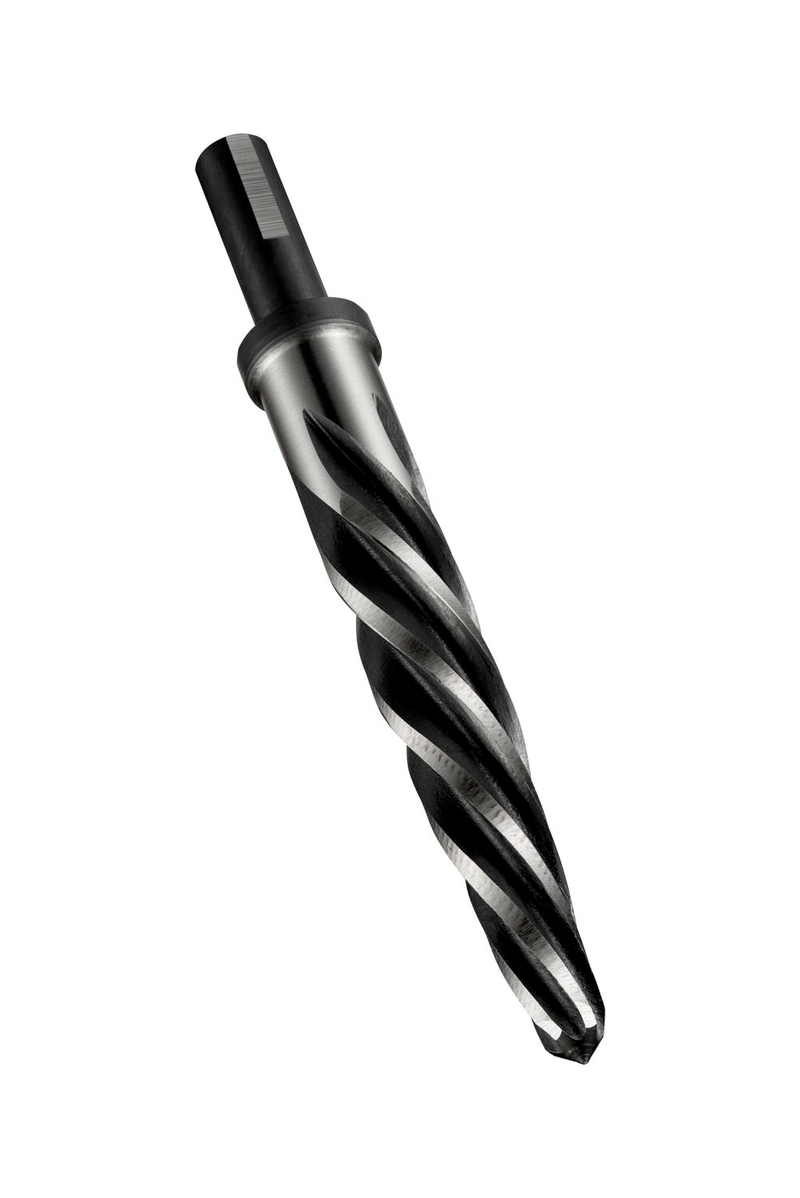

Alésoir automobile avec des cannelures hélicoïdales lentes à gauche et une queue réduite Tri-plats, diamètre nominal 0,8750" (7/8") avec une longueur totale de 6.7/8", une longueur de cannelure de 4.1/2" et un cône de départ de 3.7/8", selon la norme ANSI pour l'élargissement de trous ou la correction de désalignements, HSS avec finition bronze trempé à la vapeur pour l'usinage d'acier à coupe libre et d'acier au carbone ordinaire, de cuivre ou d'alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B1227/8
GradeST/Bronze
Product Number5986467
Product FamilyB122
Dimensions
Cutting Diameter — in (DC)0.875"
Cutting Diameter — mm (DC)22.23 mm
Cutting Diameter — Fractional7/8
Overall Length — in (OAL)6.875"
Overall Length — mm (OAL)174.63 mm
Flute Length — in (LCF)4.5"
Flute Length — mm (LCF)114.3 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)5
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number252420
EAN7320760252420
File Type Download

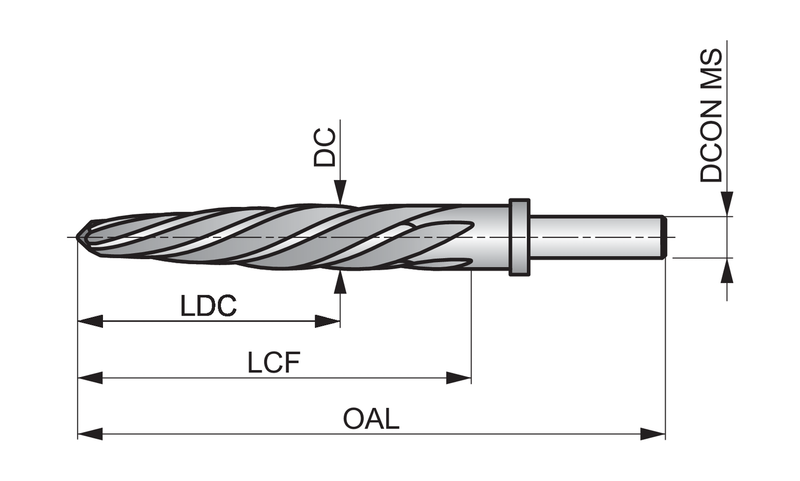

B1227/8 — Line Drawing PDF Download
