B1229/16
B1229/16
B1229/16

B1229/16

UGC DOR5986471
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$155.20 CAD - $155.20 CAD
$155.20 CAD
$155.20 CAD - $155.20 CAD
$155.20 CAD

Vendu en lots de : 1

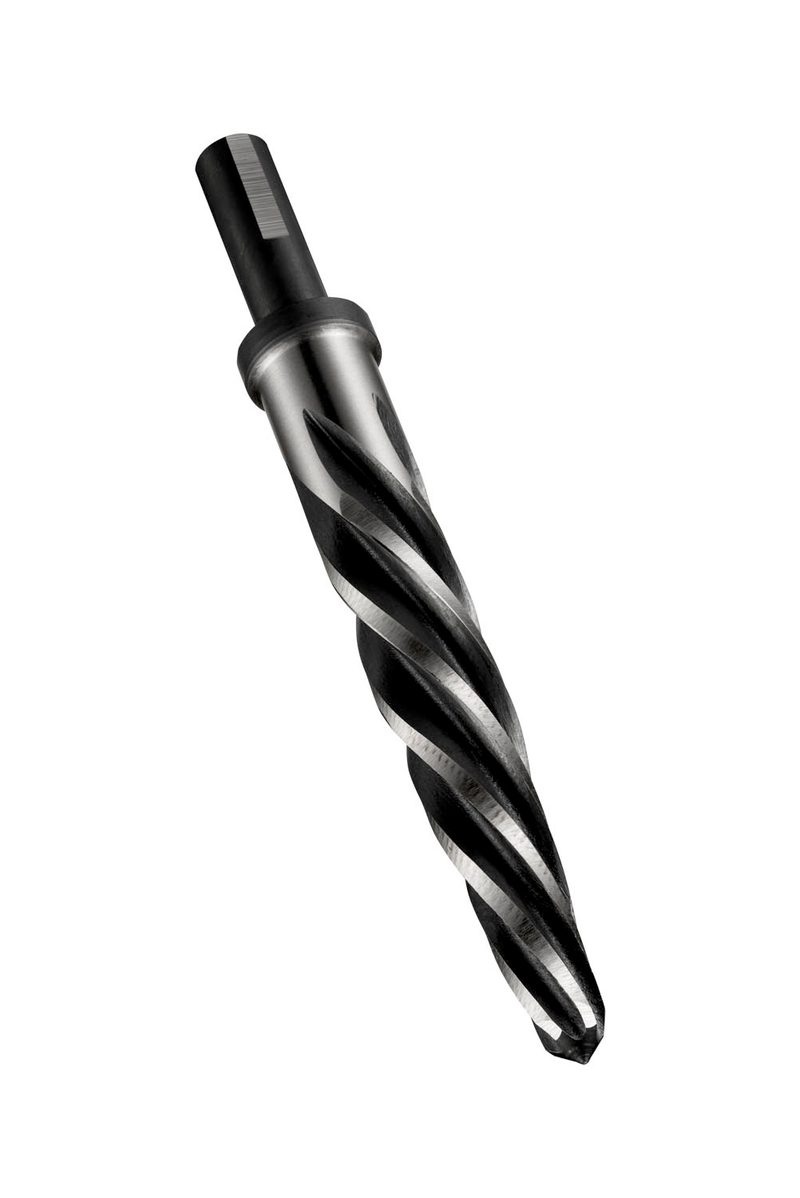

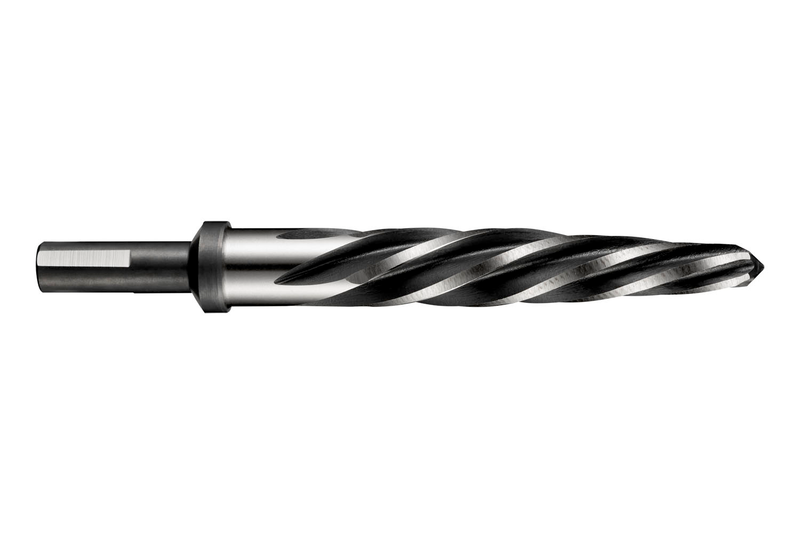

Alésoir de carrossier avec des goujures hélicoïdales lentes à gauche et une queue réduite Tri-flats, diamètre nominal 0,5625" (9/16") avec une longueur totale de 5,7/8", une longueur de goujure de 3,3/4" et un cône de départ de 3,3/16", conforme à la norme ANSI pour l'élargissement de trous ou la correction de désalignements, HSS avec finition bronze trempé à la vapeur pour l'usinage des aciers de décolletage et des aciers au carbone non alliés, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B1229/16
GradeST/Bronze
Product Number5986471
Product FamilyB122
Dimensions
Cutting Diameter — in (DC)0.5625"
Cutting Diameter — mm (DC)14.29 mm
Cutting Diameter — Fractional16/9
Overall Length — in (OAL)5.875"
Overall Length — mm (OAL)149.23 mm
Flute Length — in (LCF)3.75"
Flute Length — mm (LCF)95.25 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)5
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number252437
EAN7320760252437
File Type Download

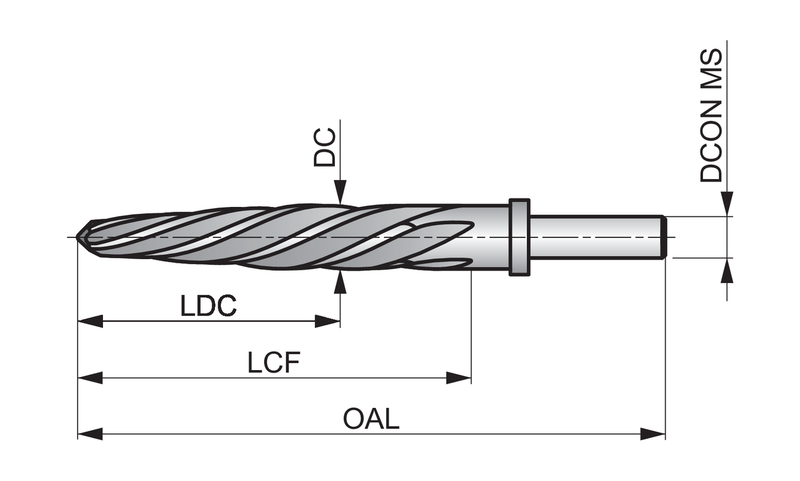

B1229/16 — Line Drawing PDF Download
