B9012.0
B9012.0
B9012.0

B9012.0

UGC DOR5986481
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$58.81 CAD - $58.81 CAD
$58.81 CAD
$58.81 CAD - $58.81 CAD
$58.81 CAD

Vendu en lots de : 1

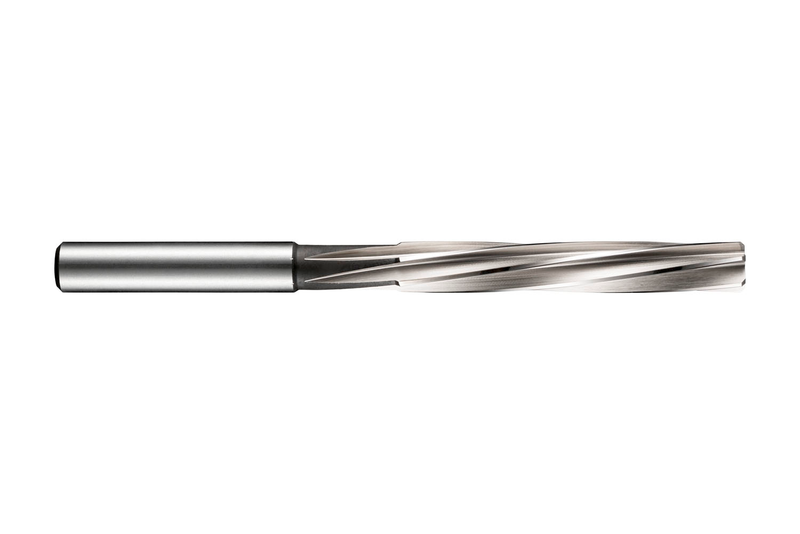

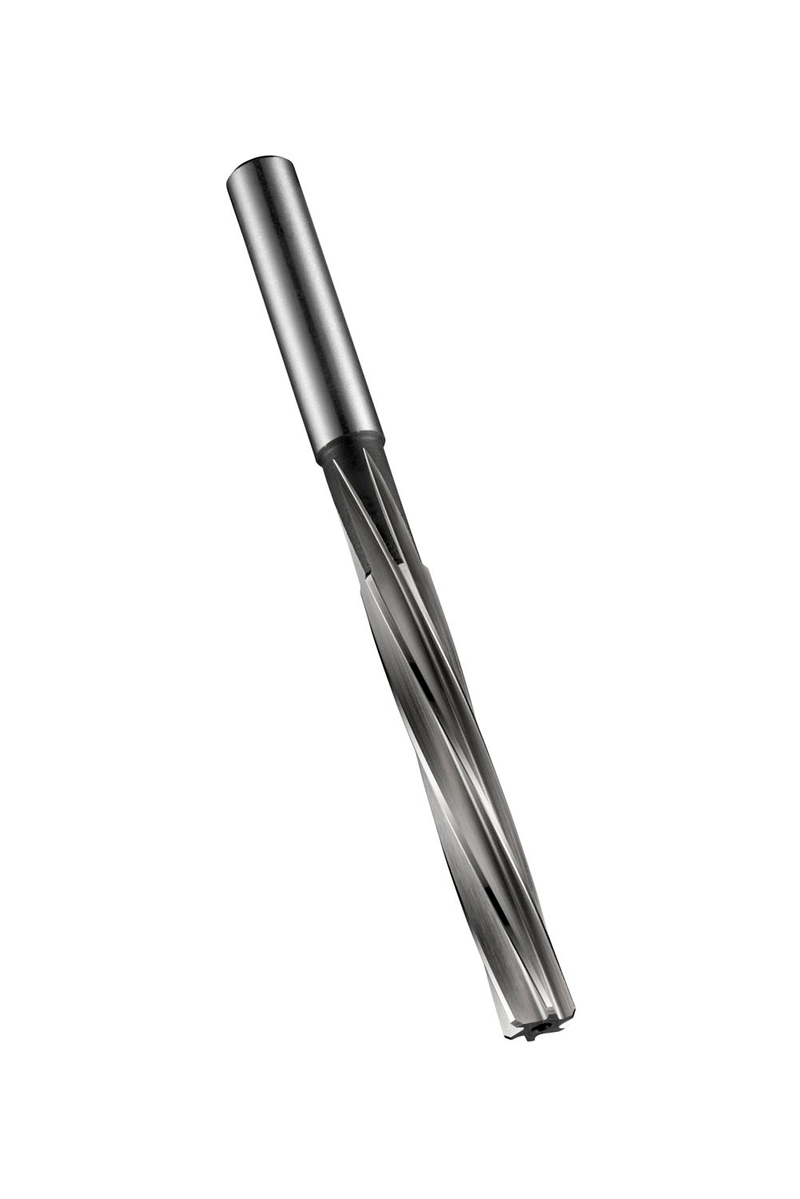

Alésoir machine à spirale lente à gauche et queue cylindrique, diamètre 2,00 mm avec une longueur totale de 50 mm et une longueur de coupe de 25 mm, conforme à la norme BS 328 pour l'alésage de trous précis à la tolérance H7, en HSS-E au cobalt avec finition brillante trempée à la vapeur pour l'usinage des aciers à usinage facile, aciers au carbone non alliés et alliés, fontes grises et malléables, aluminium corroyé et moulé et cuivre ou alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B9012.0
GradeVif/ST
Product Number5986481
Product FamilyB901
Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Flute Length — mm (LCF)25.0 mm
Connection Dia. — in (DCON)0.0787"
Connection Dia. — mm (DCON)2.0 mm
Number of Flutes (NOF)4
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardBS 328
Reference Numbers
EDP Number180822
EAN7320760180822
File Type Download
B9012.0 — Line Drawing PDF Download
