UGC DOR5986532
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$210.07 CAD - $210.07 CAD
$210.07 CAD
$210.07 CAD - $210.07 CAD
$210.07 CAD

Vendu en lots de : 1

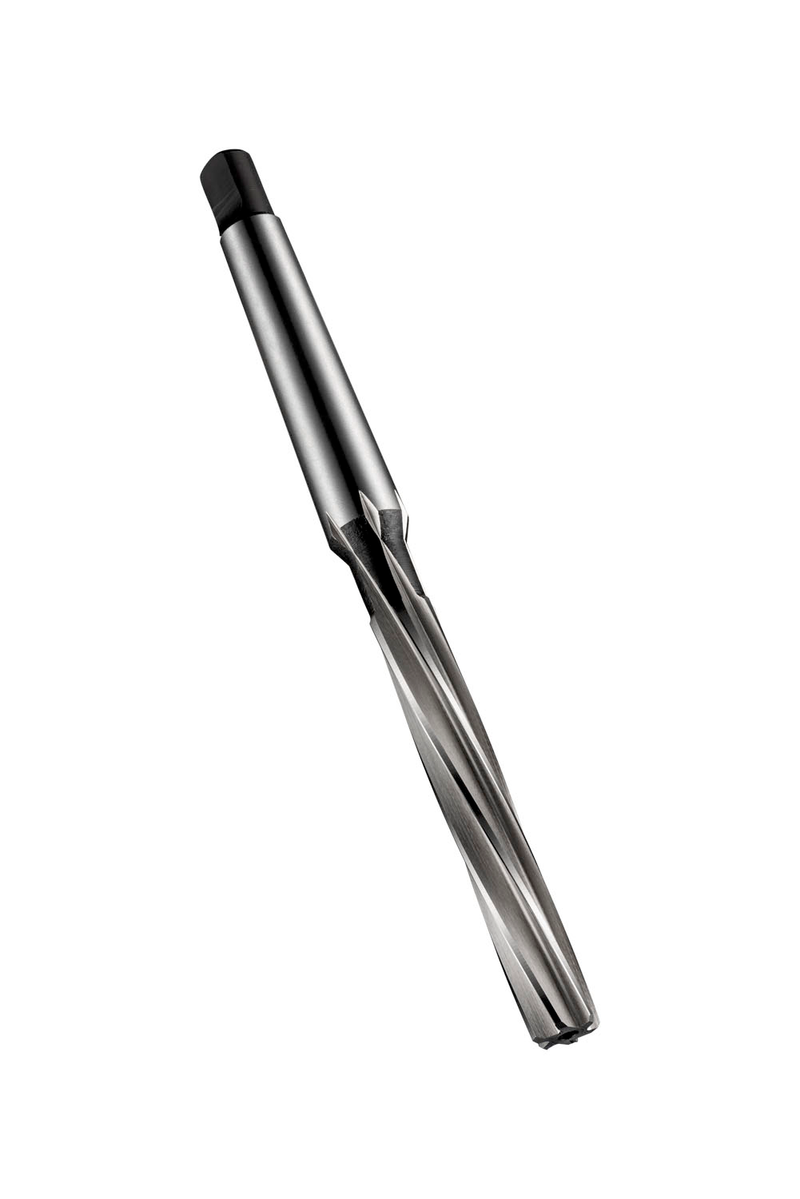

Alésoir machine à spirale lente à gauche et à queue cône morse, diamètre 17,00 mm, longueur totale 187 mm et longueur utile 87 mm, conforme à la norme BS 328 pour l'alésage de trous de précision de tolérance H7, en HSS-E cobalt avec finition brillante trempée à la vapeur pour l'usinage des aciers de décolletage, aciers au carbone et alliés, fontes grises et malléables, aluminium corroyé et moulé, cuivre ou alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B10117.0
GradeLumineux/ST
Product Number5986532
Product FamilyB101
Dimensions
Cutting Diameter — in (DC)0.6693"
Cutting Diameter — mm (DC)17.0 mm
Overall Length — in (OAL)7.3622"
Overall Length — mm (OAL)187.0 mm
Flute Length — mm (LCF)87.0 mm
Number of Flutes (NOF)8
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardBS 328
Reference Numbers
EDP Number181843
EAN7320760181843
File Type Download

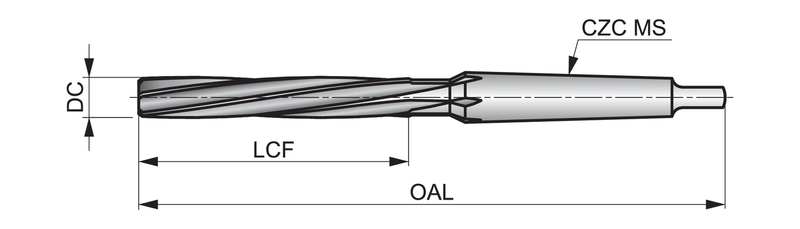

B10117.0 — Line Drawing PDF Download
