B9017/16
B9017/16
B9017/16

B9017/16

UGC DOR5986537
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$83.04 CAD - $83.04 CAD
$83.04 CAD
$83.04 CAD - $83.04 CAD
$83.04 CAD

Vendu en lots de : 1

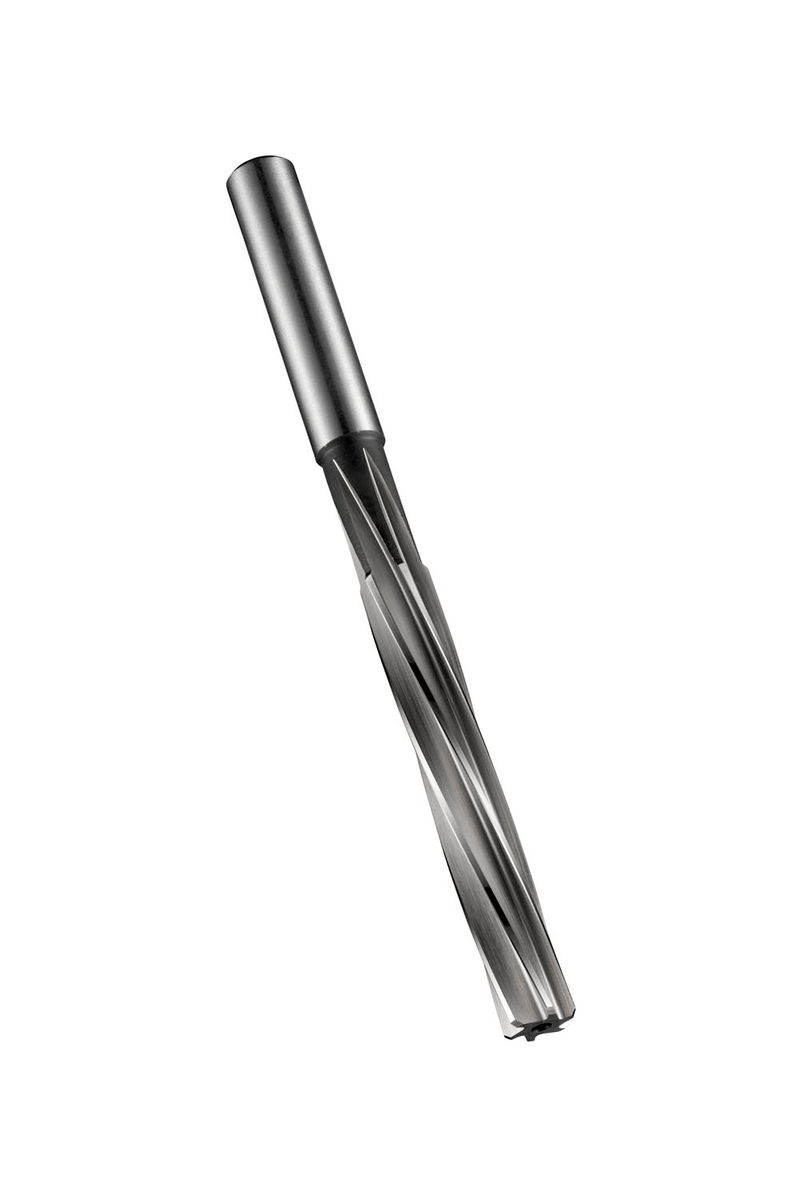

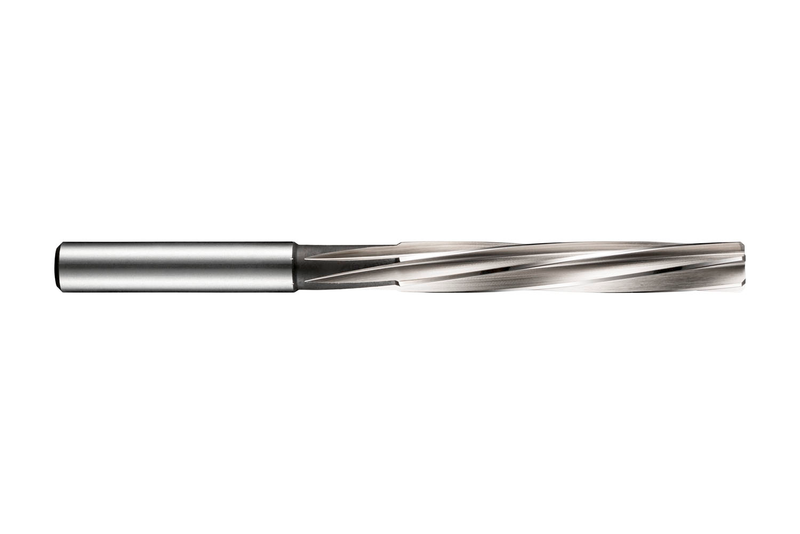

Alésoir machine à spirale lente à gauche et à queue cylindrique, de diamètre 11,11 mm (7/16") avec une longueur totale de 142 mm et une longueur de coupe de 71 mm, selon la norme BS 328 pour l'alé-sage de trous précis à la tolérance H7, en HSS-E à base de cobalt avec finition brillante étuvée pour l'usinage des aciers de décolletage, aciers au carbone et aciers alliés, fontes grises et malléables, aluminium corroyé et moulé et cuivre ou alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B9017/16
GradeLuminosité/TS
Product Number5986537
Product FamilyB901
Dimensions
Cutting Diameter — in (DC)0.4375"
Cutting Diameter — mm (DC)11.11 mm
Cutting Diameter — Fractional16/7
Overall Length — in (OAL)5.5906"
Overall Length — mm (OAL)142.0 mm
Flute Length — mm (LCF)71.0 mm
Connection Dia. — in (DCON)0.4374"
Connection Dia. — mm (DCON)11.11 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardBS 328
Reference Numbers
EDP Number181119
EAN7320760181119
File Type Download
B9017/16 — Line Drawing PDF Download
