B10119.0
B10119.0
B10119.0
B10119.0

B10119.0

UGC DOR5986541
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$231.33 CAD - $231.33 CAD
$231.33 CAD
$231.33 CAD - $231.33 CAD
$231.33 CAD

Vendu en lots de : 1

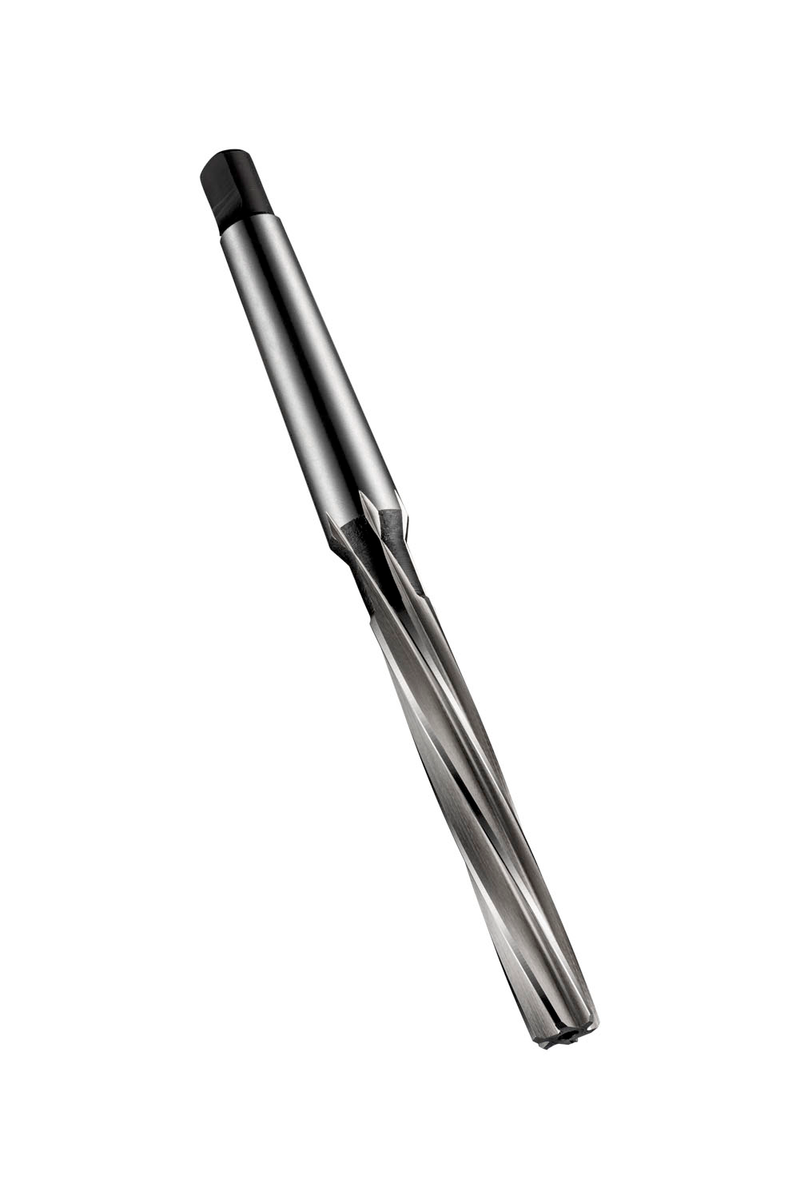

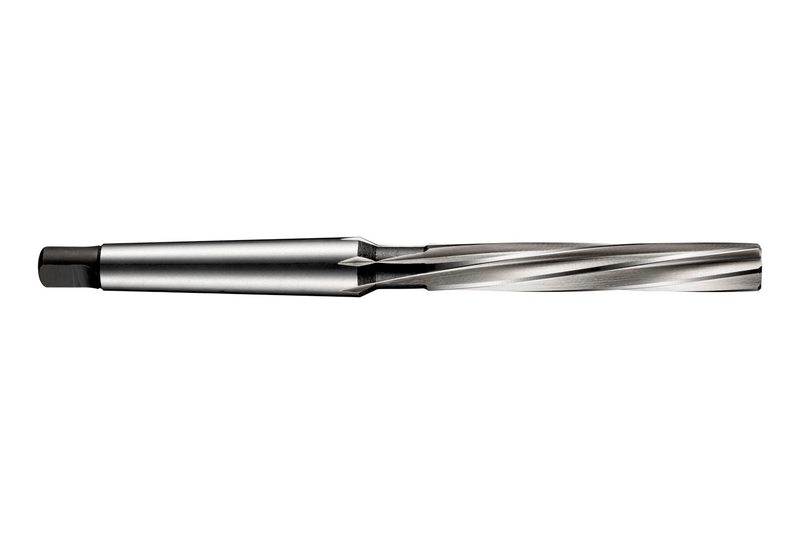

Alésoir machine à spirale lente à gauche et à queue conique Morse, diamètre 19,00 mm, longueur totale 193 mm et longueur de coupe 93 mm, selon la norme BS 328 pour l'usinage de trous précis avec une tolérance H7, en HSS-E à base de cobalt avec finition brillante-trempée à la vapeur pour l'usinage des aciers de décolletage, aciers au carbone non alliés et alliés, fontes grises et malléables, aluminium corroyé et moulé et cuivre ou alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B10119.0
GradeBrillant/ST
Product Number5986541
Product FamilyB101
Dimensions
Cutting Diameter — in (DC)0.748"
Cutting Diameter — mm (DC)19.0 mm
Overall Length — in (OAL)7.5984"
Overall Length — mm (OAL)193.0 mm
Flute Length — mm (LCF)93.0 mm

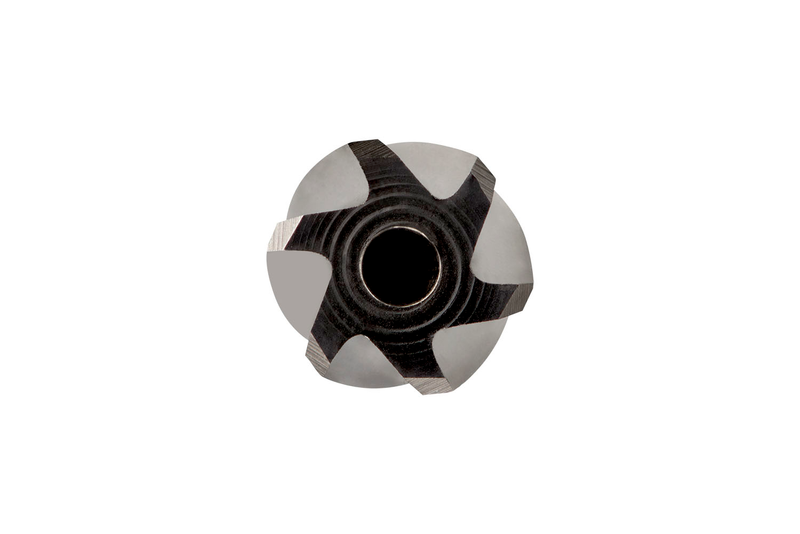

Number of Flutes (NOF)8
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardBS 328
Reference Numbers
EDP Number181867
EAN7320760181867
File Type Download

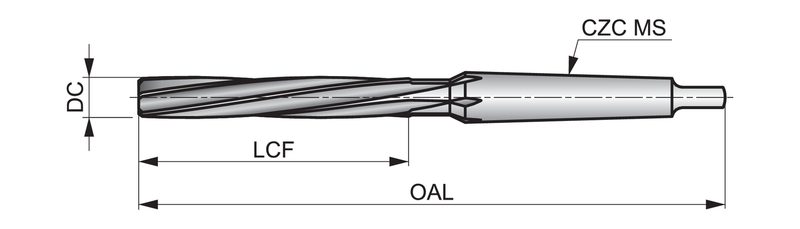

B10119.0 — Line Drawing PDF Download
