B12125.0
B12125.0
B12125.0

B12125.0

UGC DOR5986557
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$371.70 CAD - $371.70 CAD
$371.70 CAD
$371.70 CAD - $371.70 CAD
$371.70 CAD

Vendu en lots de : 1

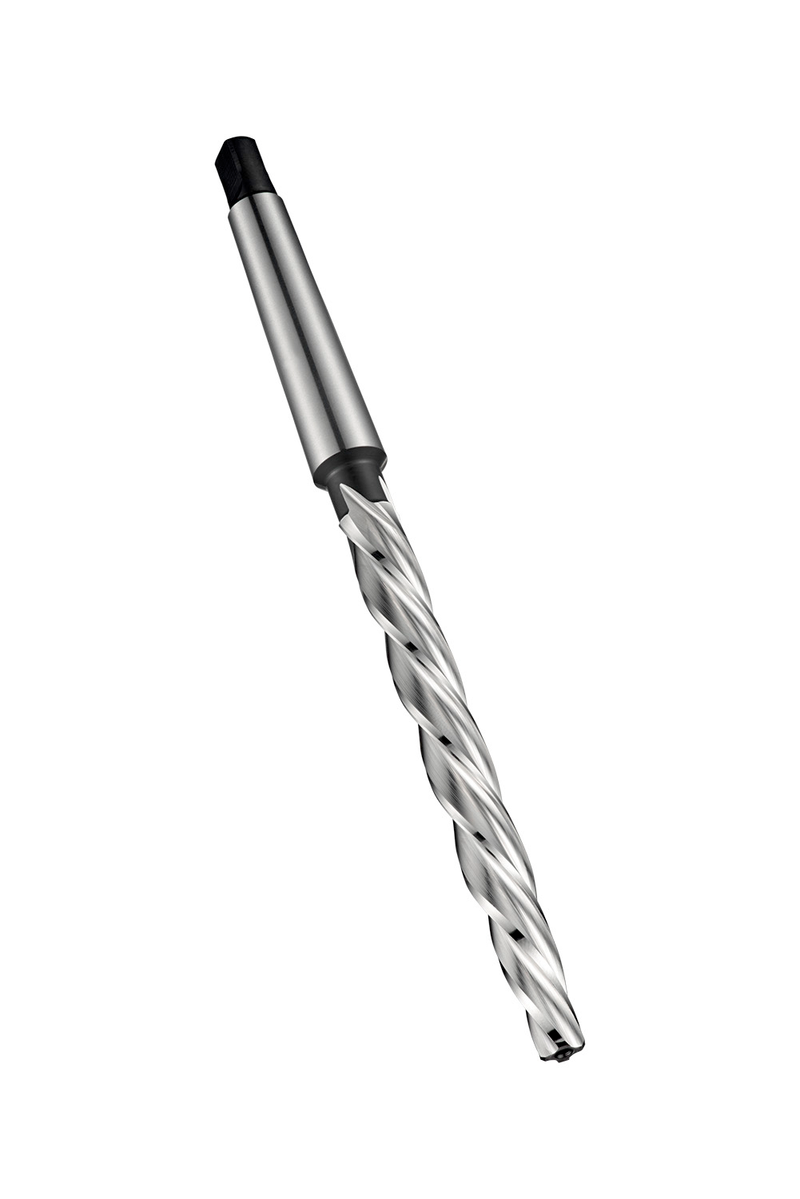

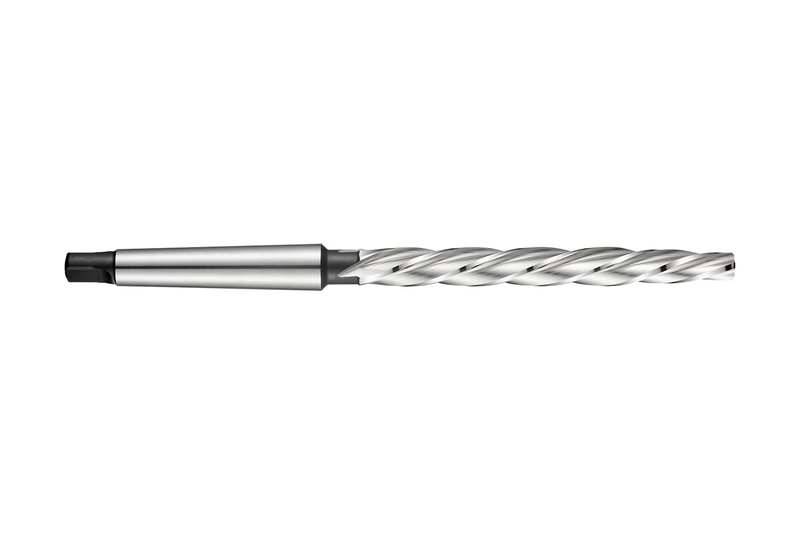

Alésoir de charpentier à spirale rapide à gauche et queue conique Morse, diamètre nominal de 25,00 mm, longueur totale de 296 mm, longueur de coupe de 180 mm et chanfrein d'entrée de 72 mm (1:10), selon la norme DIN 311, pour corriger les trous mal alignés dans les structures de bâtiments en acier avec une tolérance k11, en HSS avec finition brillante trempée à la vapeur pour l'usinage des aciers de décolletage, aciers au carbone et alliés, fontes grises et malléables, aluminium et cuivre ou alliages de cuivre forgés et coulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B12125.0
GradeLumineux/TC
Product Number5986557
Product FamilyB121
Dimensions
Cutting Diameter — in (DC)0.9843"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)11.6535"
Overall Length — mm (OAL)296.0 mm
Flute Length — mm (LCF)180.0 mm
Number of Flutes (NOF)4
Tool Information
ShankQueue de cône Morse
Direction of ToolD'accord
StandardDIN 311
Reference Numbers
EDP Number49174
EAN7320760049174
File Type Download

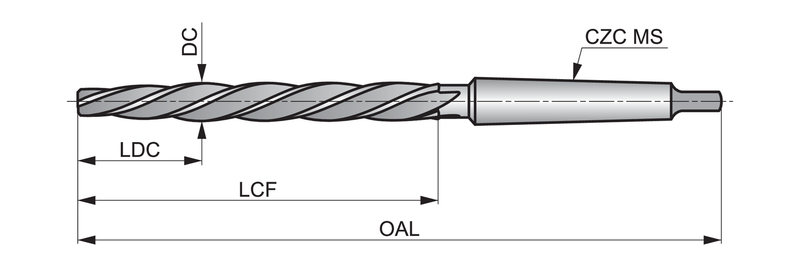

B12125.0 — Line Drawing PDF Download
