UGC DOR5986576
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$361.81 CAD - $361.81 CAD
$361.81 CAD
$361.81 CAD - $361.81 CAD
$361.81 CAD

Vendu en lots de : 1

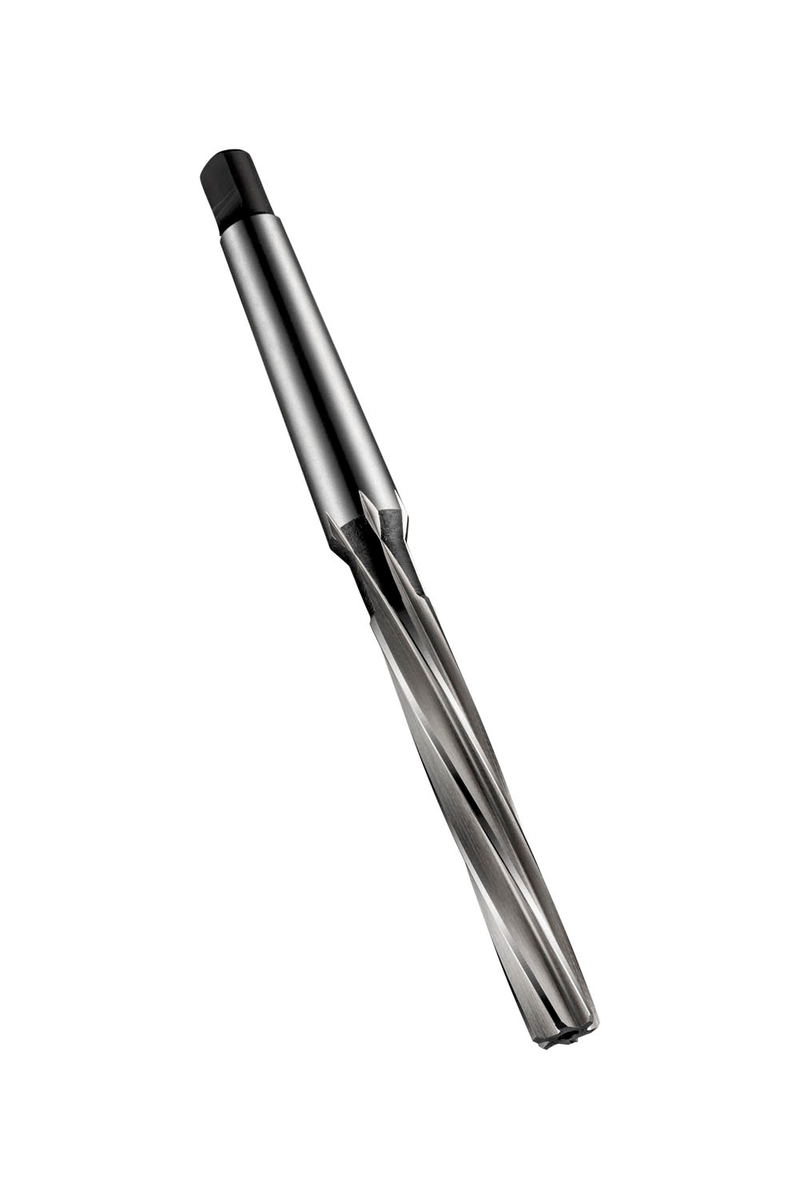

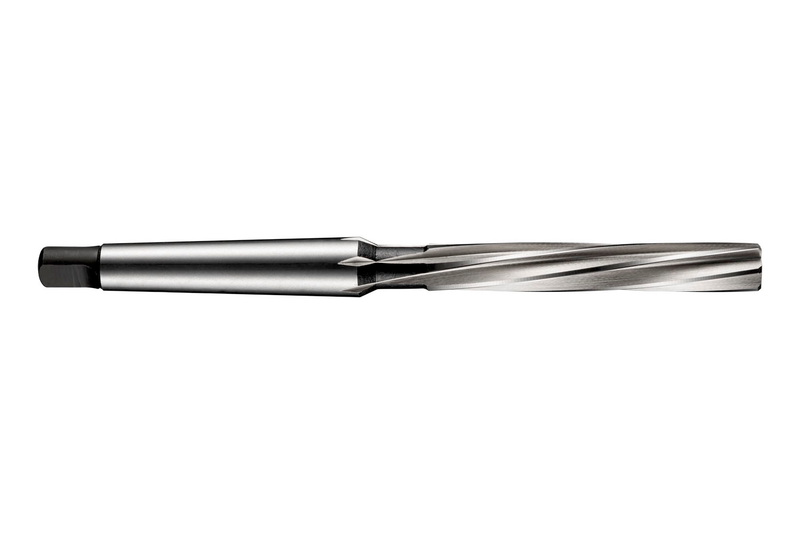

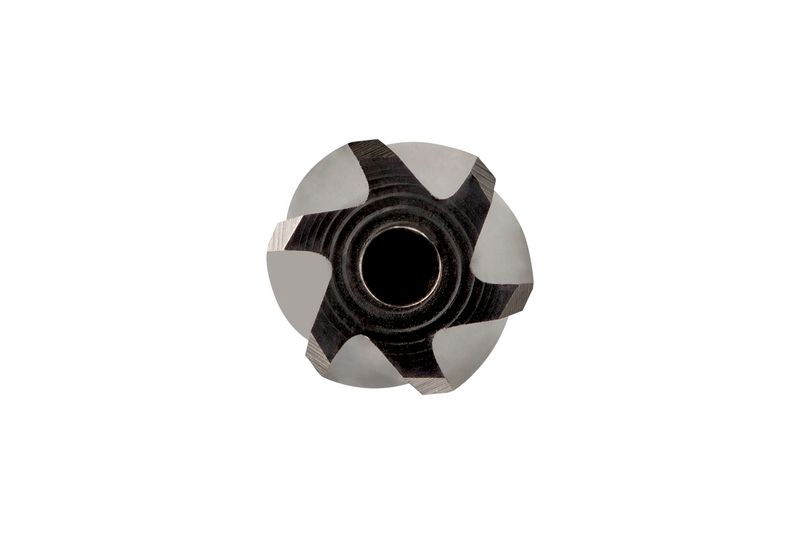

Alésoir machine à spirale lente à gauche et à queue cône morse, diamètre 25,00 mm avec une longueur totale de 242 mm et une longueur de coupe de 115 mm, selon la norme BS 328 pour l'aléasage de trous de précision de tolérance H7, en HSS-E cobalt avec finition brillante trempée à la vapeur pour l'usinage des aciers de décolletage, aciers au carbone non alliés et alliés, fontes grises et malléables, aluminium corroyé et moulé et cuivre ou alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B10125.0
GradeVif/CT
Product Number5986576
Product FamilyB101

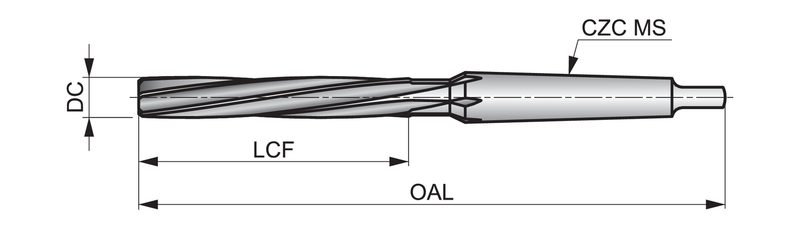

Dimensions
Cutting Diameter — in (DC)0.9843"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)9.5276"
Overall Length — mm (OAL)242.0 mm
Flute Length — mm (LCF)115.0 mm
Number of Flutes (NOF)10
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardBS 328
Reference Numbers
EDP Number181928
EAN7320760181928
File Type Download
B10125.0 — Line Drawing PDF Download
