UGC DOR5986601
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$69.20 CAD - $69.20 CAD
$69.20 CAD
$69.20 CAD - $69.20 CAD
$69.20 CAD

Vendu en lots de : 1

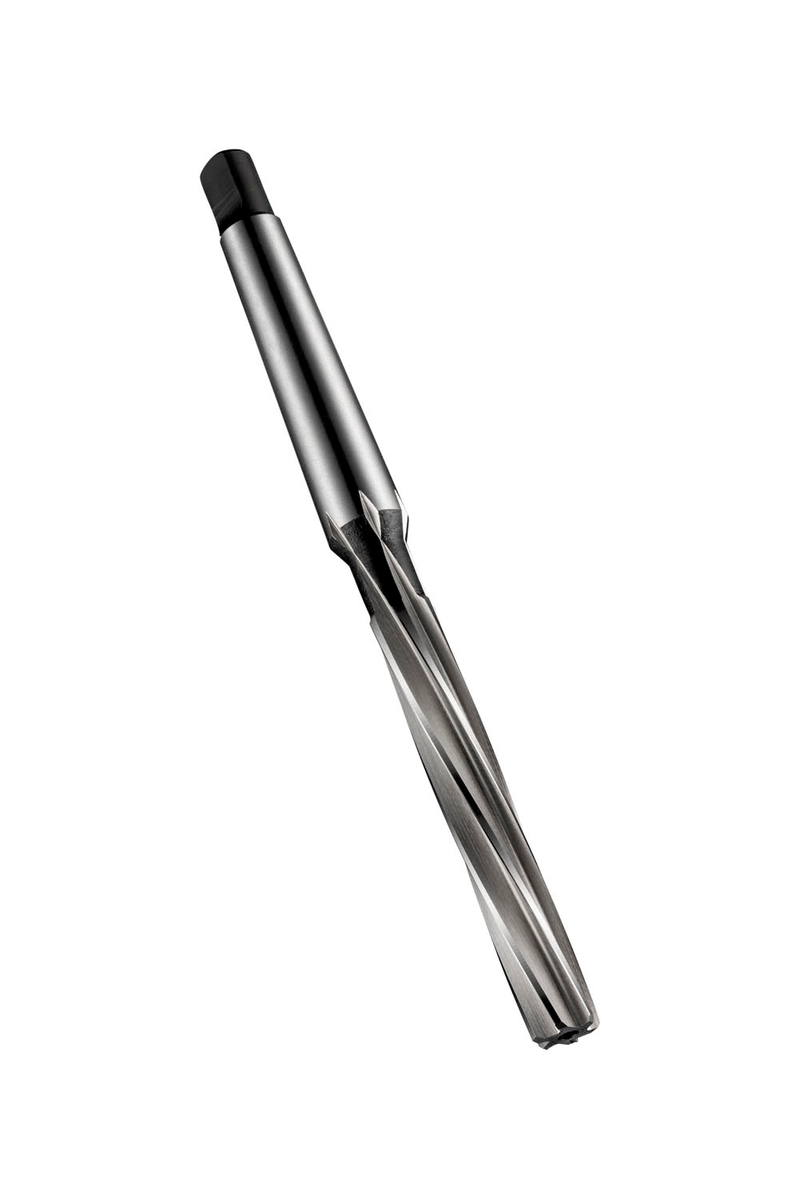

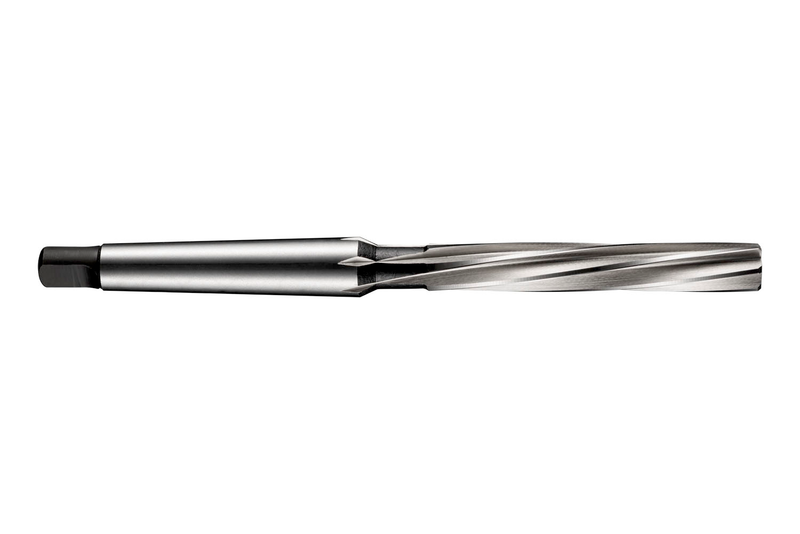

Alésoir machine à spirale lente main gauche et cône Morse, diamètre 4,76 mm (3/16") avec une longueur totale de 124 mm et une longueur de coupe de 44 mm, selon la norme BS 328 pour l'alésage de trous précis à tolérance H7, en HSS-E à base de cobalt avec finition brillante trempée à la vapeur pour l'usinage des aciers de décolletage, aciers au carbone non alliés et alliés, fontes grises et malléables, aluminium corroyé et moulé et cuivre ou alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B1013/16
GradeLumineux/ST
Product Number5986601
Product FamilyB101
Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)4.8819"
Overall Length — mm (OAL)124.0 mm
Flute Length — mm (LCF)44.0 mm

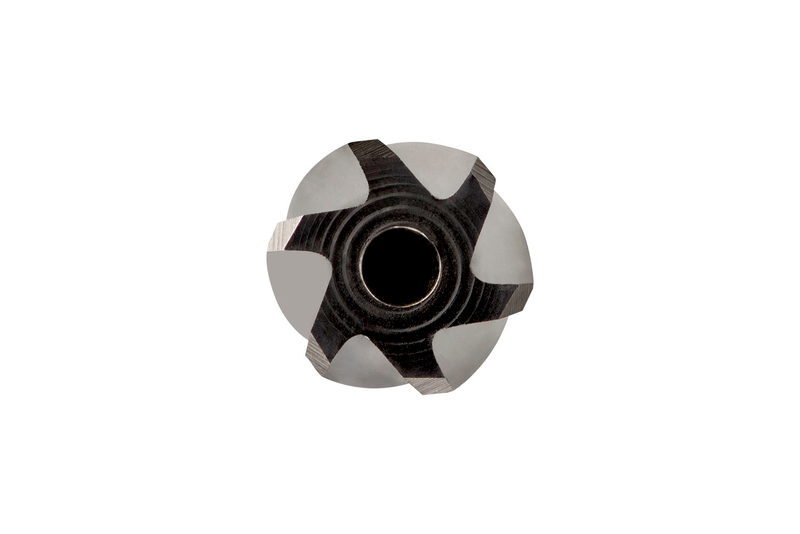

Number of Flutes (NOF)6
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardBS 328
Reference Numbers
EDP Number181164
EAN7320760181164
File Type Download

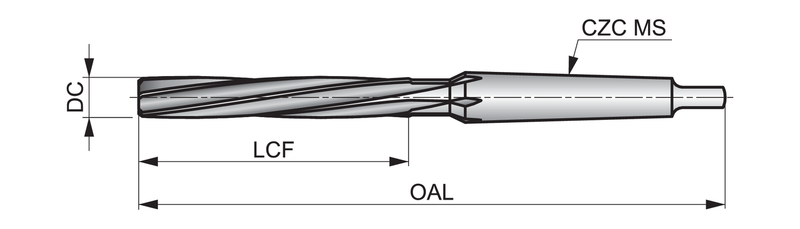

B1013/16 — Line Drawing PDF Download
