UGC DOR5986604
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$114.67 CAD - $114.67 CAD
$114.67 CAD
$114.67 CAD - $114.67 CAD
$114.67 CAD

Vendu en lots de : 1

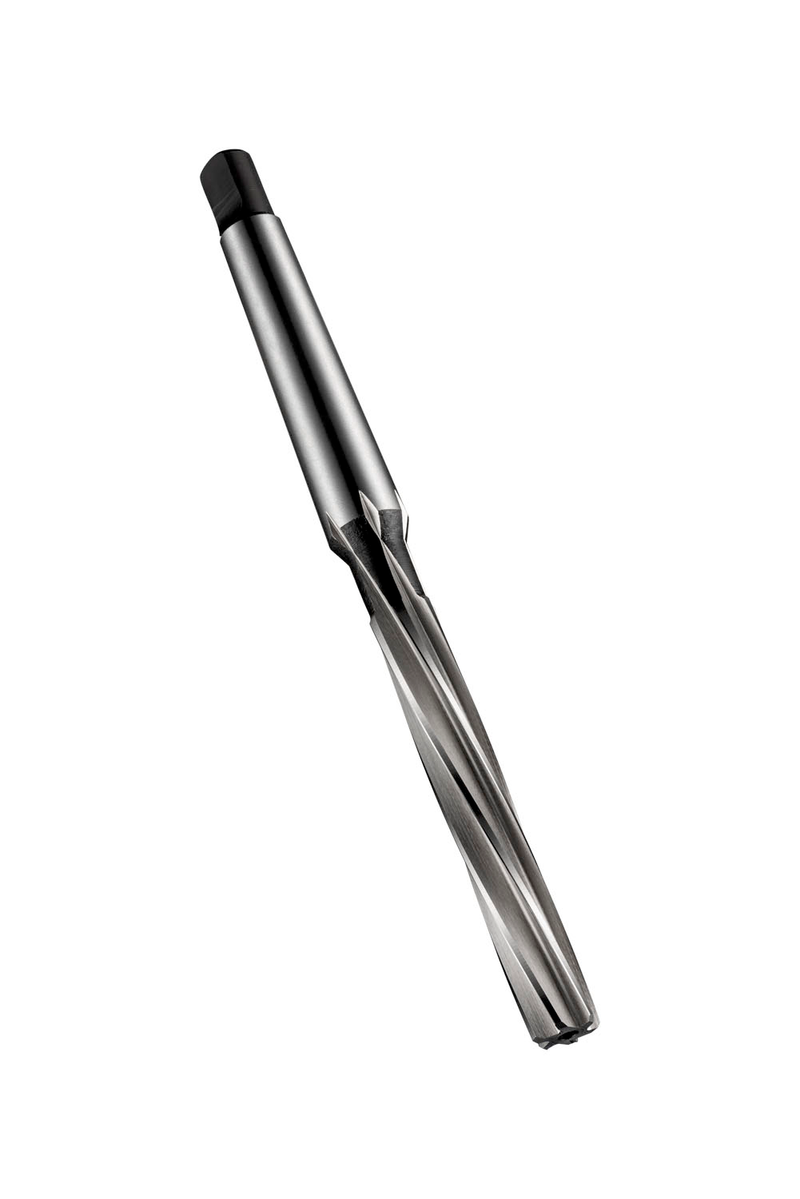

Alésoir machine à spirale lente à gauche et queue cône Morse, diamètre 19,05 mm (3/4") avec une longueur totale de 200 mm et une longueur de coupe de 100 mm, selon la norme BS 328 pour l'aléser des trous précis à la tolérance H7, HSS-E au cobalt avec finition brillante trempée à la vapeur pour l'usinage des aciers de décolletage, des aciers au carbone et alliés non alliés, des fontes grises et malléables, des aluminiums forgés et coulés et des cuivres ou alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B1013/4
GradeLumineux/ST
Product Number5986604
Product FamilyB101
Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.05 mm
Cutting Diameter — Fractional3/4
Overall Length — in (OAL)7.874"
Overall Length — mm (OAL)200.0 mm
Flute Length — mm (LCF)100.0 mm
Number of Flutes (NOF)8
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardBS 328
Reference Numbers
EDP Number181348
EAN7320760181348
File Type Download

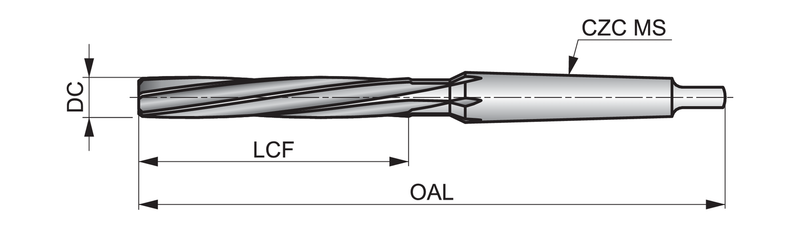

B1013/4 — Line Drawing PDF Download
