B10130.0
B10130.0
B10130.0
B10130.0

B10130.0

UGC DOR5986610
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$494.79 CAD - $494.79 CAD
$494.79 CAD
$494.79 CAD - $494.79 CAD
$494.79 CAD

Vendu en lots de : 1

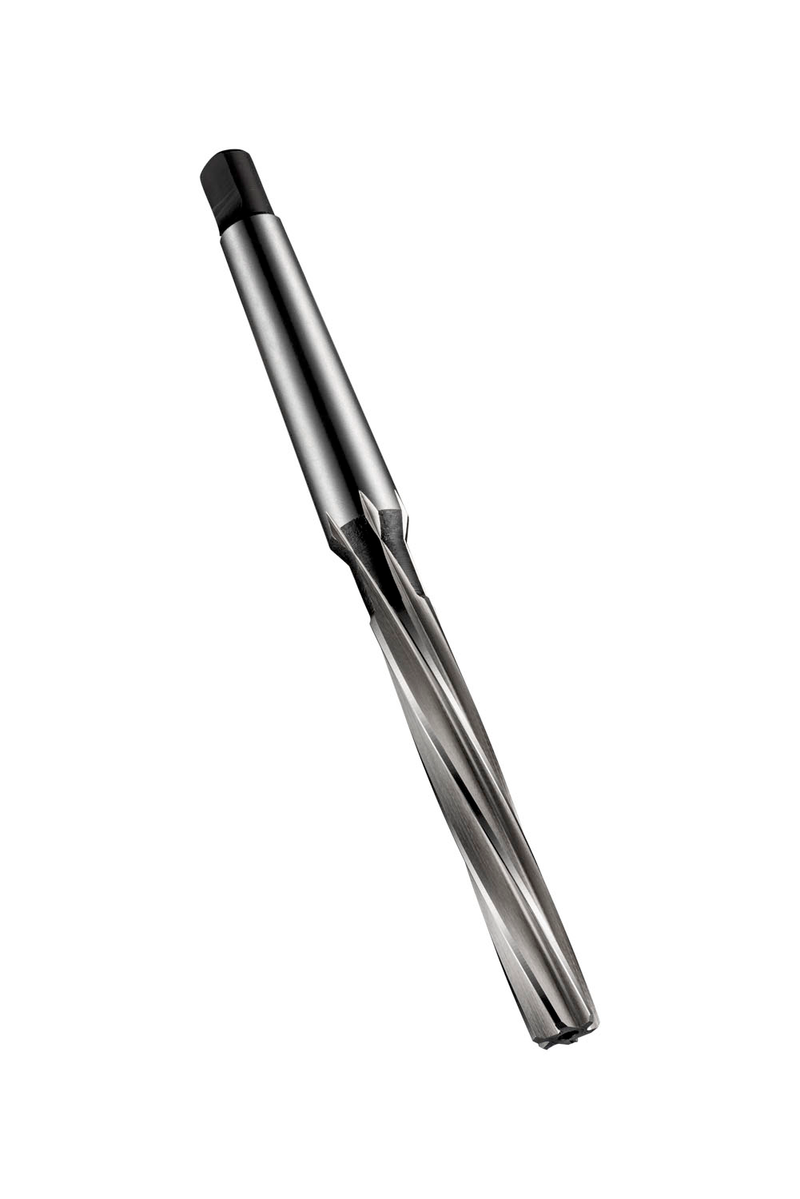

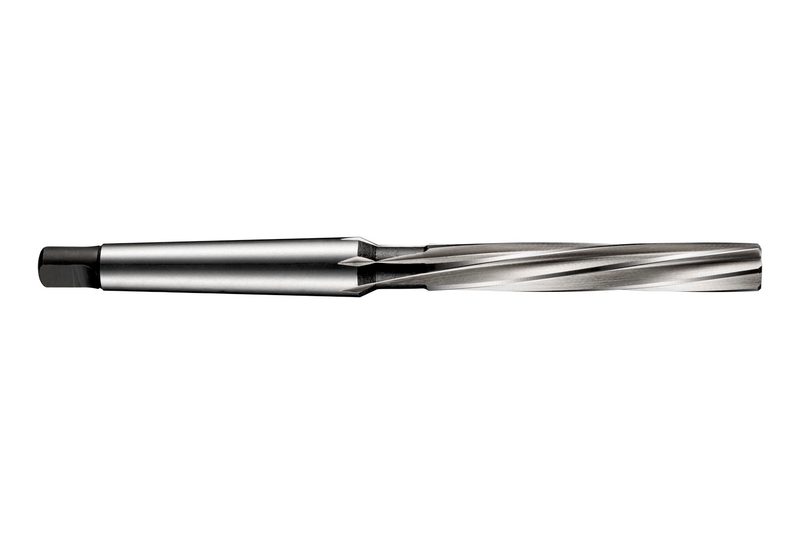

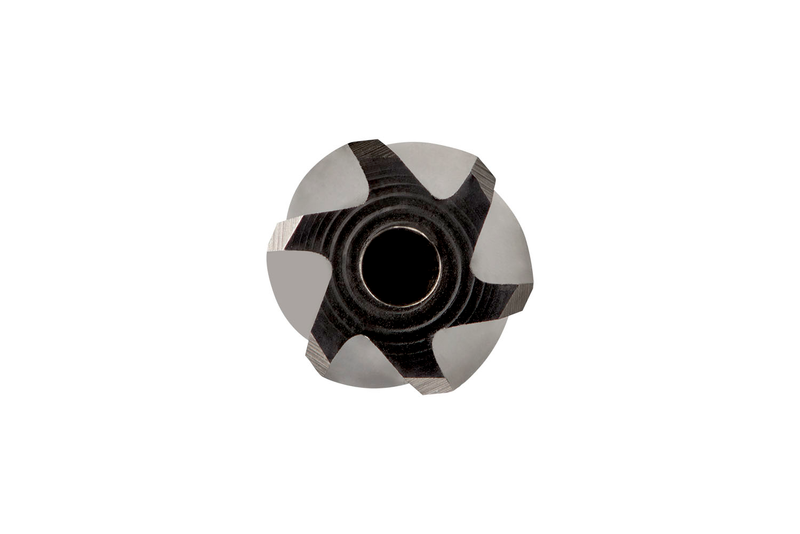

Alésoir machine à spirale lente à gauche et queue cône morse, diamètre 30,00mm avec une longueur totale de 251mm et une longueur de coupe de 124mm, selon la norme BS 328 pour l'aléser des trous précis à la tolérance H7, en HSS-E à base de cobalt avec une finition brillante-revenu vapeur pour l'usinage des aciers de décolletage, aciers au carbone non alliés et alliés, fontes grises et malléables, aluminium et cuivre ou alliages de cuivre forgés et moulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B10130.0
GradeVif/CT
Product Number5986610
Product FamilyB101

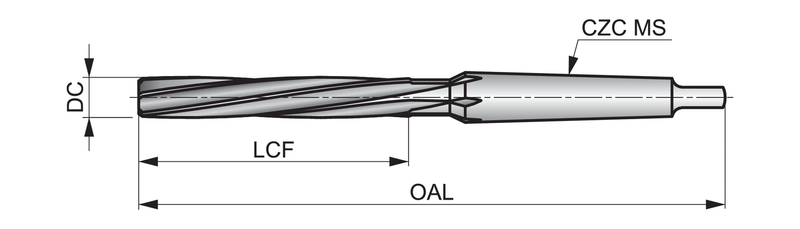

Dimensions
Cutting Diameter — in (DC)1.1811"
Cutting Diameter — mm (DC)30.0 mm
Overall Length — in (OAL)9.8819"
Overall Length — mm (OAL)251.0 mm
Flute Length — mm (LCF)124.0 mm
Number of Flutes (NOF)10
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardBS 328
Reference Numbers
EDP Number181973
EAN7320760181973
File Type Download
B10130.0 — Line Drawing PDF Download
