B18011.0
B18011.0
B18011.0

B18011.0

UGC DOR5986619
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$87.49 CAD - $87.49 CAD
$87.49 CAD
$87.49 CAD - $87.49 CAD
$87.49 CAD

Vendu en lots de : 1

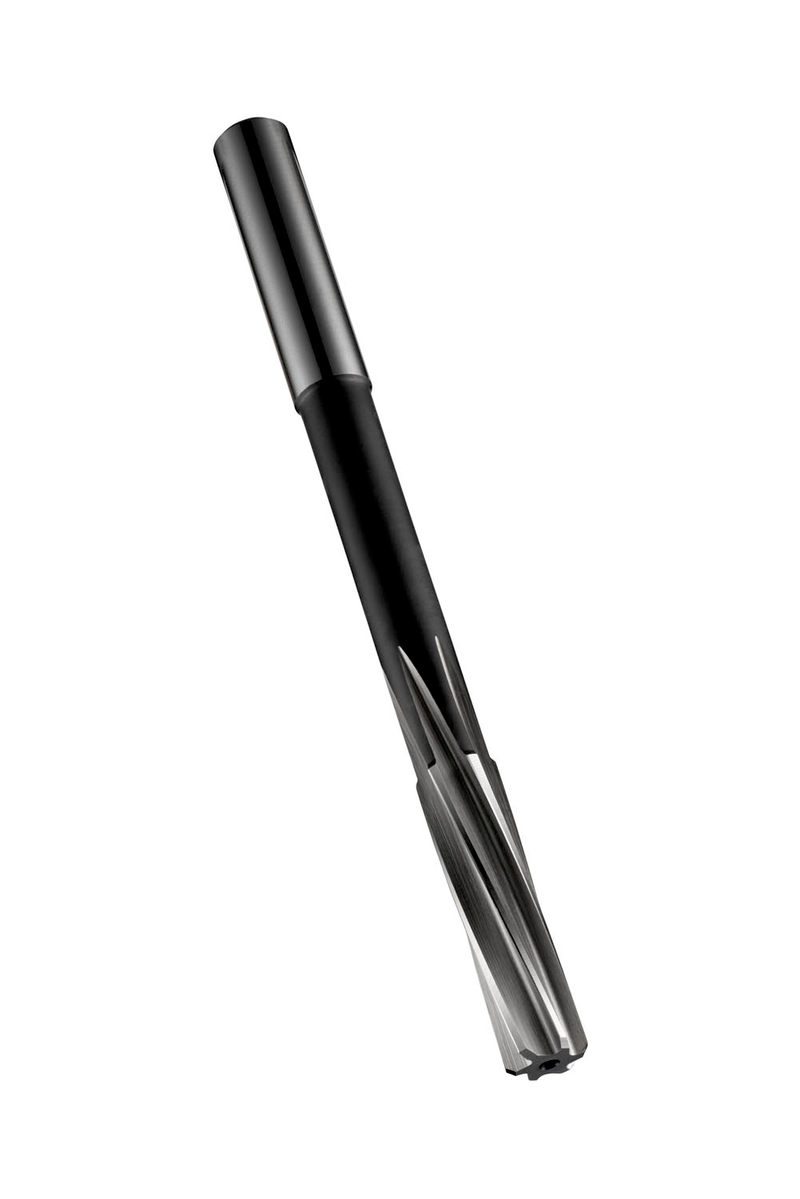

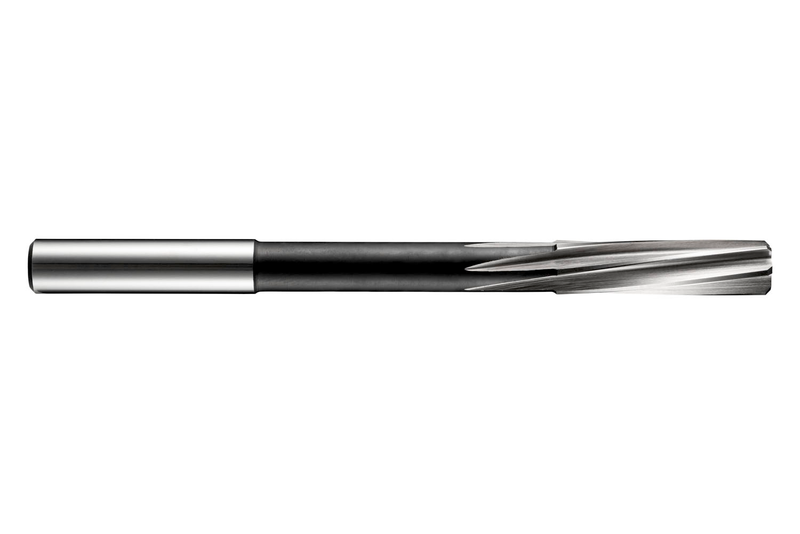

Alésoir machine avec goujures hélicoïdales lentes à gauche et queue cylindrique, diamètre 11,00 mm, longueur totale 142 mm, longueur des goujures 41 mm et portée 96 mm avec dégagement de col, selon la norme DIN 212 pour l'alésage de trous précis à la tolérance H7, en HSS-E à base de cobalt avec finition brillante pour l'usinage des aciers de décolletage, des aciers au carbone non alliés et alliés, de la fonte grise et malléable, de l'aluminium forgé et moulé, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B18011.0
GradeLumineux
Product Number5986619
Product FamilyB180

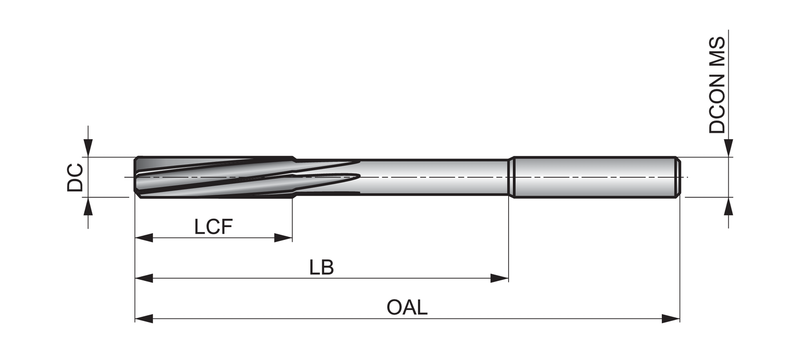

Dimensions
Cutting Diameter — in (DC)0.4331"
Cutting Diameter — mm (DC)11.0 mm
Overall Length — in (OAL)5.5906"
Overall Length — mm (OAL)142.0 mm
Flute Length — mm (LCF)41.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
StandardDIN 212
Reference Numbers
EDP Number420225
EAN7320760420225
File Type Download
B18011.0 — Line Drawing PDF Download
