B10111.0
B10111.0
B10111.0
B10111.0

B10111.0

UGC DOR5986630
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$162.13 CAD - $162.13 CAD
$162.13 CAD
$162.13 CAD - $162.13 CAD
$162.13 CAD

Vendu en lots de : 1

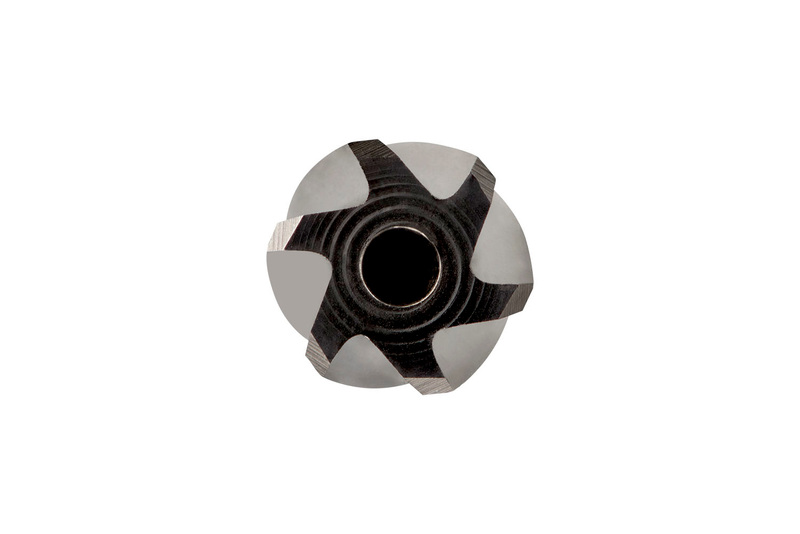

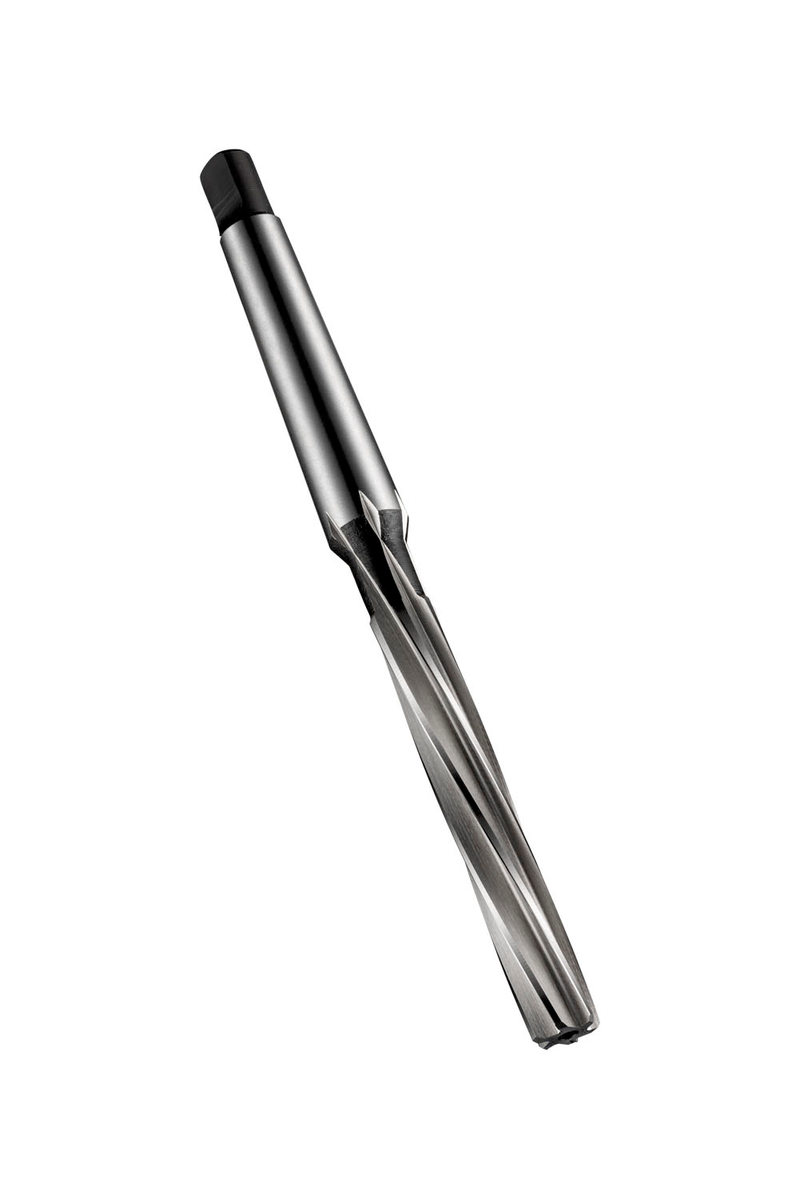

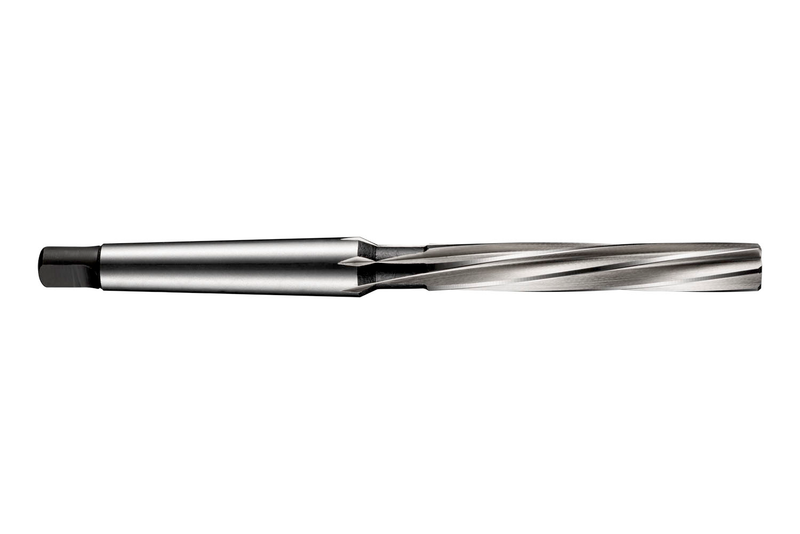

Alésoir machine à spirale lente à gauche et queue cône Morse, diamètre 11.00mm, longueur totale 151mm et longueur de coupe 71mm, selon la norme BS 328 pour l'aléage de trous précis à la tolérance H7, HSS-E à base de cobalt avec finition brillante étuvée à la vapeur pour l'usinage d'aciers de décolletage, d'aciers au carbone non alliés et alliés, de fontes grises et malléables, d'aluminium corroyé et moulé et de cuivre ou d'alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B10111.0
GradeLumineux/ST
Product Number5986630
Product FamilyB101
Dimensions
Cutting Diameter — in (DC)0.4331"
Cutting Diameter — mm (DC)11.0 mm
Overall Length — in (OAL)5.9449"
Overall Length — mm (OAL)151.0 mm
Flute Length — mm (LCF)71.0 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardBS 328
Reference Numbers
EDP Number181720
EAN7320760181720
File Type Download

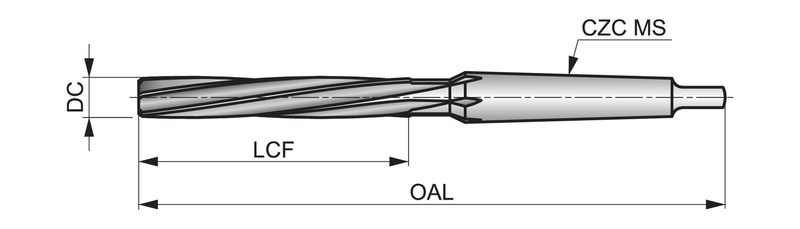

B10111.0 — Line Drawing PDF Download
