B18015.0

UGC DOR5986631
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$108.74 CAD - $108.74 CAD
$108.74 CAD
$108.74 CAD - $108.74 CAD
$108.74 CAD

Vendu en lots de : 1

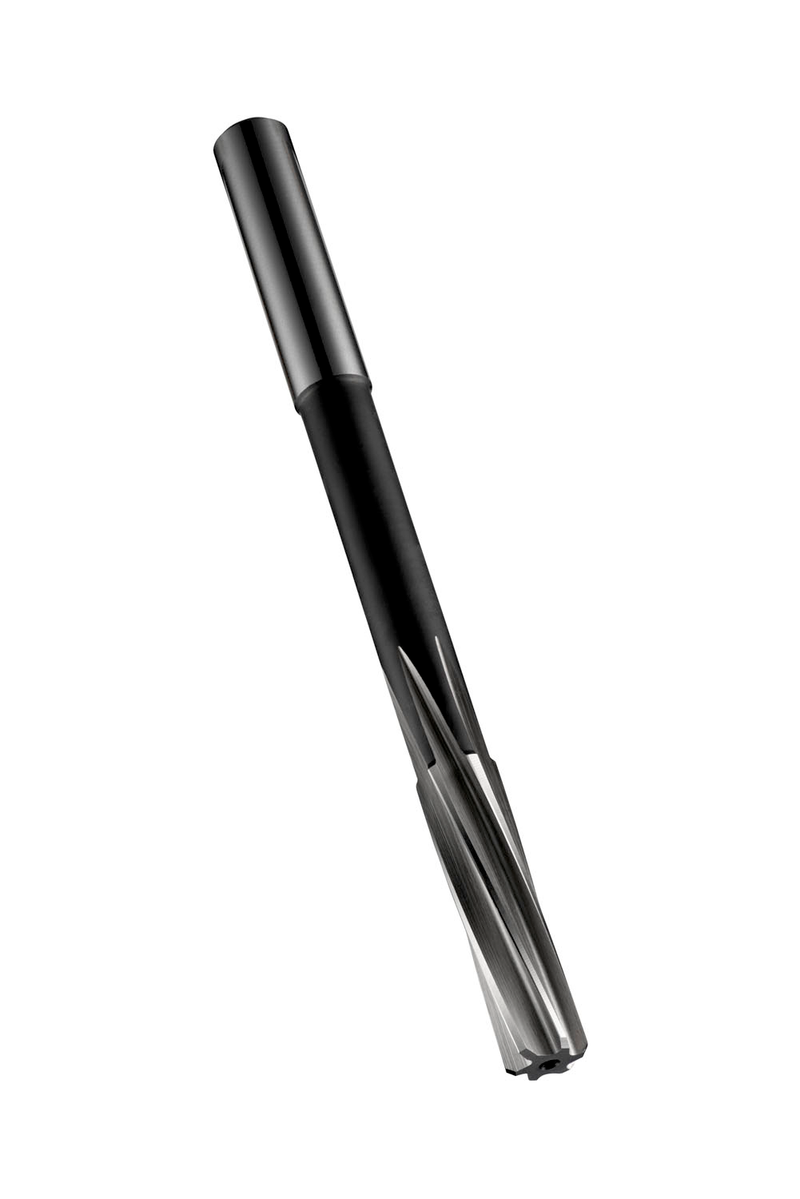

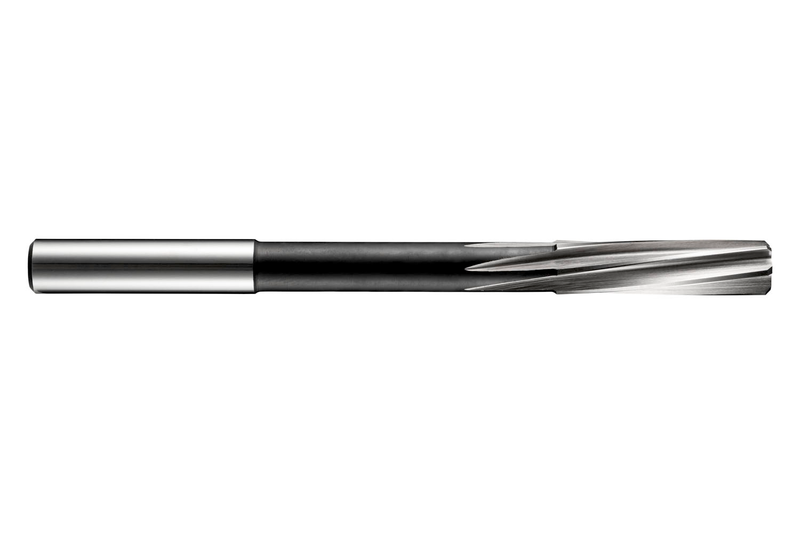

Alésoir machine à spirale lente à gauche et queue cylindrique, diamètre 15,00 mm, longueur totale 162 mm, longueur de coupe 50 mm et dégagement de 112 mm avec dégagement de collet, selon la norme DIN 212 pour l'alésage de trous précis à la tolérance H7, HSS-E à base de cobalt avec finition brillante pour l'usinage d'acier à usinabilité améliorée, d'acier au carbone et allié, de fonte grise et malléable, d'aluminium forgé et moulé et de cuivre ou d'alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B18015.0
GradeLumineux
Product Number5986631
Product FamilyB180
Dimensions
Cutting Diameter — in (DC)0.5906"
Cutting Diameter — mm (DC)15.0 mm
Overall Length — in (OAL)6.378"
Overall Length — mm (OAL)162.0 mm
Flute Length — mm (LCF)50.0 mm
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)8
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
StandardDIN 212
Reference Numbers
EDP Number420263
EAN7320760420263
File Type Download

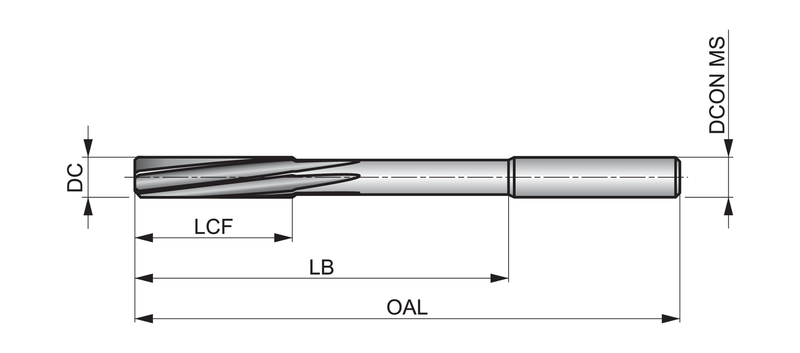

B18015.0 — Line Drawing PDF Download
