B1802.1
B1802.1
B1802.1

B1802.1

UGC DOR5986646
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$46.61 CAD - $46.61 CAD
$46.61 CAD
$46.61 CAD - $46.61 CAD
$46.61 CAD

Vendu en lots de : 1

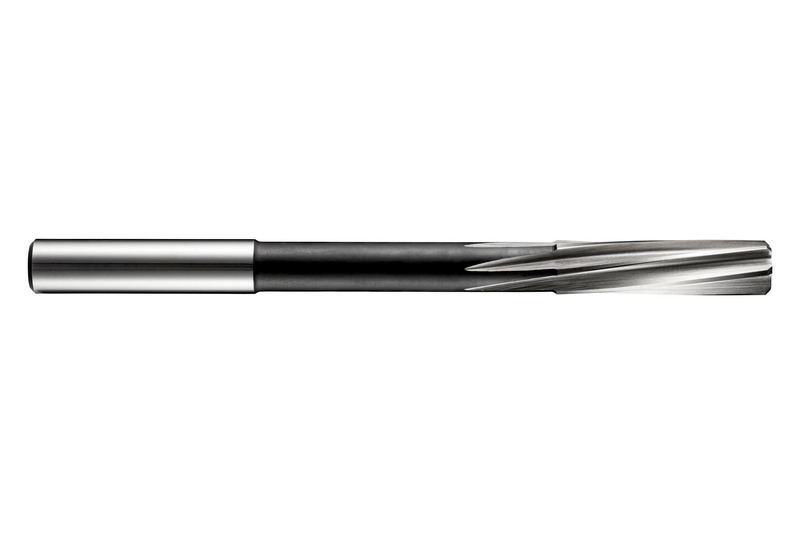

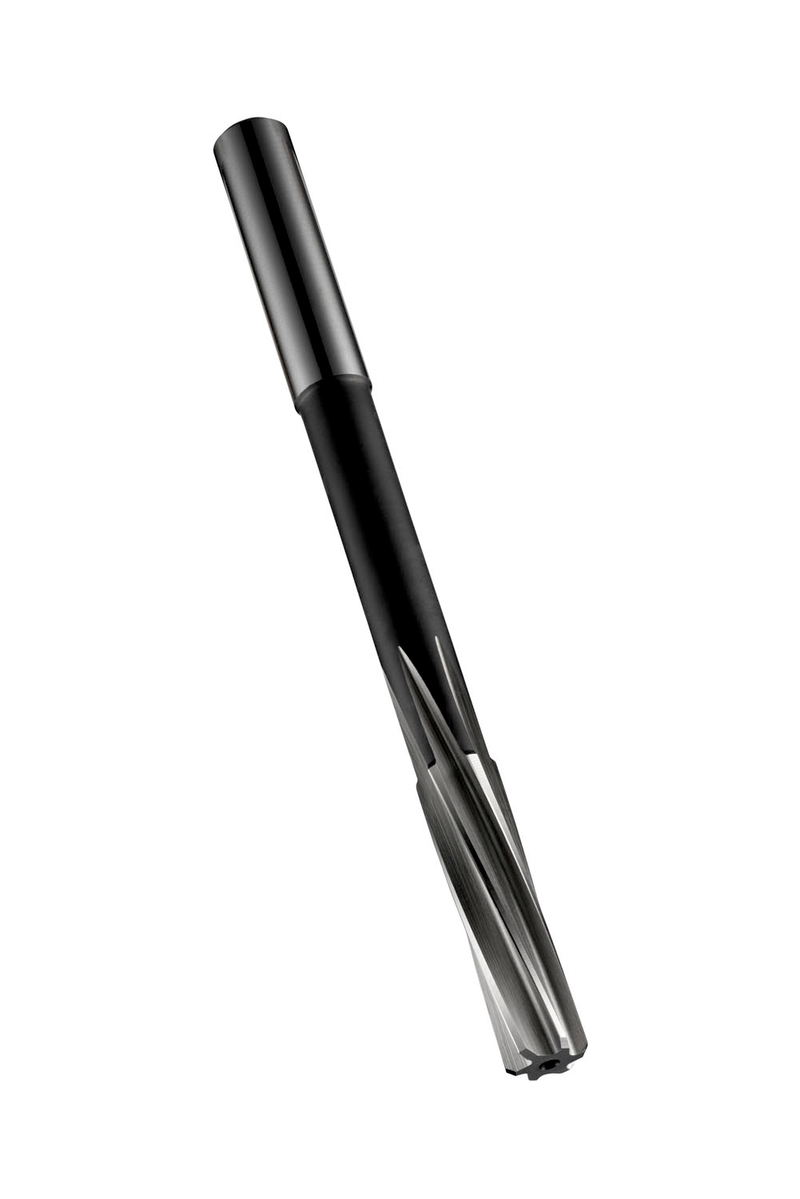

Alésoir machine à spirale lente à gauche et queue cylindrique, diamètre 2,10 mm, longueur totale 49 mm, longueur de coupe 11 mm et portée 24 mm avec dégagement, selon la norme DIN 212 pour l'alé­sage de trous précis à la tolérance H7, en HSS-E cobalt avec finition brillante pour l'usinage des aciers de décolletage, aciers au carbone et alliés, fontes grises et malléables, aluminium corroyé et moulé et alliages de cuivre ou de laiton

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B1802.1
GradeLumineux
Product Number5986646
Product FamilyB180
Dimensions
Cutting Diameter — in (DC)0.0827"
Cutting Diameter — mm (DC)2.1 mm
Overall Length — in (OAL)1.9291"
Overall Length — mm (OAL)49.0 mm
Flute Length — mm (LCF)11.0 mm
Connection Dia. — in (DCON)0.0787"
Connection Dia. — mm (DCON)2.0 mm
Number of Flutes (NOF)4
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
StandardDIN 212
Reference Numbers
EDP Number418819
EAN7320760418819
File Type Download

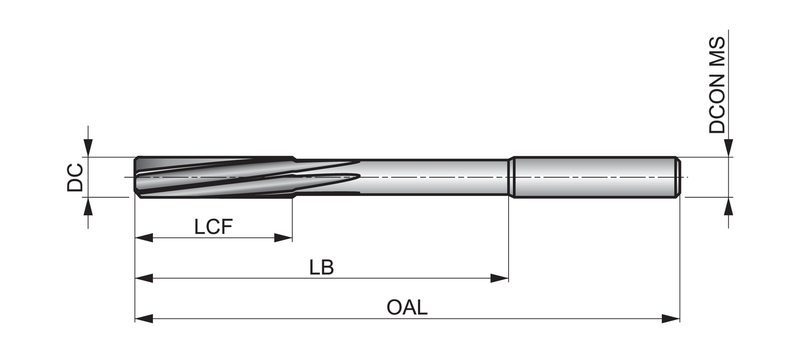

B1802.1 — Line Drawing PDF Download
