UGC DOR5986713
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.51 CAD - $37.51 CAD
$37.51 CAD
$37.51 CAD - $37.51 CAD
$37.51 CAD

Vendu en lots de : 1

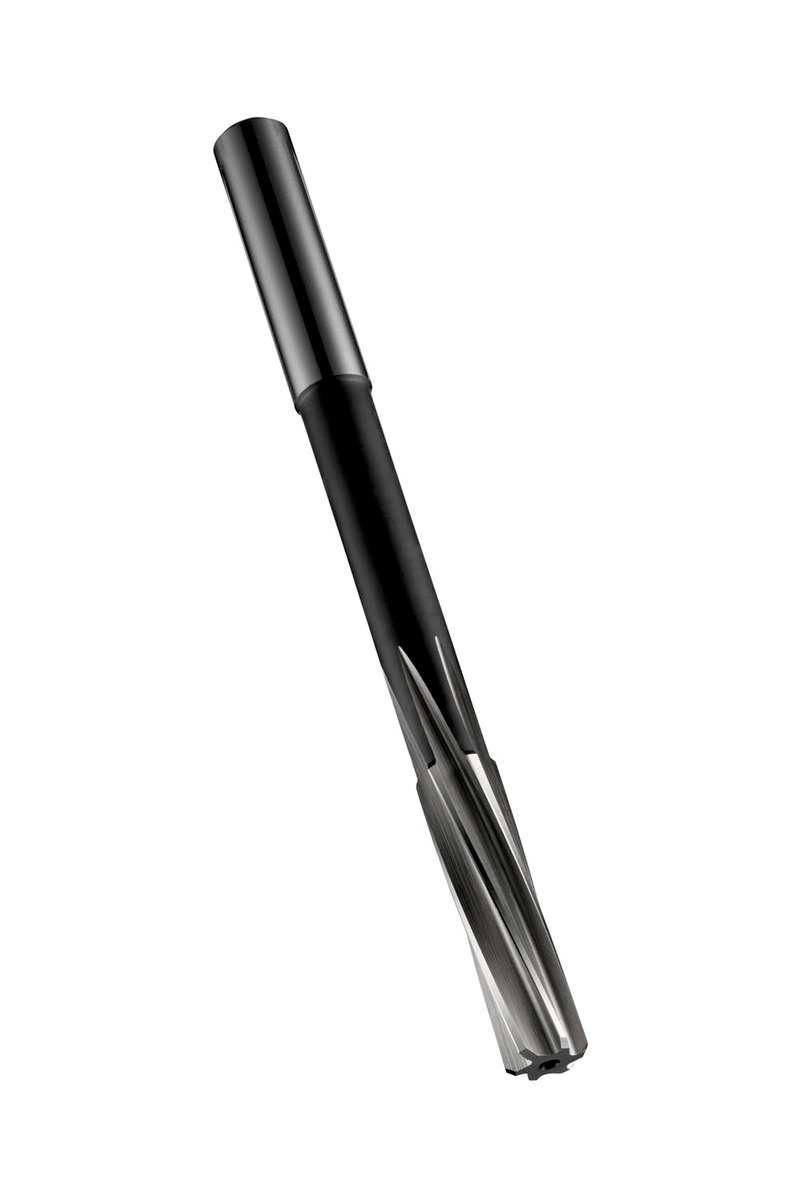

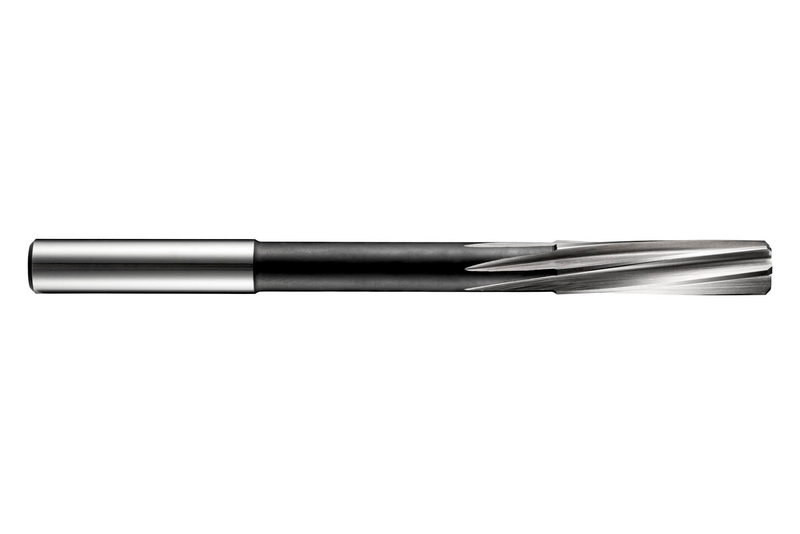

Alésoir machine à spirale lente à gauche et queue cylindrique, diamètre 3,90mm, longueur totale 75mm, longueur de coupe 19mm et portée de 43mm avec dégagement de col, selon la norme DIN 212 pour l'alésage de trous précis à la tolérance H7, HSS-E à base de cobalt avec finition brillante pour l'usinage d'aciers doux, d'aciers au carbone et alliés, de fontes grises et malléables, d'aluminium forgé et moulé, de cuivre ou d'alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B1803.9
GradeLumineux
Product Number5986713
Product FamilyB180

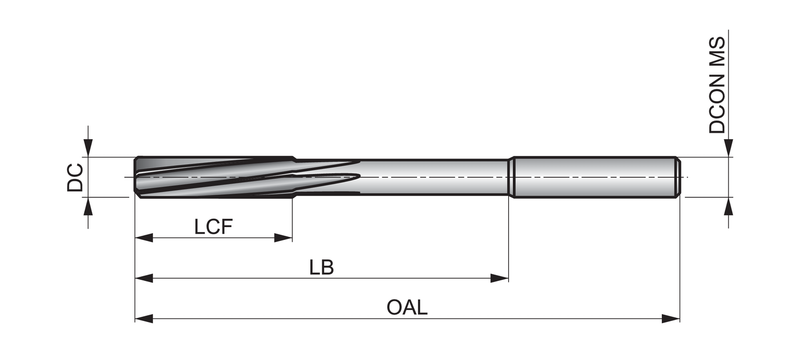

Dimensions
Cutting Diameter — in (DC)0.1535"
Cutting Diameter — mm (DC)3.9 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Flute Length — mm (LCF)19.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
StandardDIN 212
Reference Numbers
EDP Number418994
EAN7320760418994
File Type Download
B1803.9 — Line Drawing PDF Download
