B1018.0
B1018.0
B1018.0
B1018.0

B1018.0

UGC DOR5986727
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$130.00 CAD - $130.00 CAD
$130.00 CAD
$130.00 CAD - $130.00 CAD
$130.00 CAD

Vendu en lots de : 1

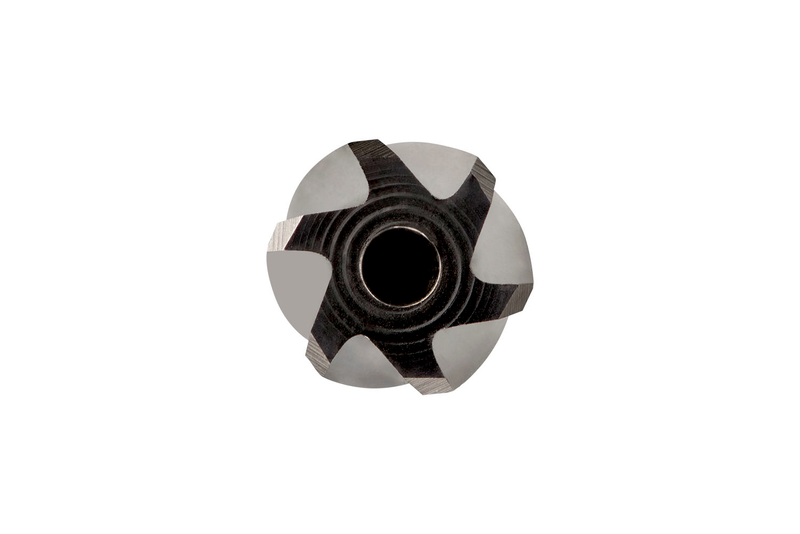

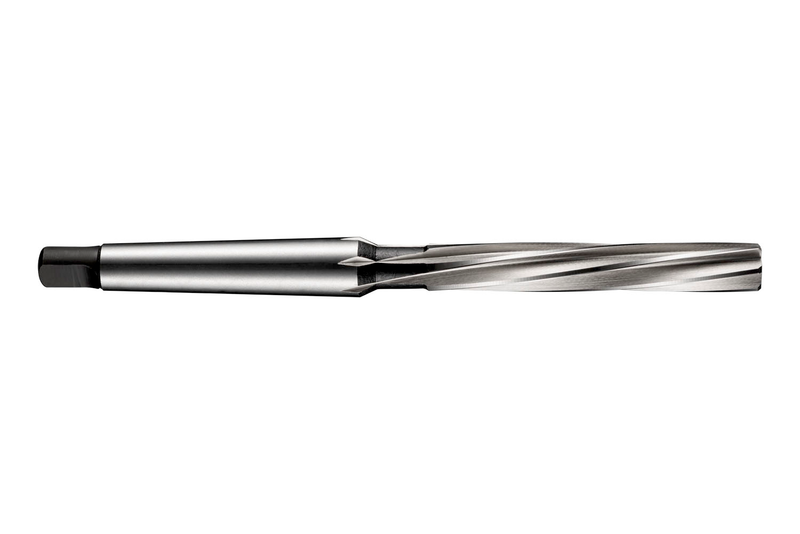

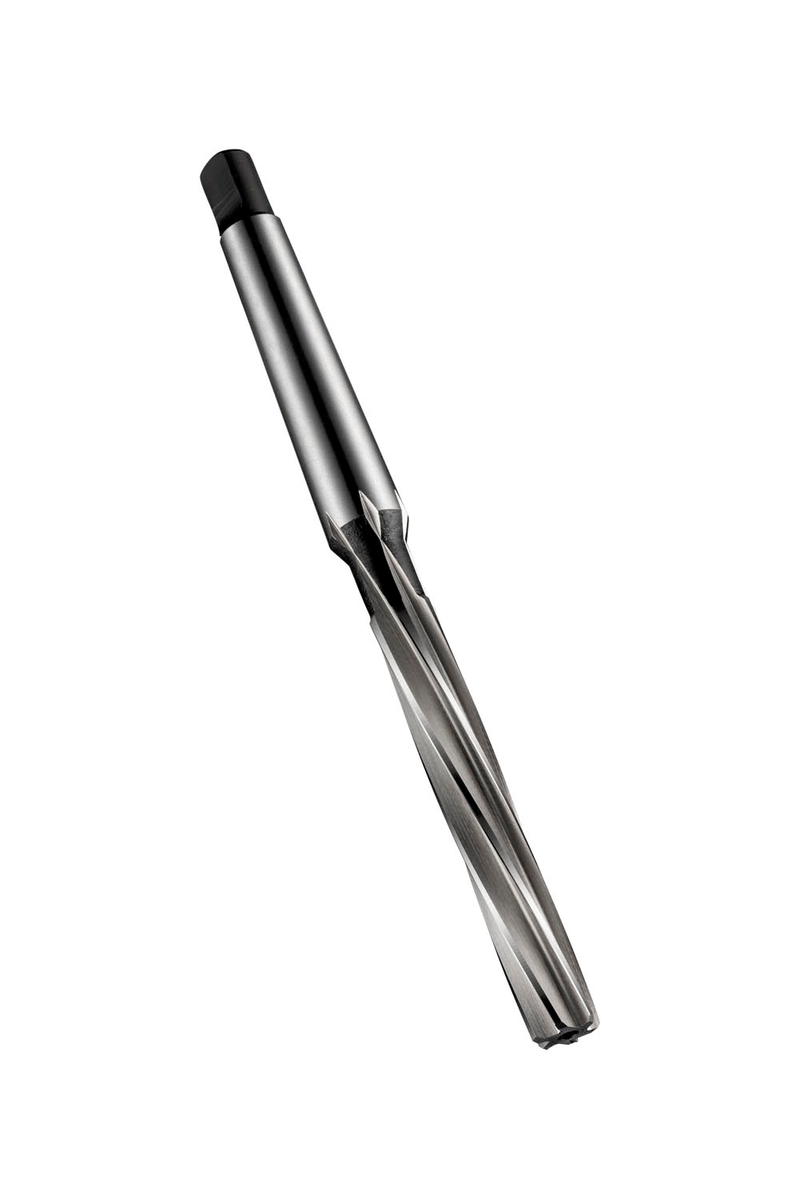

Alésoir machine à spirale lente à gauche et queue cône Morse, diamètre 8,00 mm avec une longueur totale de 138 mm et une longueur de coupe de 58 mm, selon la norme BS 328 pour l'alésage de trous précis à la tolérance H7, HSS-E cobalt avec finition brillante étuvée pour l'usinage des aciers de décolletage, des aciers au carbone et alliés, de la fonte grise et malléable, de l'aluminium corroyé et moulé et du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B1018.0
GradeLumineux/CV
Product Number5986727
Product FamilyB101
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)5.4331"
Overall Length — mm (OAL)138.0 mm
Flute Length — mm (LCF)58.0 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardBS 328
Reference Numbers
EDP Number181669
EAN7320760181669
File Type Download

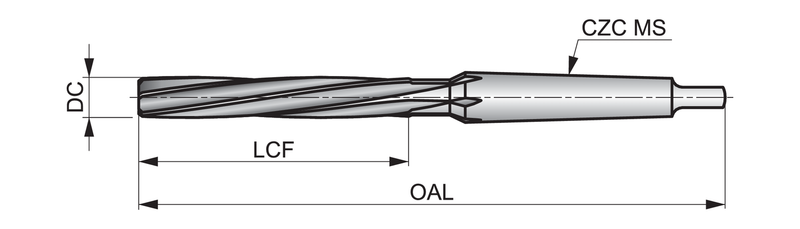

B1018.0 — Line Drawing PDF Download
