B16112.0
B16112.0
B16112.0

B16112.0

UGC DOR5986769
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$104.79 CAD - $104.79 CAD
$104.79 CAD
$104.79 CAD - $104.79 CAD
$104.79 CAD

Vendu en lots de : 1

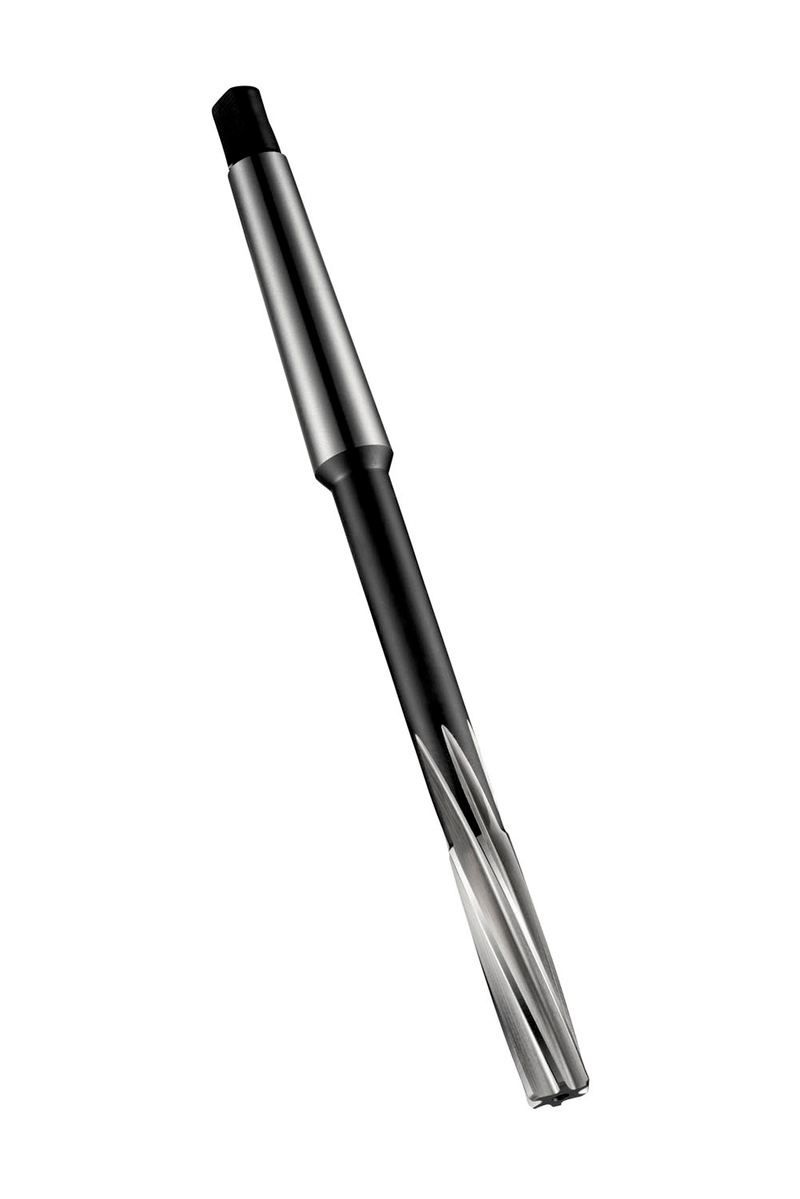

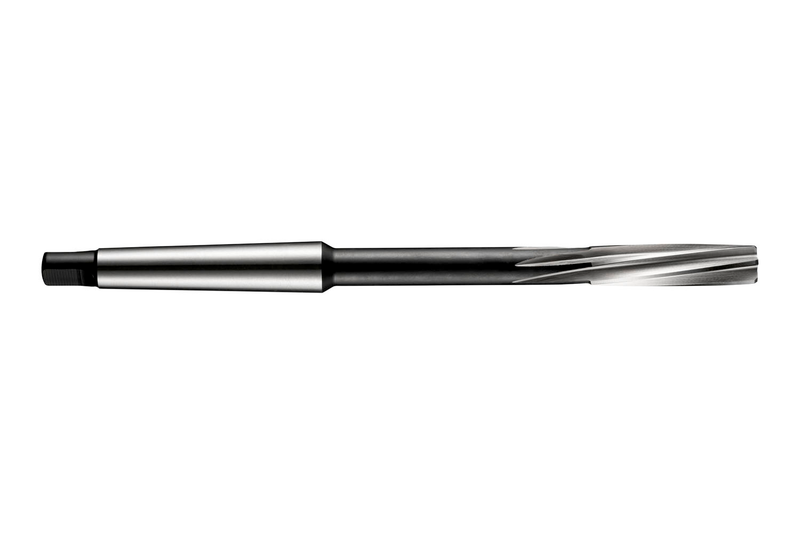

Alésoir machine à spirale lente à gauche avec queue cône Morse, diamètre 12,00 mm, longueur totale 182 mm, longueur de coupe 44 mm et longueur utile de 116,5 mm avec dégagement, selon la norme DIN 208 pour l'alésage de trous précis à la tolérance H7, en HSS-E cobalt avec finition brillante pour l'usinage des aciers de décolletage, des aciers au carbone non alliés et alliés, de la fonte grise et malléable, de l'aluminium corroyé et moulé et du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B16112.0
GradeLumineux
Product Number5986769
Product FamilyB161
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)7.1654"
Overall Length — mm (OAL)182.0 mm
Flute Length — mm (LCF)44.0 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 208
Reference Numbers
EDP Number49785
EAN7320760049785
File Type Download

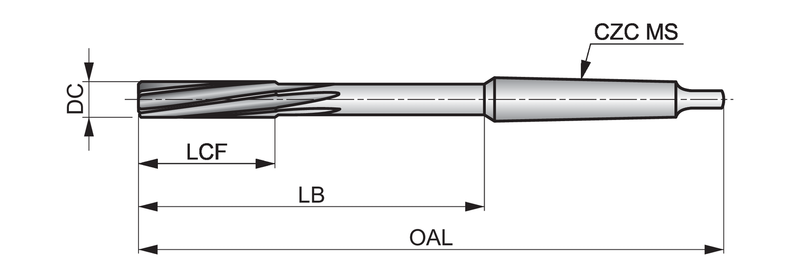

B16112.0 — Line Drawing PDF Download
