B16120.0
B16120.0
B16120.0

B16120.0

UGC DOR5986796
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$148.79 CAD - $148.79 CAD
$148.79 CAD
$148.79 CAD - $148.79 CAD
$148.79 CAD

Vendu en lots de : 1

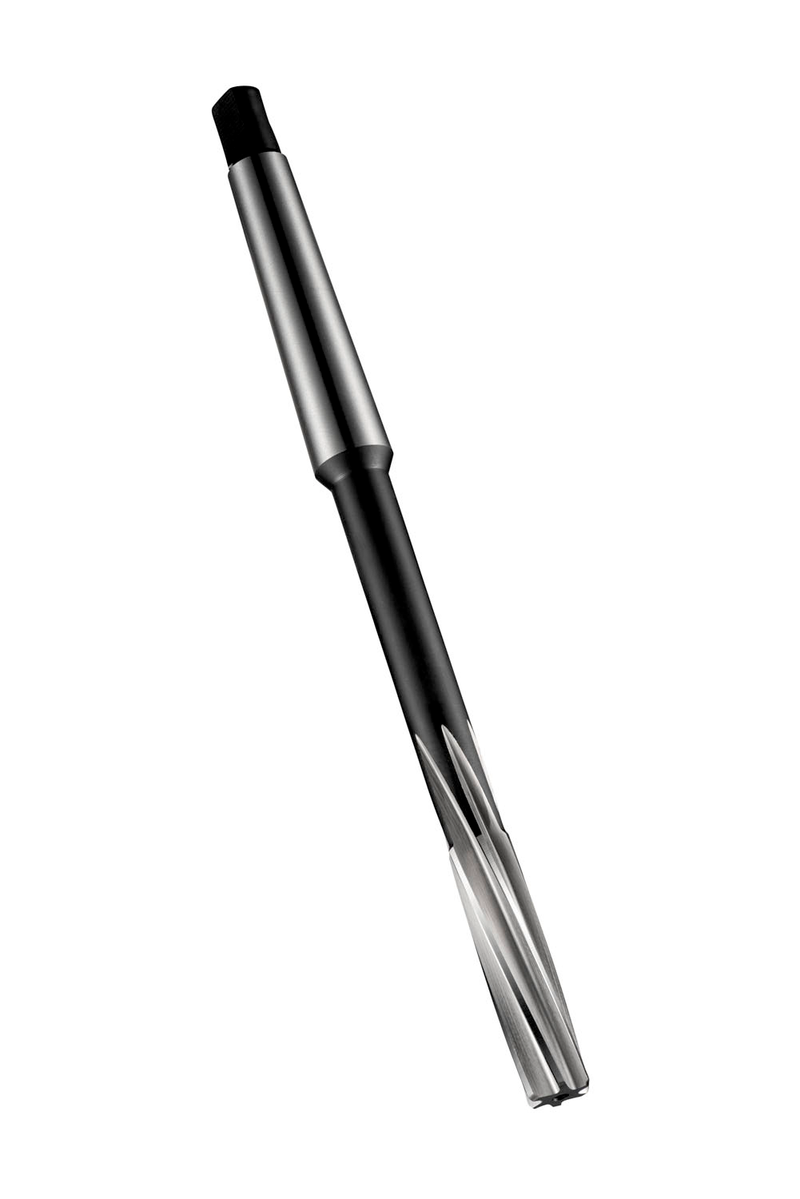

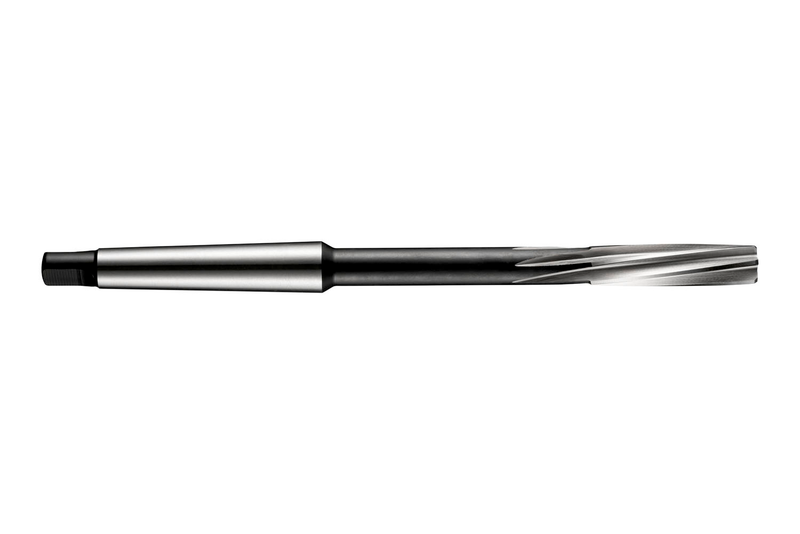

Alésoir machine à spirale lente à gauche et queue cône morse, diamètre 20,00mm avec une longueur totale de 228mm, une longueur de coupe de 60mm et un dégagement de 148mm, selon la norme DIN 208 pour l'alésage de trous précis à la tolérance H7, HSS-E à base de cobalt avec finition brillante pour l'usinage des aciers de décolletage, aciers au carbone et alliés, fontes grises et malléables, aluminium corroyé et moulé et cuivre ou alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B16120.0
GradeLumineux
Product Number5986796
Product FamilyB161
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)8.9764"
Overall Length — mm (OAL)228.0 mm
Flute Length — mm (LCF)60.0 mm
Number of Flutes (NOF)8
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 208
Reference Numbers
EDP Number49853
EAN7320760049853
File Type Download

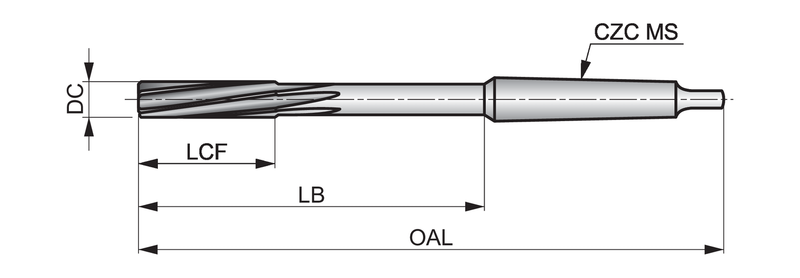

B16120.0 — Line Drawing PDF Download
