UGC DOR5986945
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$59.31 CAD - $59.31 CAD
$59.31 CAD
$59.31 CAD - $59.31 CAD
$59.31 CAD

Vendu en lots de : 1

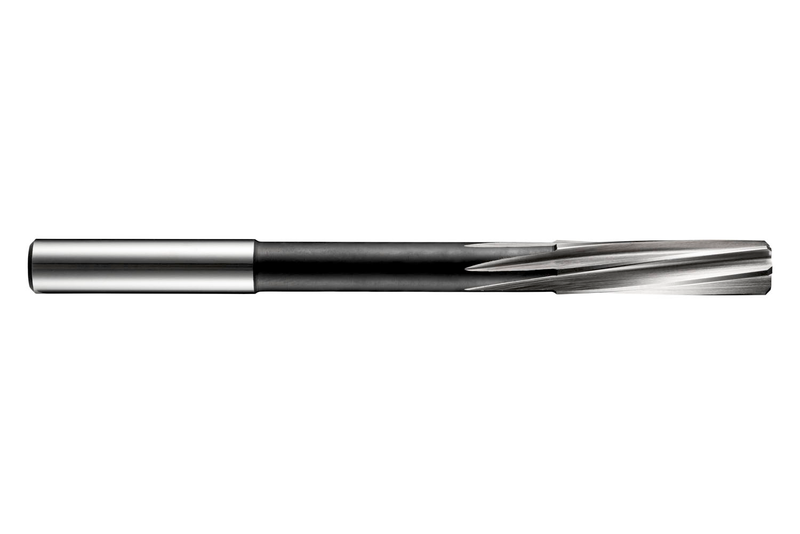

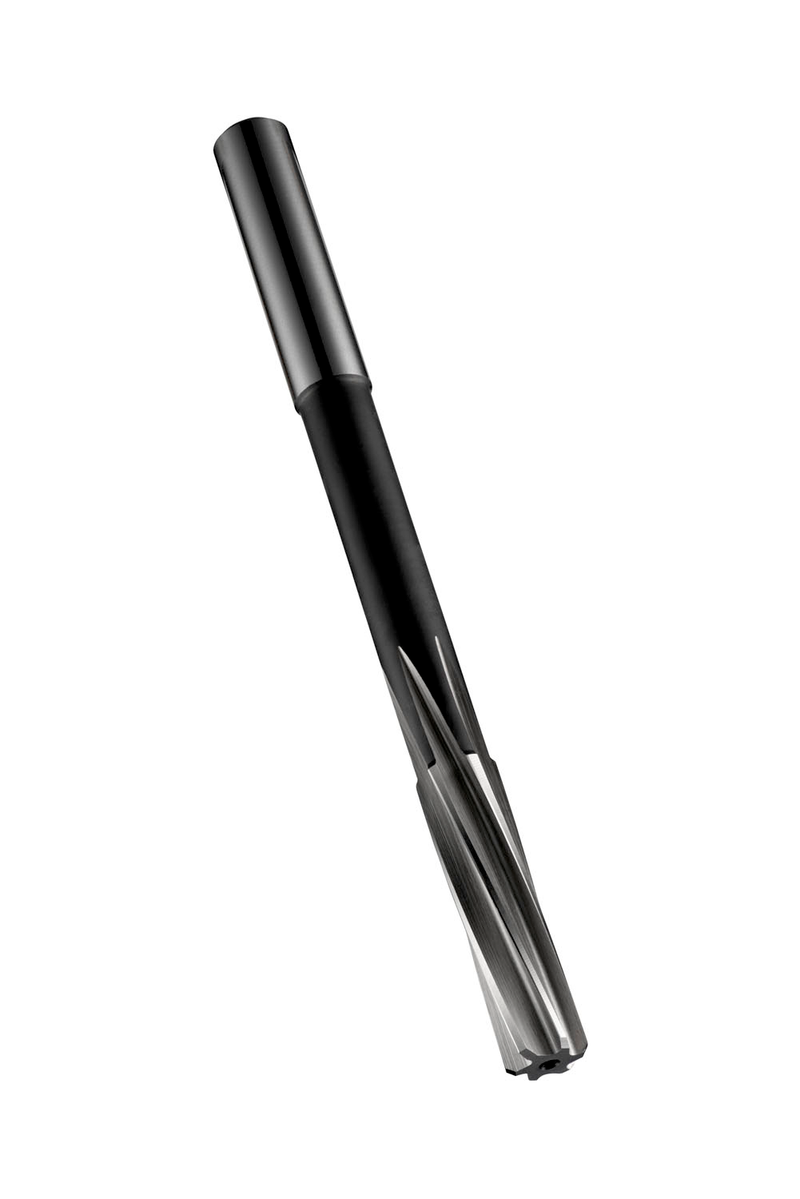

Alésoir machine à spirale lente à gauche et à queue cylindrique, diamètre 7.10mm, longueur totale 109mm, longueur de coupe 31mm et portée 69mm avec dégagement de col, selon la norme DIN 212 pour l'alésage de trous précis dans la tolérance H7, HSS-E à base de cobalt avec finition brillante pour l'usinage d'acier de décolletage, d'acier au carbone et allié, de fonte grise et malléable, d'aluminium forgé et coulé et de cuivre ou d'alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B1807.1
GradeLumineux
Product Number5986945
Product FamilyB180

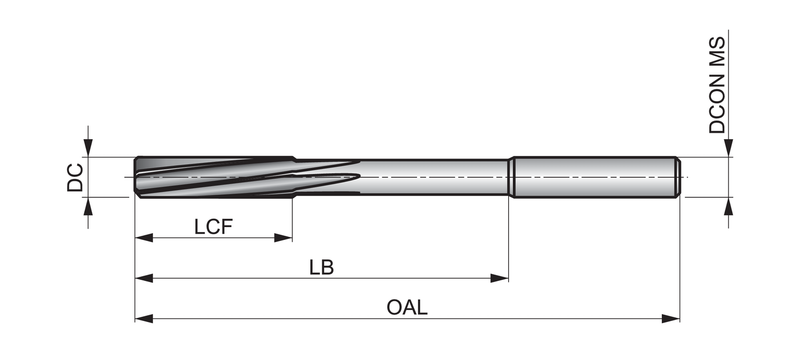

Dimensions
Cutting Diameter — in (DC)0.2795"
Cutting Diameter — mm (DC)7.1 mm
Overall Length — in (OAL)4.2913"
Overall Length — mm (OAL)109.0 mm
Flute Length — mm (LCF)31.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
StandardDIN 212
Reference Numbers
EDP Number419311
EAN7320760419311
File Type Download
B1807.1 — Line Drawing PDF Download
