B1808.3
B1808.3
B1808.3

B1808.3

UGC DOR5986988
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$72.17 CAD - $72.17 CAD
$72.17 CAD
$72.17 CAD - $72.17 CAD
$72.17 CAD

Vendu en lots de : 1

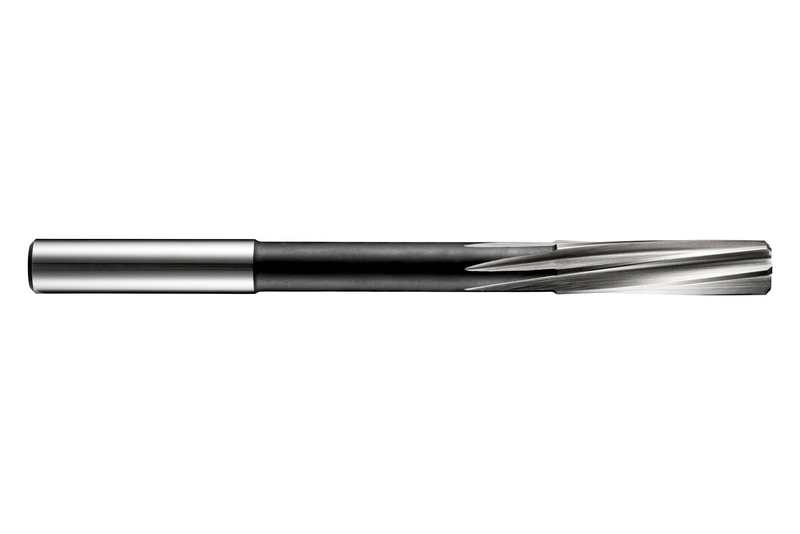

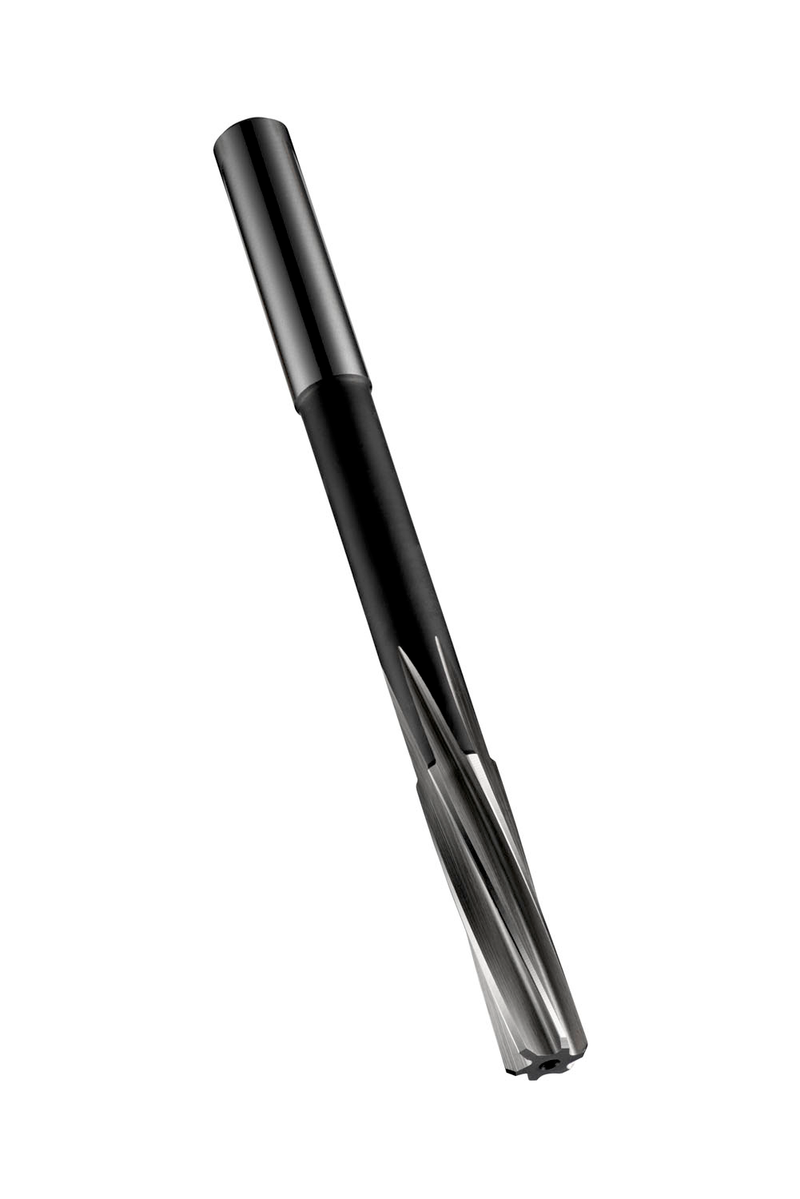

Alésoir machine à spirale lente à gauche et queue cylindrique, diamètre 8,30 mm, longueur totale 117 mm, longueur de coupe 33 mm et portée 75 mm avec dégagement, selon la norme DIN 212 pour l'aléser des trous précis à la tolérance H7, en HSS-E à base de cobalt avec finition brillante pour l'usinage des aciers de décolletage, aciers au carbone et aciers alliés, fontes grises et malléables, aluminium et cuivre ou alliages de cuivre corroyés et coulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B1808.3
GradeLumineux
Product Number5986988
Product FamilyB180
Dimensions
Cutting Diameter — in (DC)0.3268"
Cutting Diameter — mm (DC)8.3 mm
Overall Length — in (OAL)4.6063"
Overall Length — mm (OAL)117.0 mm
Flute Length — mm (LCF)33.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
StandardDIN 212
Reference Numbers
EDP Number419434
EAN7320760419434
File Type Download

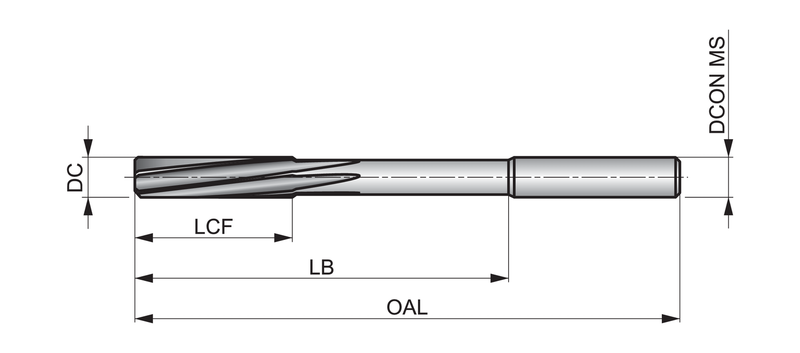

B1808.3 — Line Drawing PDF Download
