B1809.6
B1809.6
B1809.6

B1809.6

UGC DOR5987028
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
1 In Stock - Motool Edmonton
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$71.67 CAD - $71.67 CAD
$71.67 CAD
$71.67 CAD - $71.67 CAD
$71.67 CAD

Vendu en lots de : 1

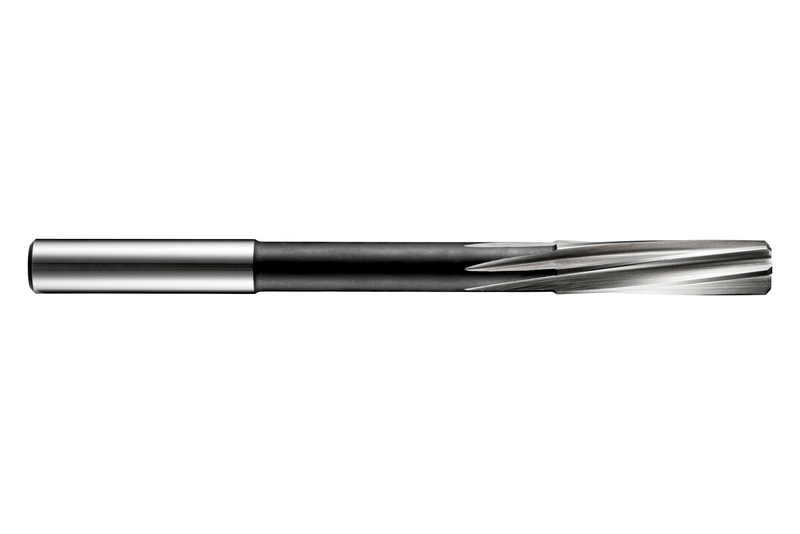

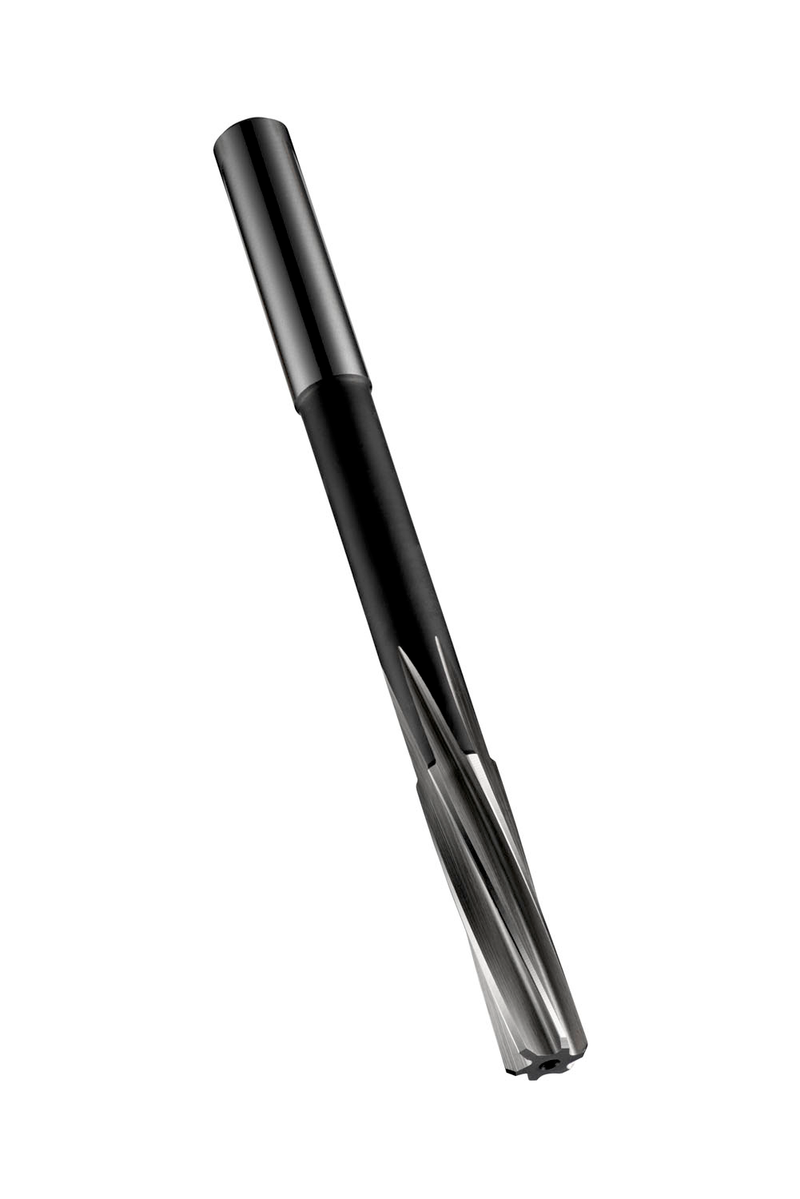

Alésoir machine à spirale lente à gauche et queue cylindrique, diamètre 9,60mm avec une longueur totale de 133mm, une longueur de coupe de 38mm et une portée de 87mm avec dégagement, selon la norme DIN 212 pour l'usinage de trous précis à la tolérance H7, HSS-E cobalt avec finition brillante pour l'usinage d'acier à coupe libre, d'acier au carbone et allié, de fonte grise et malléable, d'aluminium forgé et moulé, et de cuivre ou d'alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B1809.6
GradeLumineux
Product Number5987028
Product FamilyB180

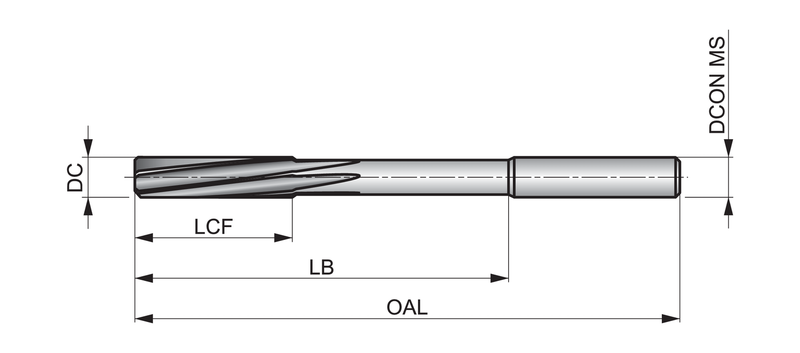

Dimensions
Cutting Diameter — in (DC)0.378"
Cutting Diameter — mm (DC)9.6 mm
Overall Length — in (OAL)5.2362"
Overall Length — mm (OAL)133.0 mm
Flute Length — mm (LCF)38.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
StandardDIN 212
Reference Numbers
EDP Number420447
EAN7320760420447
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
B1809.6 — Line Drawing PDF Download
