B1805.7
B1805.7
B1805.7

B1805.7

UGC DOR5987048
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.89 CAD - $52.89 CAD
$52.89 CAD
$52.89 CAD - $52.89 CAD
$52.89 CAD

Vendu en lots de : 1

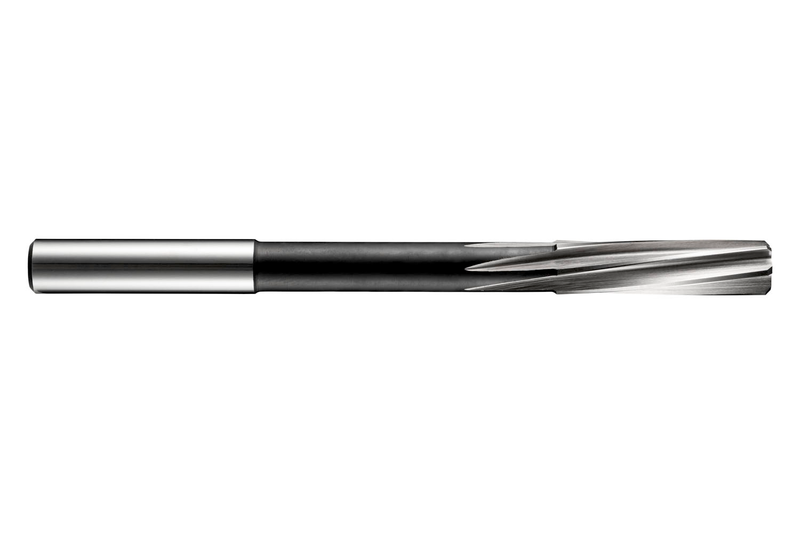

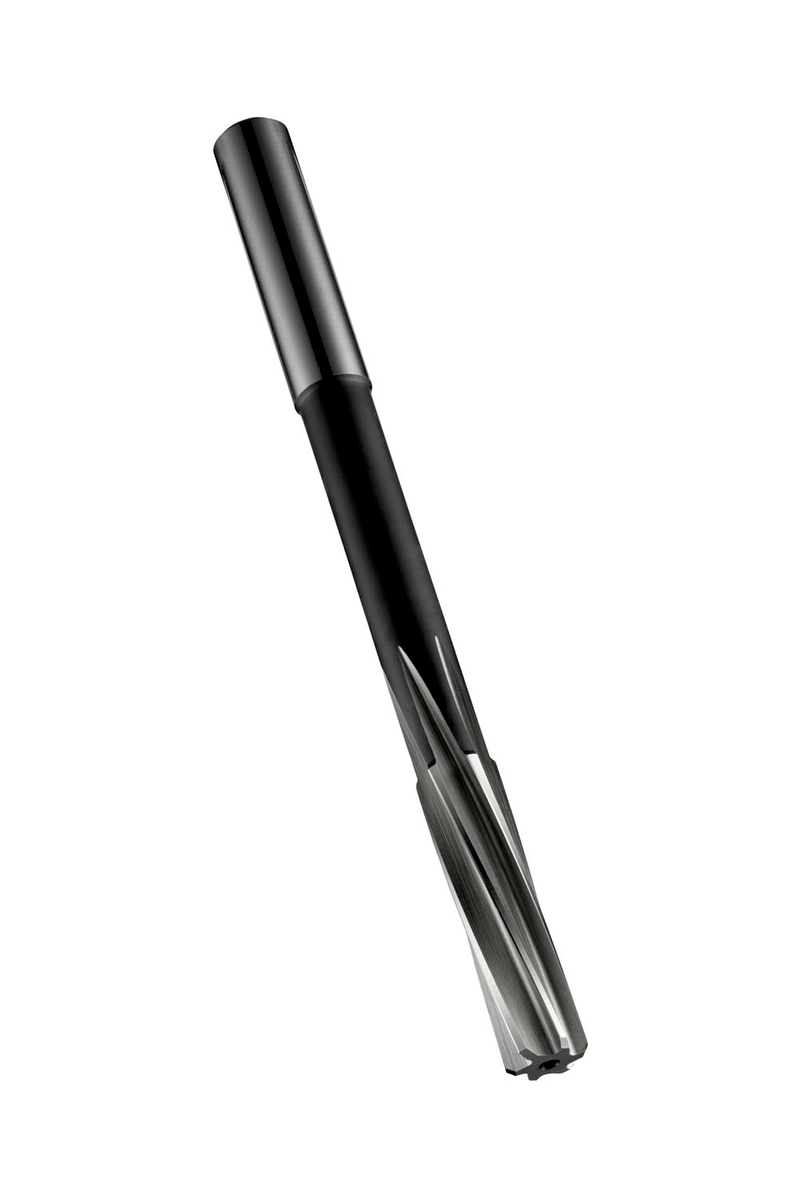

Alésoir machine à spirale lente à gauche et queue cylindrique, diamètre 5,70 mm, longueur totale 93 mm, longueur de coupe 26 mm et portée 57 mm avec dégagement, conforme à la norme DIN 212 pour l'alésage de trous précis avec tolérance H7, en HSS-E cobalté avec finition brillante pour l'usinage d'aciers à coupe libre, aciers au carbone et alliés, fontes grises et malléables, aluminium corroyé et coulé, et cuivre ou alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B1805.7
GradeLumineux
Product Number5987048
Product FamilyB180
Dimensions
Cutting Diameter — in (DC)0.2244"
Cutting Diameter — mm (DC)5.7 mm
Overall Length — in (OAL)3.6614"
Overall Length — mm (OAL)93.0 mm
Flute Length — mm (LCF)26.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
StandardDIN 212
Reference Numbers
EDP Number419175
EAN7320760419175
File Type Download

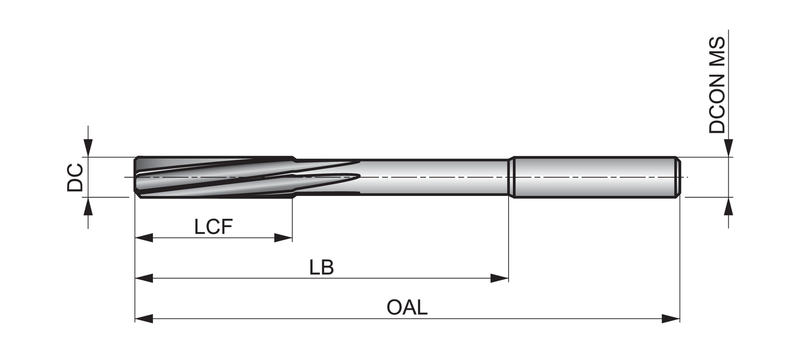

B1805.7 — Line Drawing PDF Download
