B4002.2

UGC DOR5987103
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
Prix d'origine $113.64 CAD - Prix d'origine $113.64 CAD
Prix d'origine
$113.64 CAD
$113.64 CAD - $113.64 CAD
Prix actuel $113.64 CAD

Vendu en lots de : 1

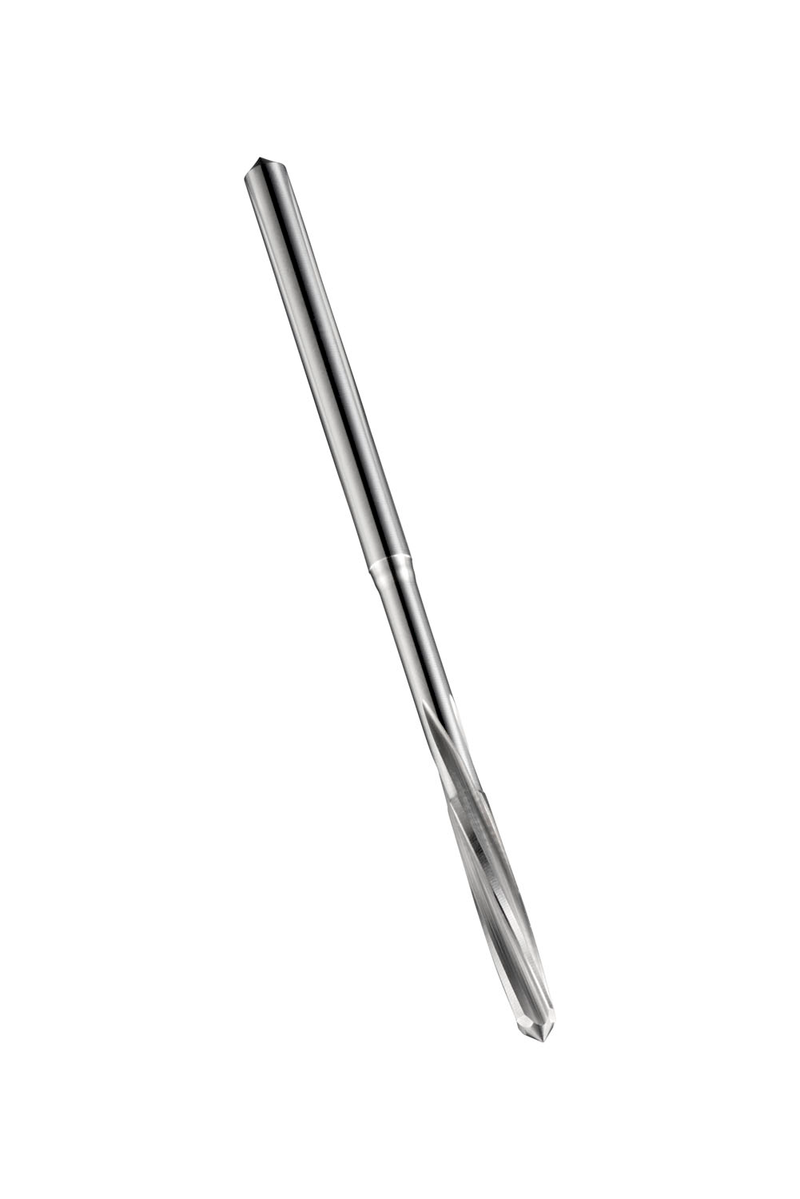

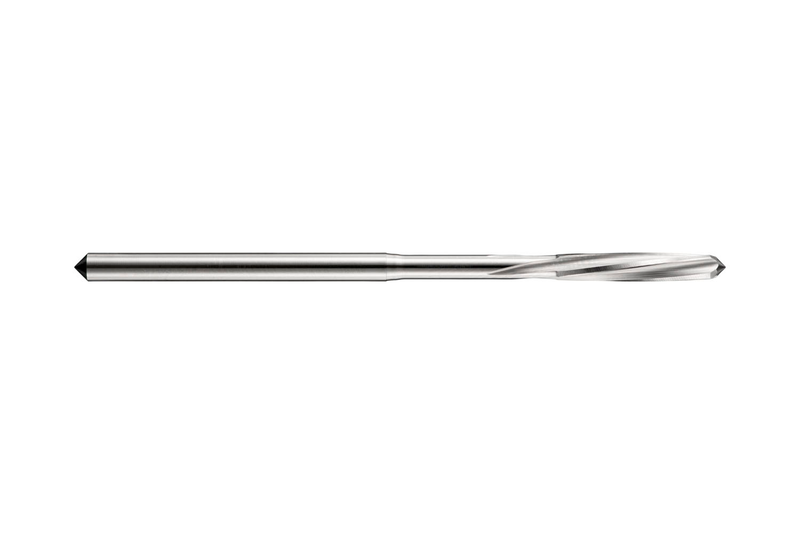

Alésoir machine avec goujures lentes hélicoïdales à gauche extrêmement inégalement espacées et queue cylindrique, diamètre 2,20 mm avec une longueur totale de 53 mm, une longueur de goujure de 12 mm et une portée de 25 mm avec dégagement de col, selon la norme DIN 8093 pour l'alésage de trous précis à la tolérance H7, en carbure monobloc avec finition brillante pour l'usinage de l'acier de décolletage, de l'acier au carbone non allié, de l'acier allié et de l'acier à outils, de la fonte grise, malléable, ductile et à graphite compacté, de l'aluminium corroyé et moulé, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B4002.2
GradeLumineux
Product Number5987103
Product FamilyB400

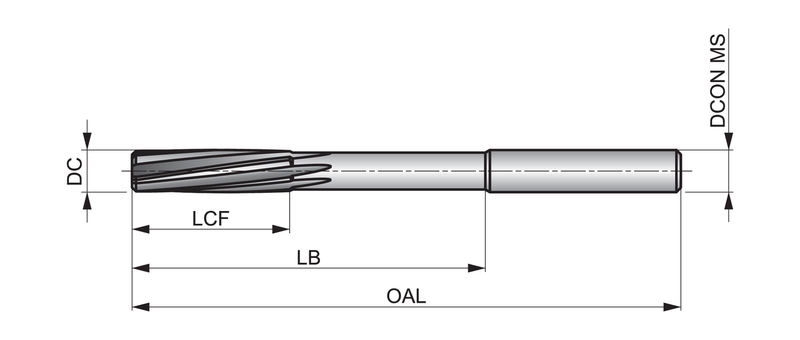

Dimensions
Cutting Diameter — in (DC)0.0866"
Cutting Diameter — mm (DC)2.2 mm
Overall Length — in (OAL)2.0866"
Overall Length — mm (OAL)53.0 mm
Flute Length — mm (LCF)12.0 mm
Connection Dia. — in (DCON)0.0866"
Connection Dia. — mm (DCON)2.2 mm
Number of Flutes (NOF)4
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 8093
Reference Numbers
EDP Number53058
EAN7320760053058
File Type Download
B4002.2 — Line Drawing PDF Download
