B4002.5
B4002.5
B4002.5
B4002.5

B4002.5

UGC DOR5987107
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$86.16 CAD - $86.16 CAD
$86.16 CAD
$86.16 CAD - $86.16 CAD
$86.16 CAD

Vendu en lots de : 1

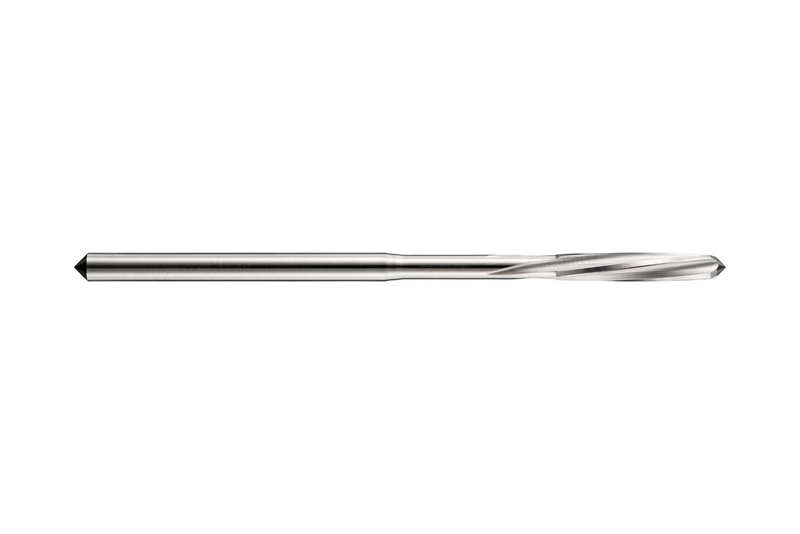

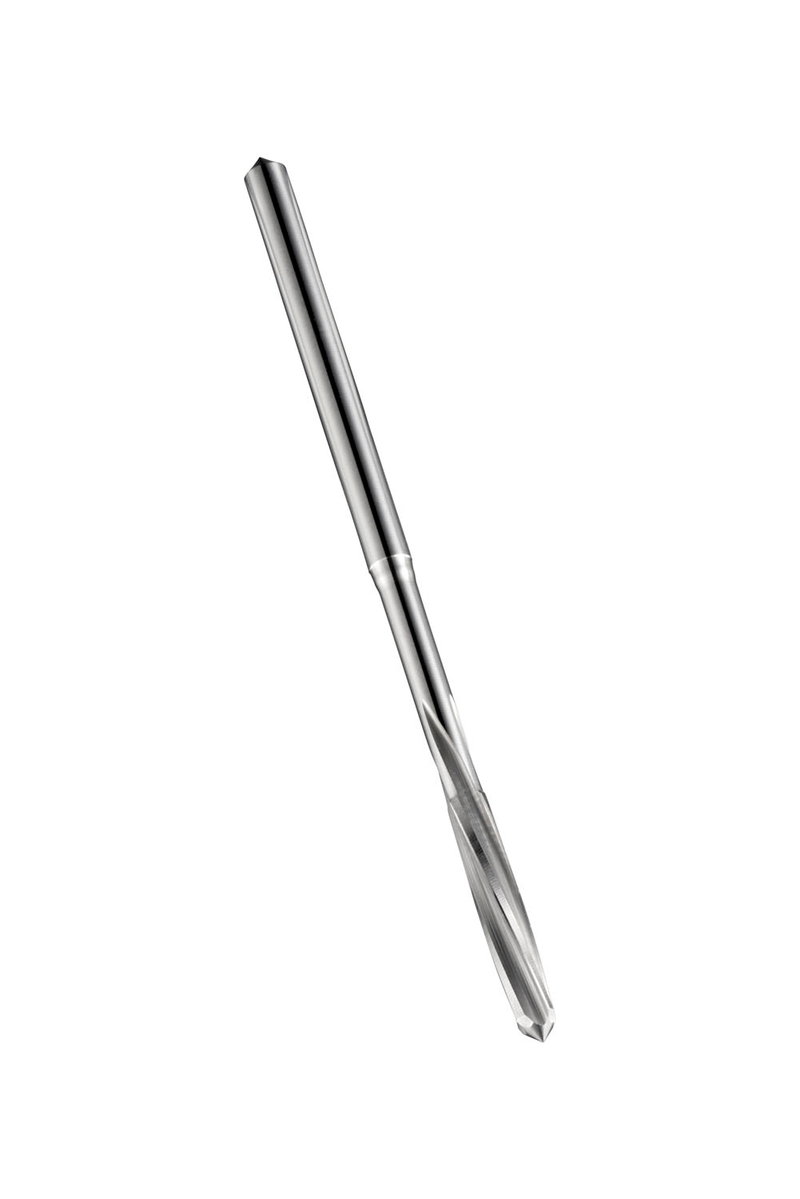

Alésoir machine à spirale lente à gauche, à pas extrêmement inégal et queue cylindrique, diamètre 2,50 mm, longueur totale de 57 mm, longueur de coupe de 14 mm et portée de 29 mm avec dégagement, selon la norme DIN 8093 pour l'alésage de trous précis à la tolérance H7, en carbure monobloc avec finition brillante pour l'usinage des aciers de décolletage, aciers au carbone, alliés et à outils, fontes grises, malléables, ductiles et à graphite compacté, aluminium et cuivre ou alliages de cuivre corroyés et moulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B4002.5
GradeLumineux
Product Number5987107
Product FamilyB400

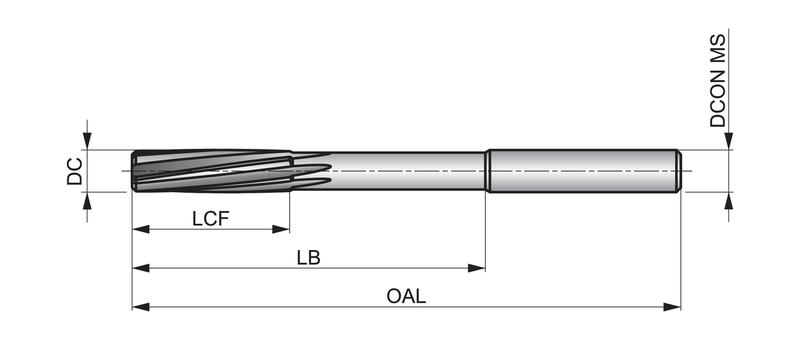

Dimensions
Cutting Diameter — in (DC)0.0984"
Cutting Diameter — mm (DC)2.5 mm
Overall Length — in (OAL)2.2441"
Overall Length — mm (OAL)57.0 mm
Flute Length — mm (LCF)14.0 mm
Connection Dia. — in (DCON)0.0984"
Connection Dia. — mm (DCON)2.5 mm
Number of Flutes (NOF)4
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 8093
Reference Numbers
EDP Number53065
EAN7320760053065
File Type Download
B4002.5 — Line Drawing PDF Download
