B4007.0
B4007.0
B4007.0
B4007.0

B4007.0

UGC DOR5987148
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$260.59 CAD - $260.59 CAD
$260.59 CAD
$260.59 CAD - $260.59 CAD
$260.59 CAD

Vendu en lots de : 1

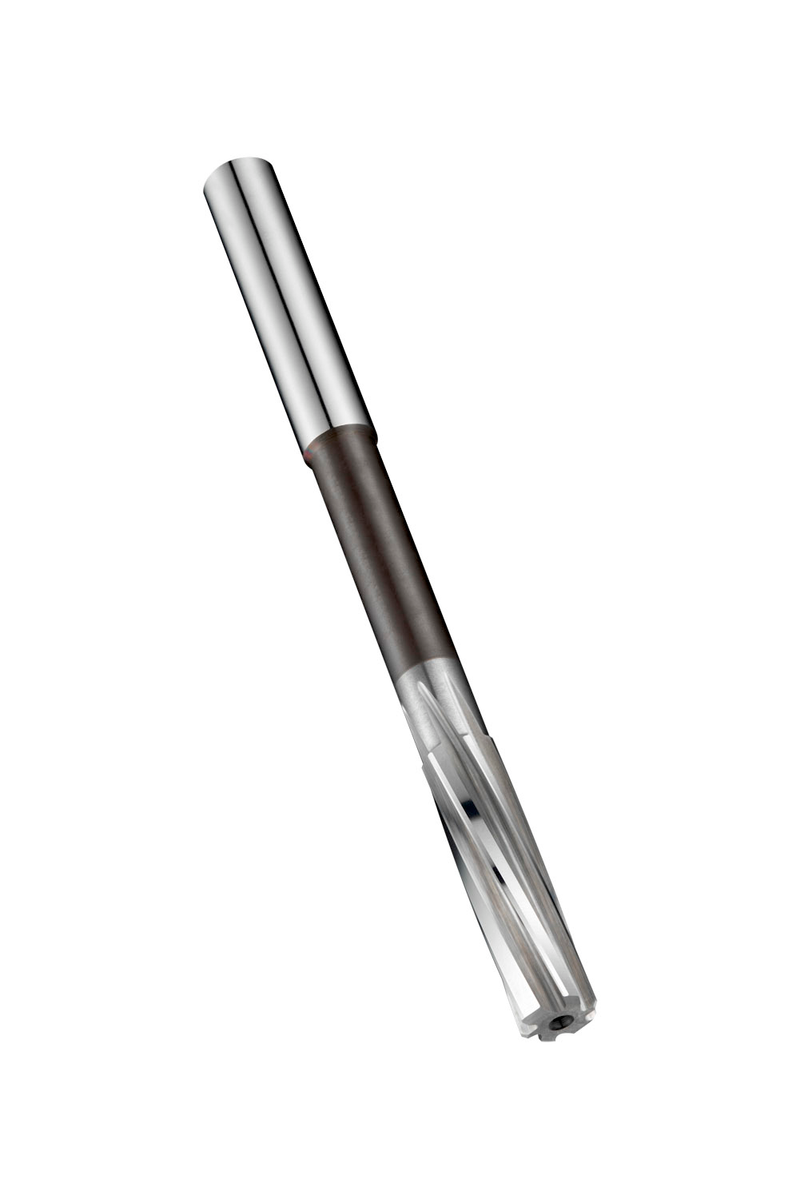

Alésoir machine à spirale lente à gauche, à pas extrêmement inégal et à queue cylindrique, diamètre 7,00 mm, longueur totale de 109 mm, longueur de coupe de 31 mm et portée de 73 mm avec dégagement, selon la norme DIN 8093 pour l'alé­sage de trous précis à la tolérance H7, en carbure monobloc, finition brillante, pour l'usinage de l'acier de décolletage, de l'acier au carbone non allié, allié et à outils, de la fonte grise, malléable, ductile et à graphite compacté, de l'aluminium corroyé et moulé, du cuivre et des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B4007.0
GradeLumineux
Product Number5987148
Product FamilyB400

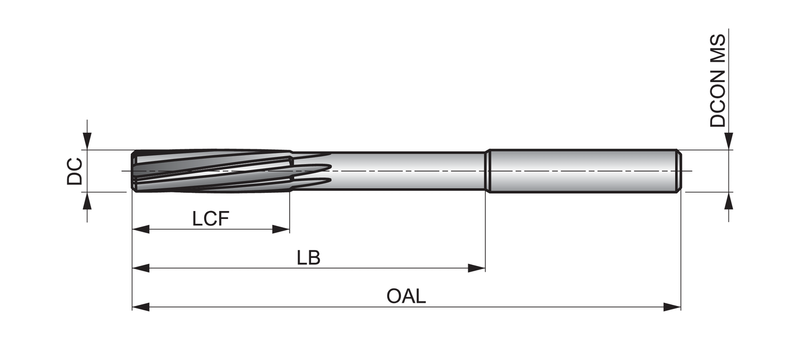

Dimensions
Cutting Diameter — in (DC)0.2756"
Cutting Diameter — mm (DC)7.0 mm
Overall Length — in (OAL)4.2913"
Overall Length — mm (OAL)109.0 mm
Flute Length — mm (LCF)31.0 mm
Connection Dia. — in (DCON)0.2795"
Connection Dia. — mm (DCON)7.1 mm
Number of Flutes (NOF)6
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 8093
Reference Numbers
EDP Number144244
EAN7320760144244
File Type Download
B4007.0 — Line Drawing PDF Download
