B4008.0
B4008.0
B4008.0
B4008.0

B4008.0

UGC DOR5987152
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$207.73 CAD - $207.73 CAD
$207.73 CAD
$207.73 CAD - $207.73 CAD
$207.73 CAD

Vendu en lots de : 1

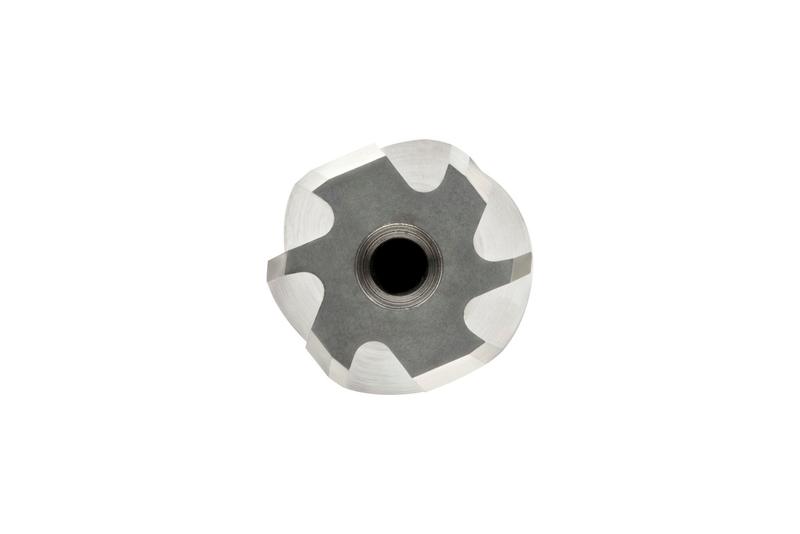

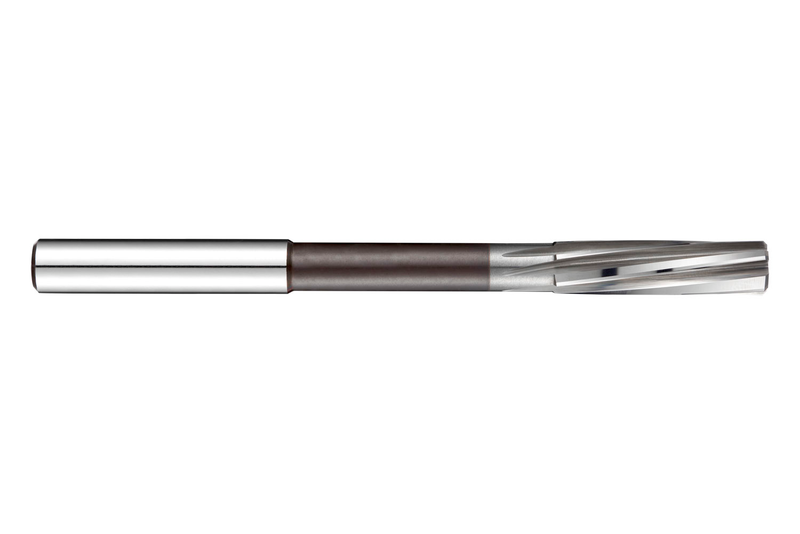

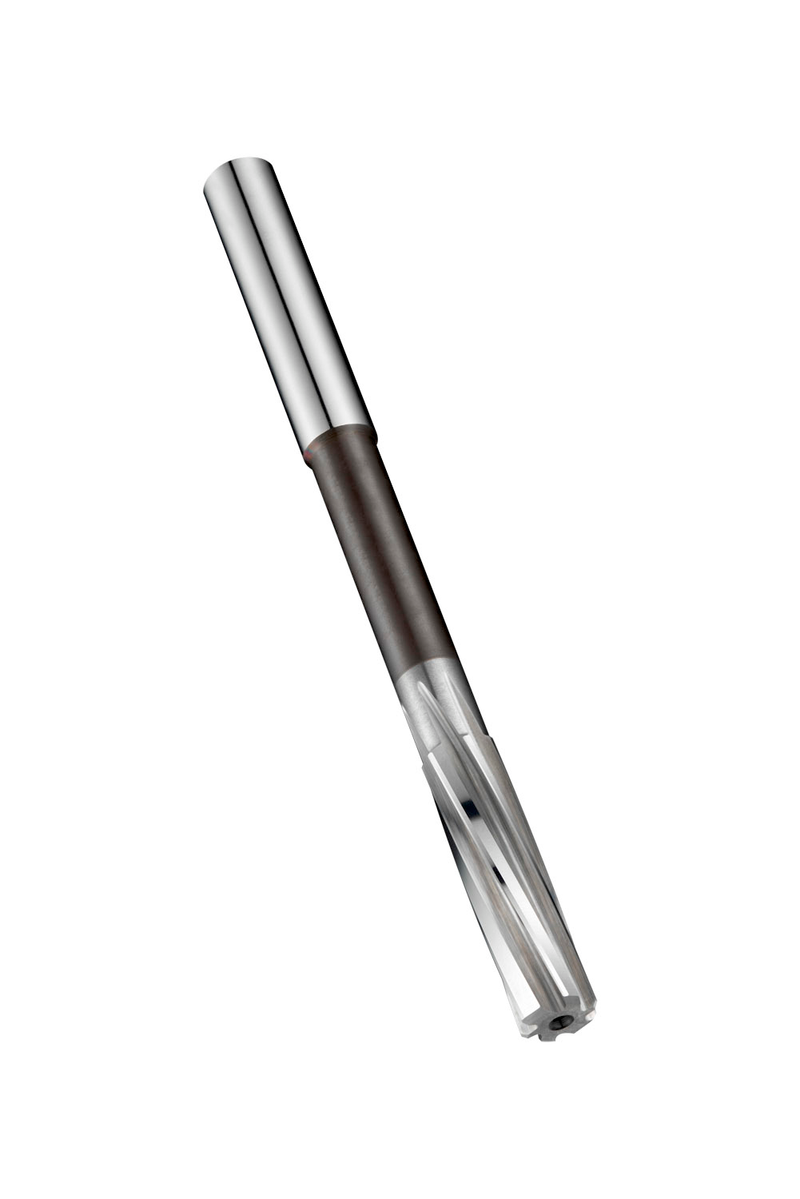

Alésoir machine à spirale lente main gauche, avec dents à pas inégal et queue cylindrique, diamètre 8,00 mm, longueur totale 117 mm, longueur de coupe 33 mm et longueur utile 81 mm avec dégagement, selon la norme DIN 8093, pour l'alé­sage de trous précis dans une tolérance H7, en carbure monobloc, finition brillante, pour l'usinage des aciers de décolletage, aciers au carbone, alliés et à outils, fontes grises, malléables, nodulaires et à graphite compacté, aluminium et cuivre ou alliages de cuivre corroyés et coulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B4008.0
GradeLumineux
Product Number5987152
Product FamilyB400

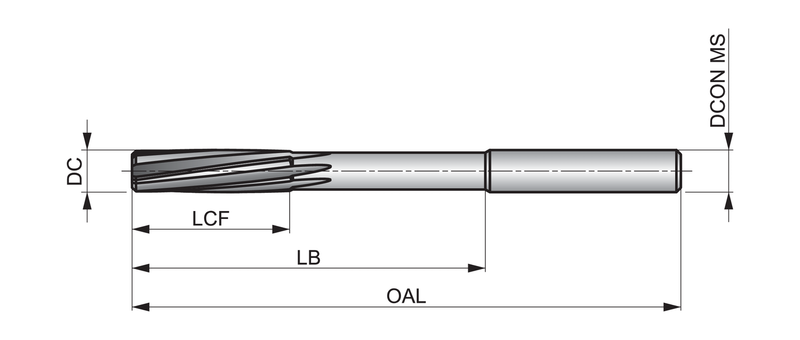

Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)4.6063"
Overall Length — mm (OAL)117.0 mm
Flute Length — mm (LCF)33.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 8093
Reference Numbers
EDP Number144251
EAN7320760144251
File Type Download
B4008.0 — Line Drawing PDF Download
