B44112.0

UGC DOR5987167
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
Prix d'origine $277.50 CAD - Prix d'origine $277.50 CAD
Prix d'origine
$277.50 CAD
$277.50 CAD - $277.50 CAD
Prix actuel $277.50 CAD

Vendu en lots de : 1

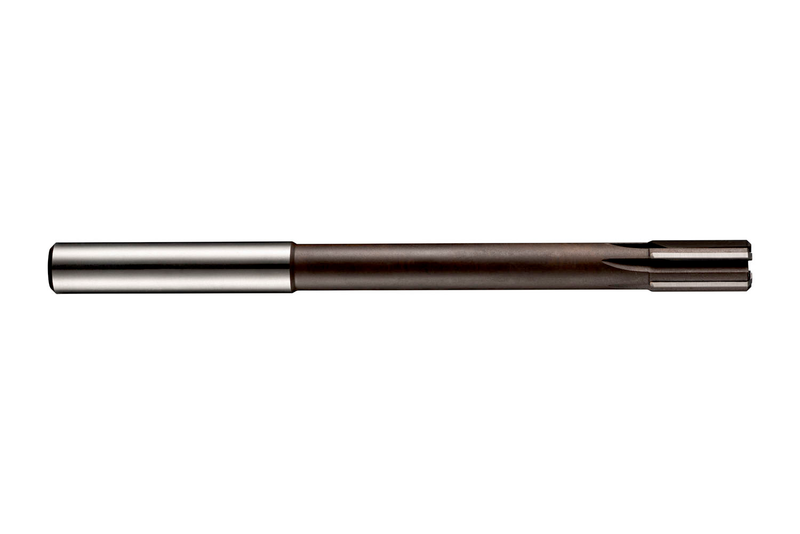

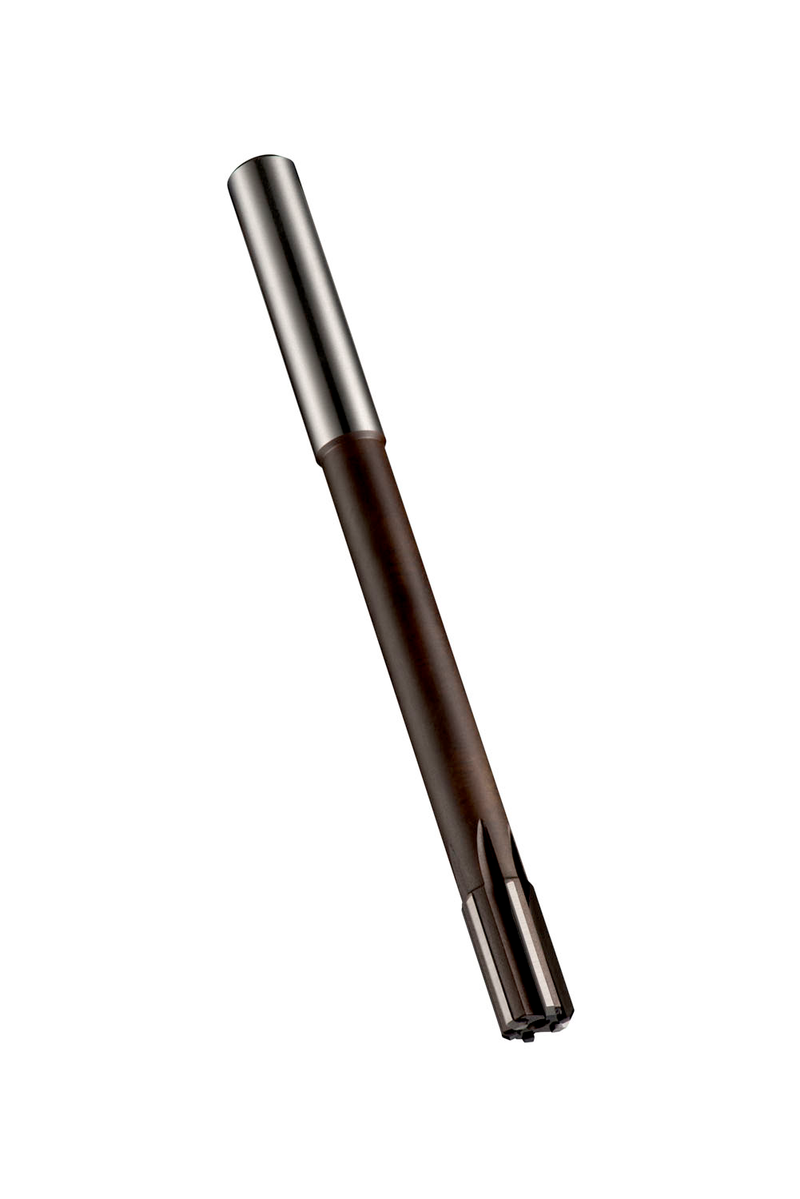

Alésoir machine à goujures droites à espacement extrêmement inégal et queue cylindrique, diamètre 12,00 mm avec une longueur totale de 151 mm, une longueur de coupe de 19 mm et une portée de 105 mm avec dégagement de collet, conforme à la norme DIN 8050 pour l'alésage de trous précis à la tolérance H7, à plaquettes carbure avec finition brillante pour l'usinage de l'acier doux, de l'acier au carbone non allié, de l'acier allié et de l'acier à outils, de la fonte grise, malléable, nodulaire et à graphite compacté, de l'aluminium forgé et moulé, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B44112.0
GradeLumineux
Product Number5987167
Product FamilyB441

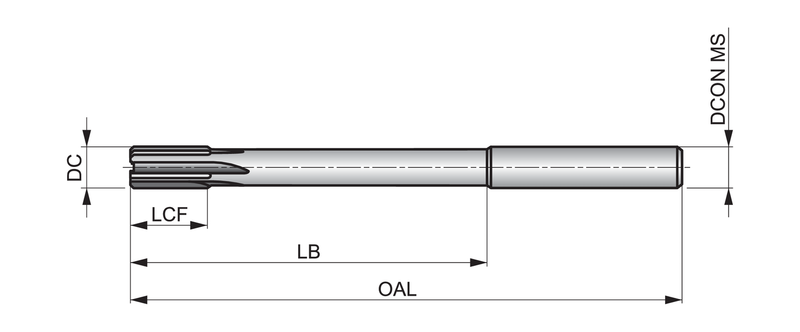

Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)5.9449"
Overall Length — mm (OAL)151.0 mm
Flute Length — mm (LCF)19.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 8050
Reference Numbers
EDP Number421109
EAN7320760421109
File Type Download
B44112.0 — Line Drawing PDF Download
