B44113.0

UGC DOR5987170
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
Prix d'origine $289.66 CAD - Prix d'origine $289.66 CAD
Prix d'origine
$289.66 CAD
$289.66 CAD - $289.66 CAD
Prix actuel $289.66 CAD

Vendu en lots de : 1

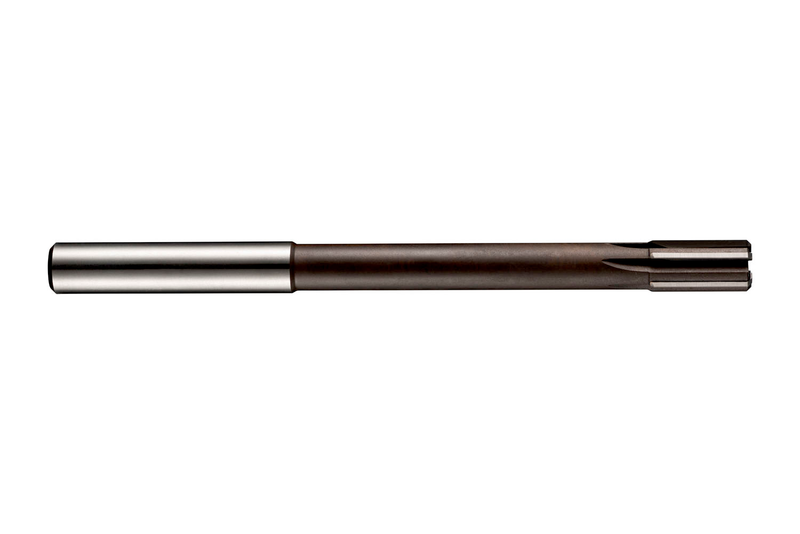

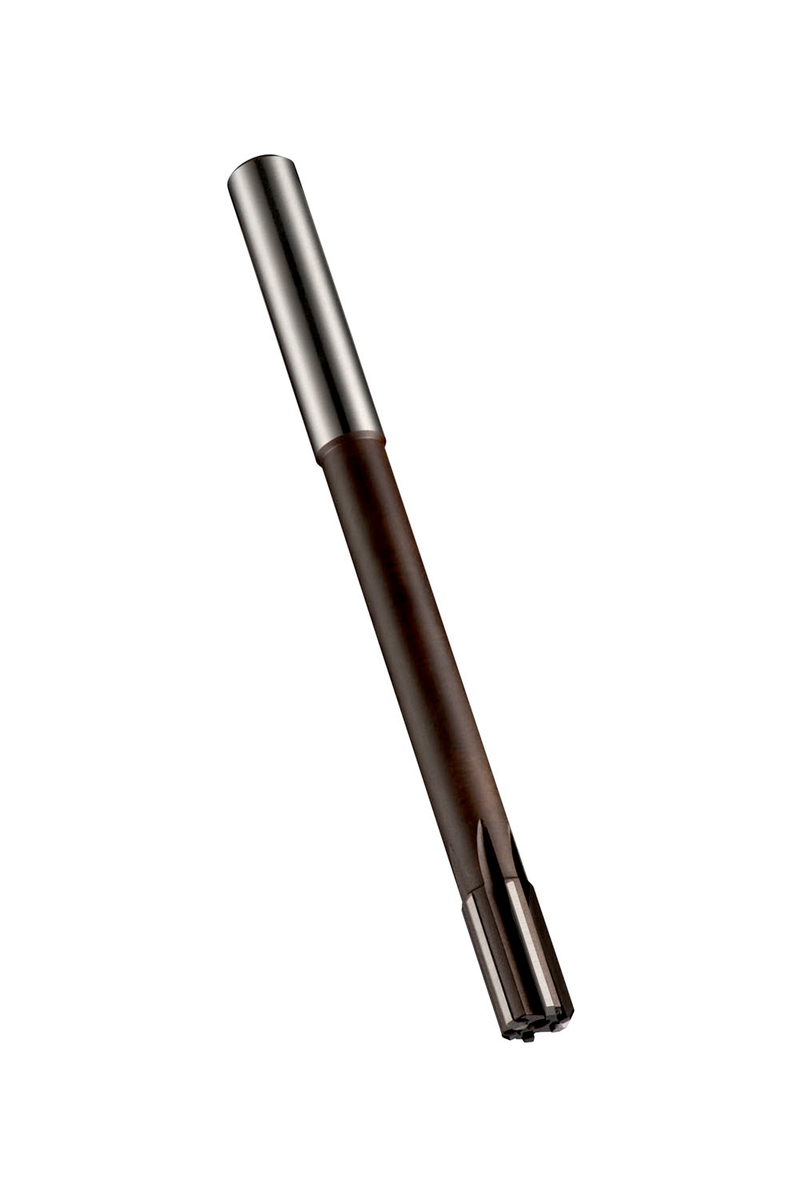

Alésoir machine à goujures droites à espacement extrêmement inégal et queue cylindrique, diamètre 13,00 mm avec une longueur totale de 151 mm, une longueur de goujure de 19 mm et un dégagement de 105 mm avec un dégagement de col, conforme à la norme DIN 8050 pour l'alésage de trous précis à la tolérance H7, à plaquettes carbure avec finition brillante pour l'usinage de l'acier doux, de l'acier au carbone non allié, de l'acier allié et de l'acier à outils, de la fonte grise, malléable, ductile et à graphite compacté, de l'aluminium et du cuivre ou de leurs alliages corroyés et coulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B44113.0
GradeLumineux
Product Number5987170
Product FamilyB441
Dimensions
Cutting Diameter — in (DC)0.5118"
Cutting Diameter — mm (DC)13.0 mm
Overall Length — in (OAL)5.9449"
Overall Length — mm (OAL)151.0 mm
Flute Length — mm (LCF)19.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 8050
Reference Numbers
EDP Number426302
EAN7320760426302
File Type Download

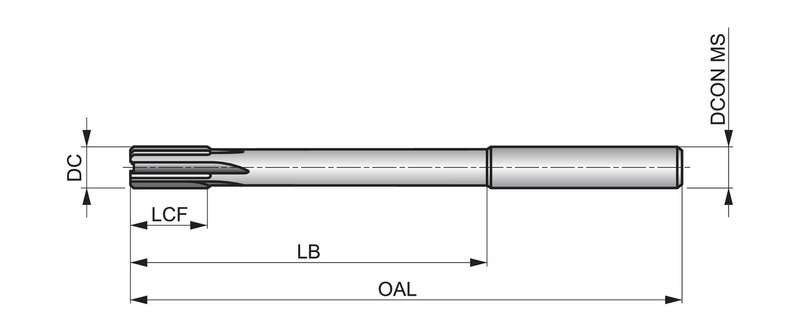

B44113.0 — Line Drawing PDF Download
