B44114.0
B44114.0
B44114.0

B44114.0

UGC DOR5987173
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$275.39 CAD - $275.39 CAD
$275.39 CAD
$275.39 CAD - $275.39 CAD
$275.39 CAD

Vendu en lots de : 1

Alésoir machine à queue cylindrique et à goujures droites à pas inégal extrême, diamètre 14,00 mm, longueur totale 160 mm, longueur de coupe 19 mm et portée de 110 mm avec dégagement de col, selon la norme DIN 8050 pour l'alesage de trous précis à la tolérance H7, à plaquettes carbure, finition brillante pour l'usinage de l'acier à usinage libre, l'acier au carbone, allié et à outils, la fonte grise, malléable, ductile et à graphite compacté, l'aluminium corroyé et moulé et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B44114.0
GradeLumineux
Product Number5987173
Product FamilyB441
Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)6.2992"
Overall Length — mm (OAL)160.0 mm
Flute Length — mm (LCF)19.0 mm
Connection Dia. — in (DCON)0.4921"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 8050
Reference Numbers
EDP Number421116
EAN7320760421116
File Type Download

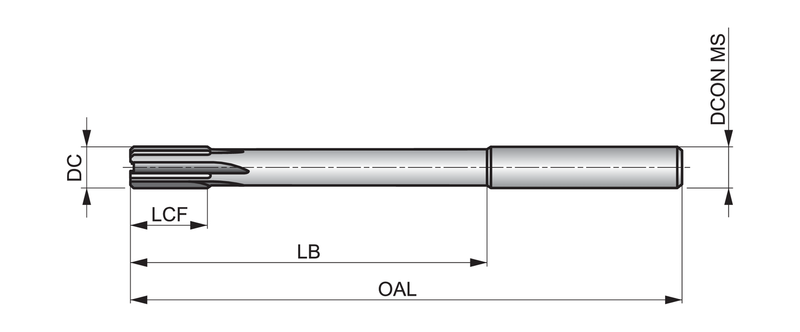

B44114.0 — Line Drawing PDF Download
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
