B44119.0

UGC DOR5987193
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
Prix d'origine $414.40 CAD - Prix d'origine $414.40 CAD
Prix d'origine
$414.40 CAD
$414.40 CAD - $414.40 CAD
Prix actuel $414.40 CAD

Vendu en lots de : 1

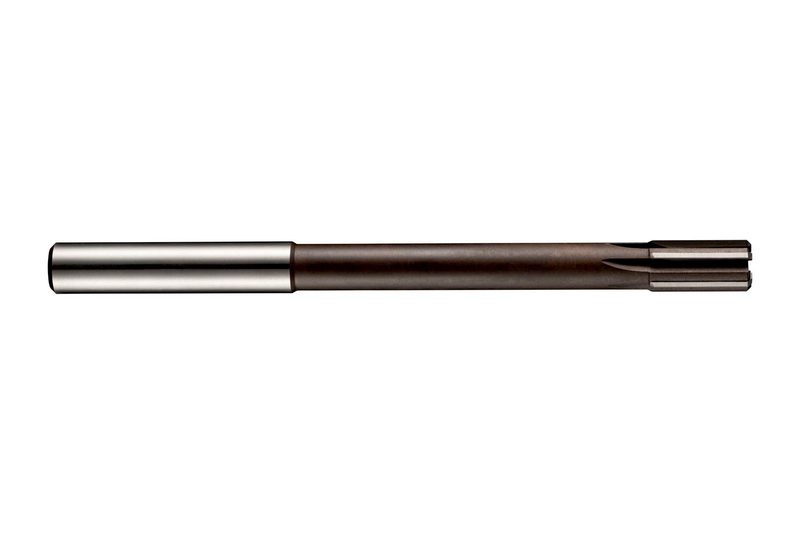

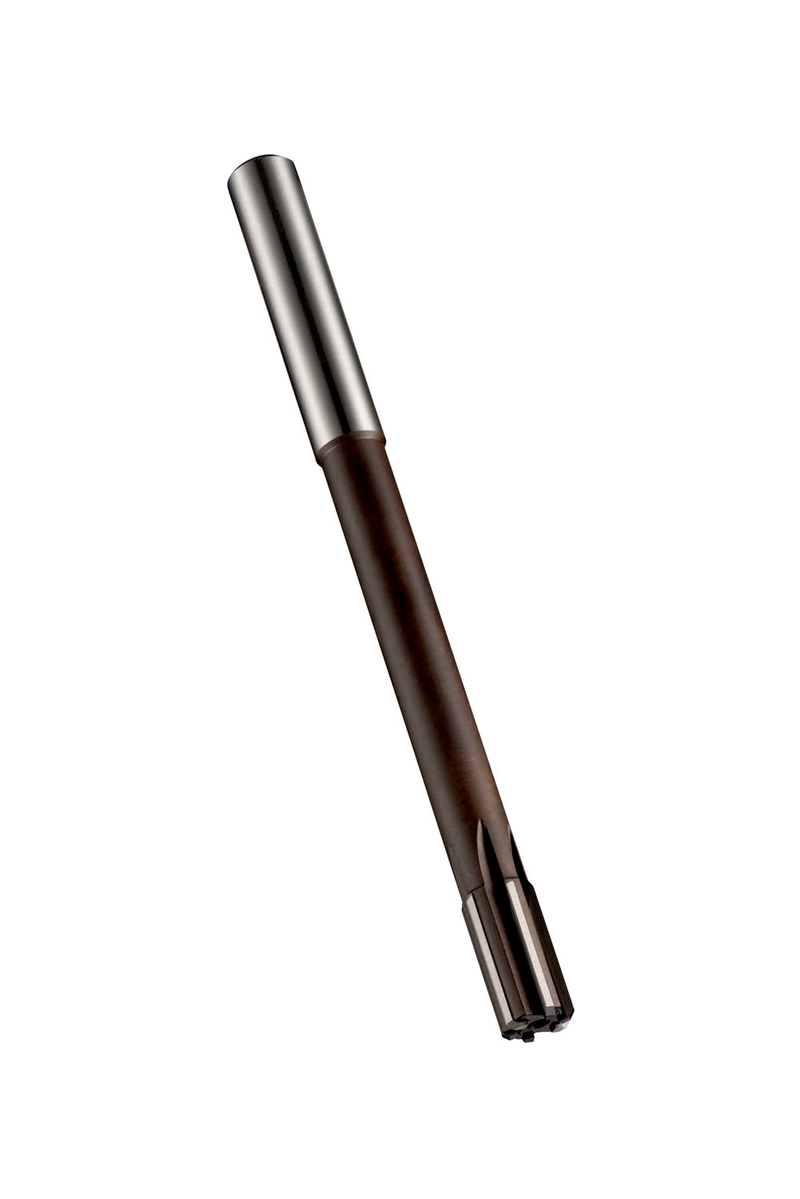

Alésoir machine à goujures droites à espacement extrêmement inégal et queue cylindrique, diamètre 19,00 mm avec une longueur totale de 189 mm, une longueur de goujure de 22 mm et une portée de 131 mm avec dégagement de col, selon la norme DIN 8050 pour l'alésage de trous précis avec une tolérance H7, à plaquettes carbure avec finition brillante pour l'usinage de l'acier à coupe libre, de l'acier au carbone non allié, de l'acier allié et de l'acier à outils, de la fonte grise, malléable, ductile et à graphite compacté, de l'aluminium corroyé et moulé et du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B44119.0
GradeLumineux
Product Number5987193
Product FamilyB441

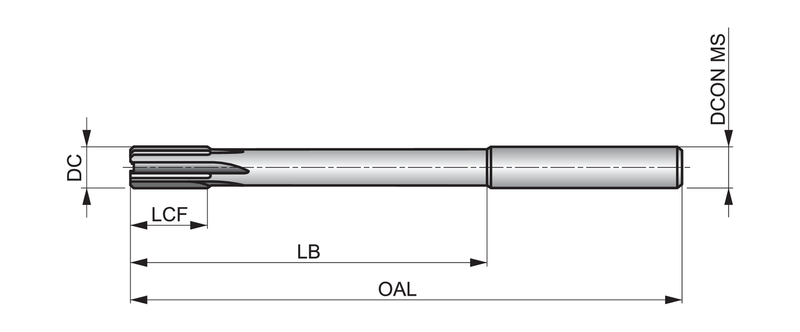

Dimensions
Cutting Diameter — in (DC)0.748"
Cutting Diameter — mm (DC)19.0 mm
Overall Length — in (OAL)7.4409"
Overall Length — mm (OAL)189.0 mm
Flute Length — mm (LCF)22.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 8050
Reference Numbers
EDP Number421161
EAN7320760421161
File Type Download
B44119.0 — Line Drawing PDF Download
