B4001.5
B4001.5
B4001.5
B4001.5

B4001.5

UGC DOR5987198
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$76.11 CAD - $76.11 CAD
$76.11 CAD
$76.11 CAD - $76.11 CAD
$76.11 CAD

Vendu en lots de : 1

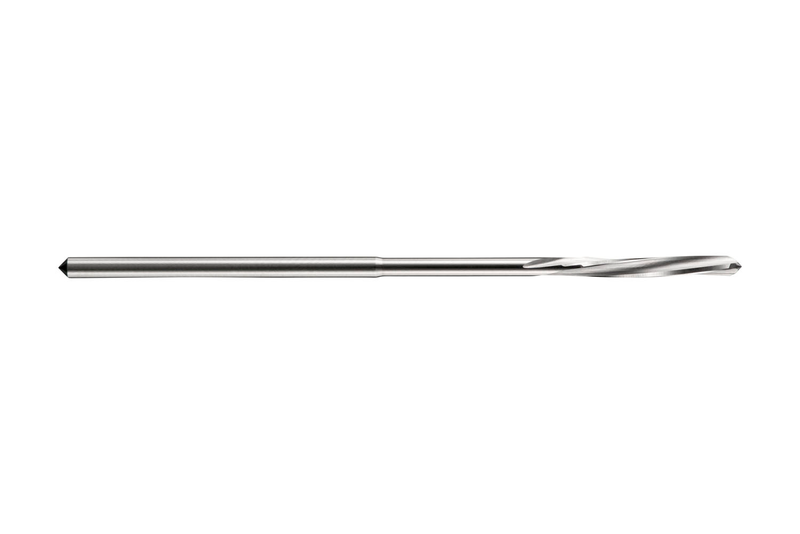

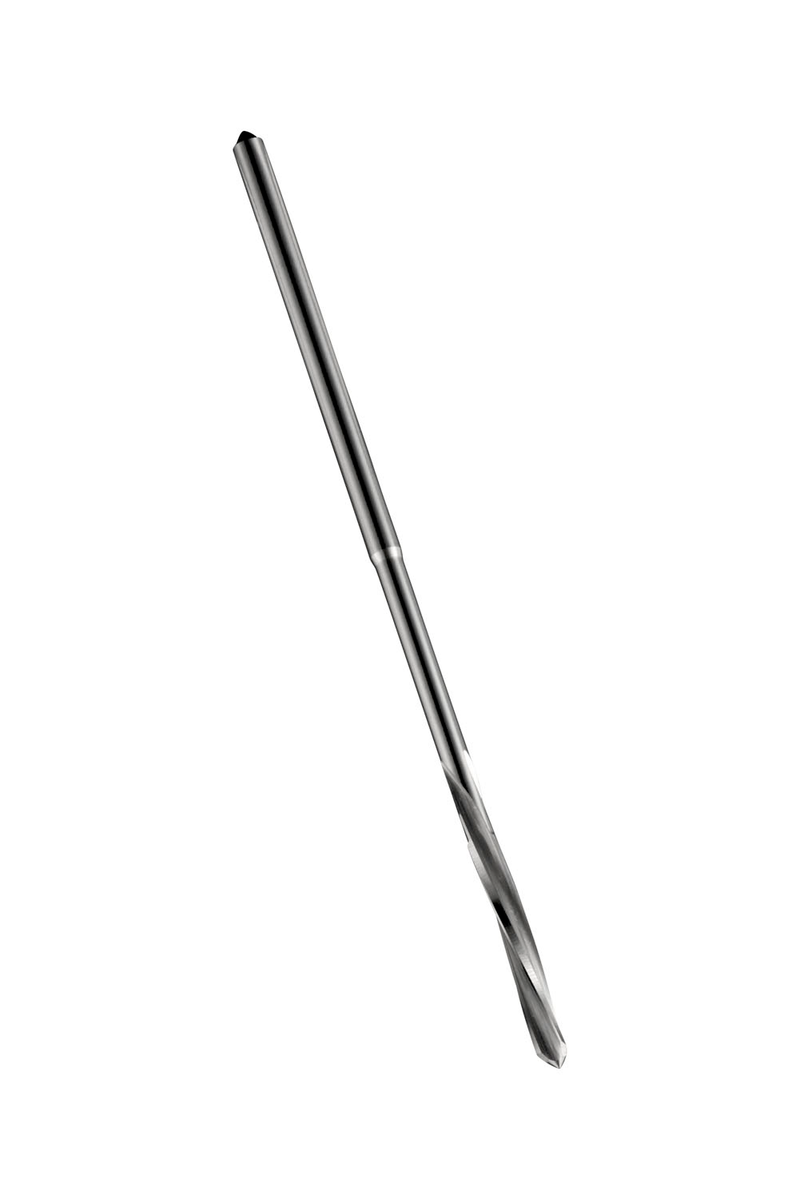

Alésoir machine à spirale lente à gauche, à pas extrêmement irrégulier et queue cylindrique, diamètre 1,50 mm, longueur totale 40 mm, longueur de coupe 8 mm et portée 18 mm avec dégagement de col, conforme à la norme DIN 8093 pour l'alé-sage de trous précis de tolérance H7, en carbure monobloc avec finition brillante pour l'usinage des aciers de décolletage, aciers au carbone, aciers alliés et aciers à outils, fontes grises, malléables, ductiles et à graphite compacté, aluminium et cuivre ou alliages de cuivre corroyés et coulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B4001.5
GradeLumineux
Product Number5987198
Product FamilyB400

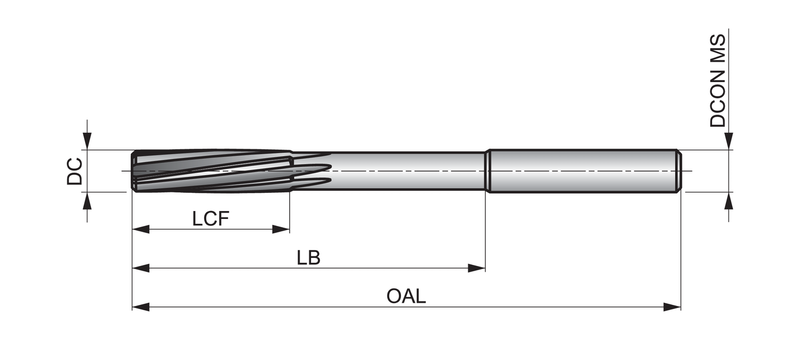

Dimensions
Cutting Diameter — in (DC)0.0591"
Cutting Diameter — mm (DC)1.5 mm
Overall Length — in (OAL)1.5748"
Overall Length — mm (OAL)40.0 mm
Flute Length — mm (LCF)8.0 mm
Connection Dia. — in (DCON)0.0591"
Connection Dia. — mm (DCON)1.5 mm
Number of Flutes (NOF)3
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 8093
Reference Numbers
EDP Number53010
EAN7320760053010
File Type Download
B4001.5 — Line Drawing PDF Download
