B44214.0

UGC DOR5987208
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
Prix d'origine $232.57 CAD - Prix d'origine $232.57 CAD
Prix d'origine
$232.57 CAD
$232.57 CAD - $232.57 CAD
Prix actuel $232.57 CAD

Vendu en lots de : 1

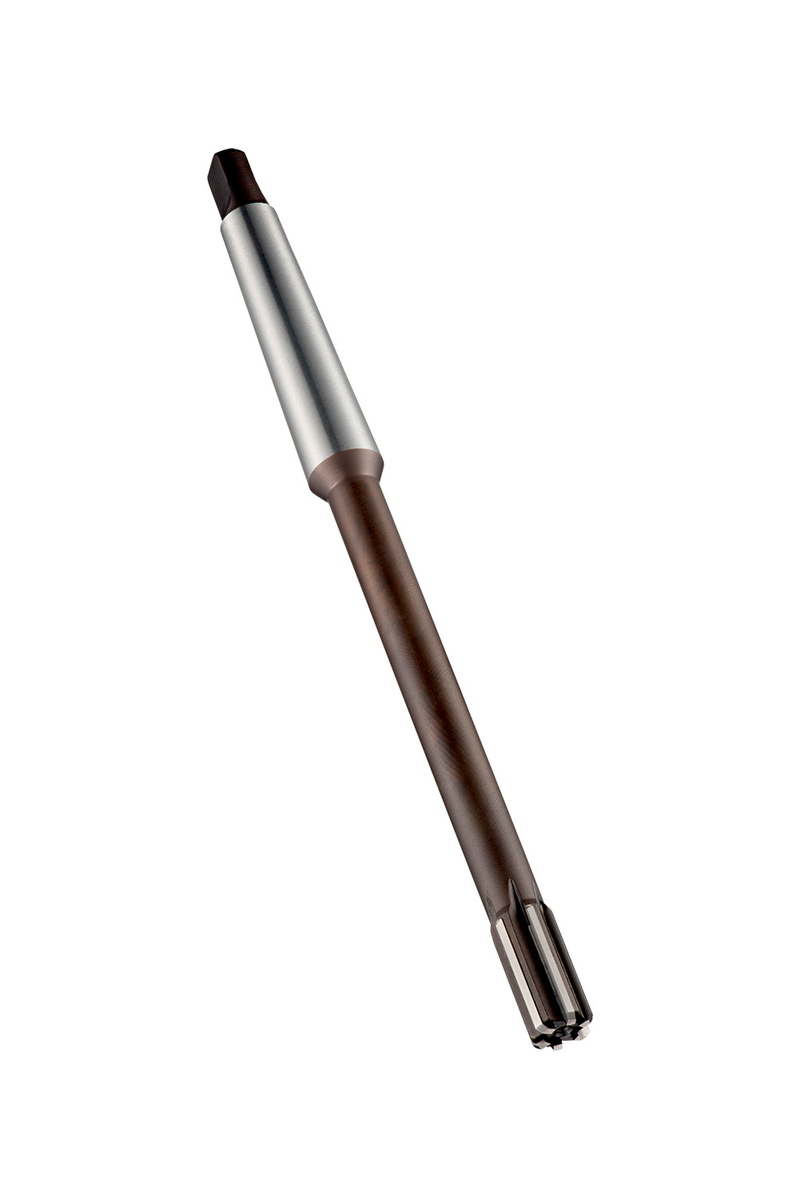

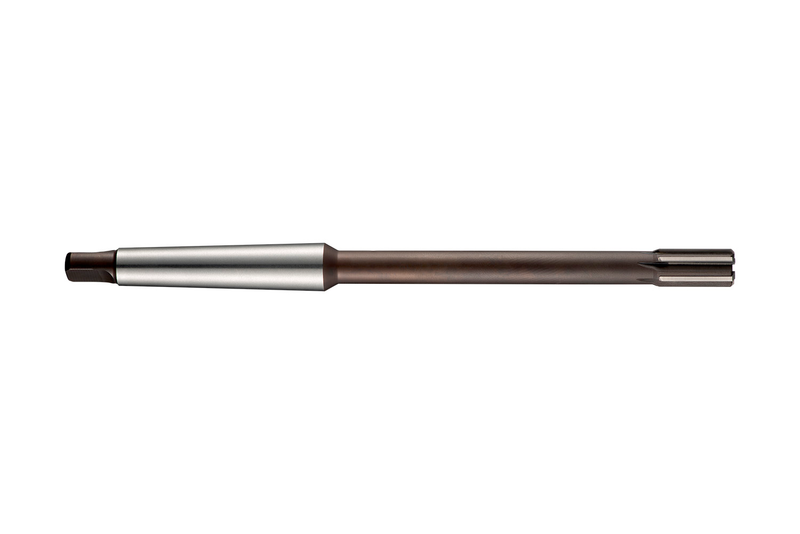

Alésoir machine à goujures droites à espacement extrêmement inégal et queue conique Morse, diamètre 14,00 mm avec une longueur totale de 189 mm, une longueur de goujure de 19 mm et une portée de 123,5 mm avec dégagement de col, selon la norme DIN 8051 pour l'alésage de trous précis à la tolérance H7, carbure monobloc avec finition brillante pour l'usinage de l'acier de décolletage, de l'acier au carbone non allié, de l'acier allié et de l'acier à outils, de la fonte grise, malléable, ductile et à graphite compacté, de l'aluminium et du cuivre ou des alliages de cuivre corroyés et coulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B44214.0
GradeLumineux
Product Number5987208
Product FamilyB442
Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)7.4409"
Overall Length — mm (OAL)189.0 mm
Flute Length — mm (LCF)19.0 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 8051
Reference Numbers
EDP Number421208
EAN7320760421208
File Type Download

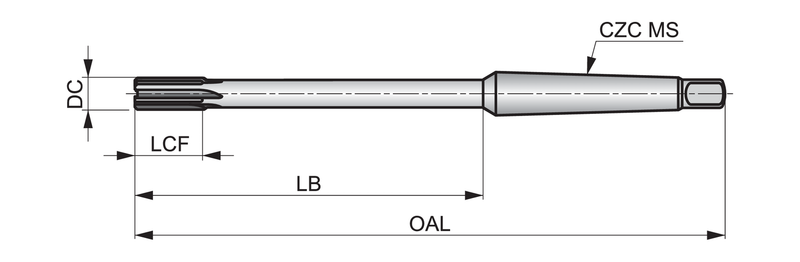

B44214.0 — Line Drawing PDF Download
