B4815.02
B4815.02
B4815.02
B4815.02

B4815.02

UGC DOR5987577
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$231.51 CAD - $231.51 CAD
$231.51 CAD
$231.51 CAD - $231.51 CAD
$231.51 CAD

Vendu en lots de : 1

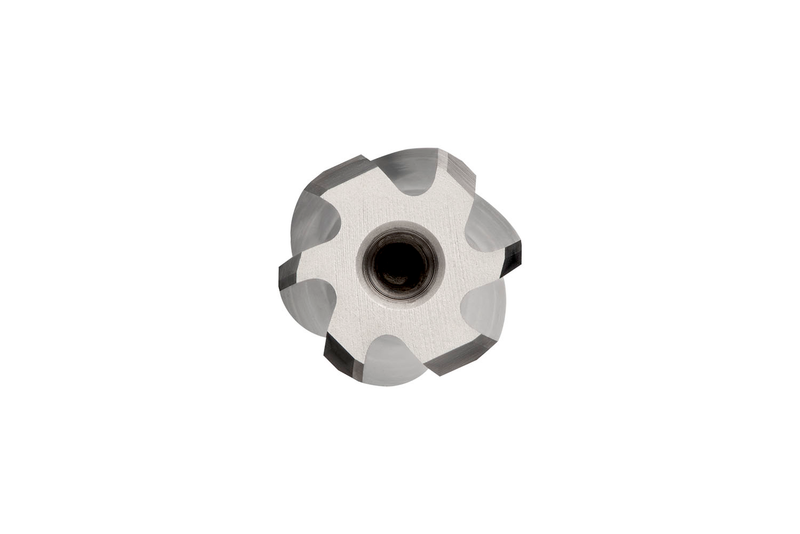

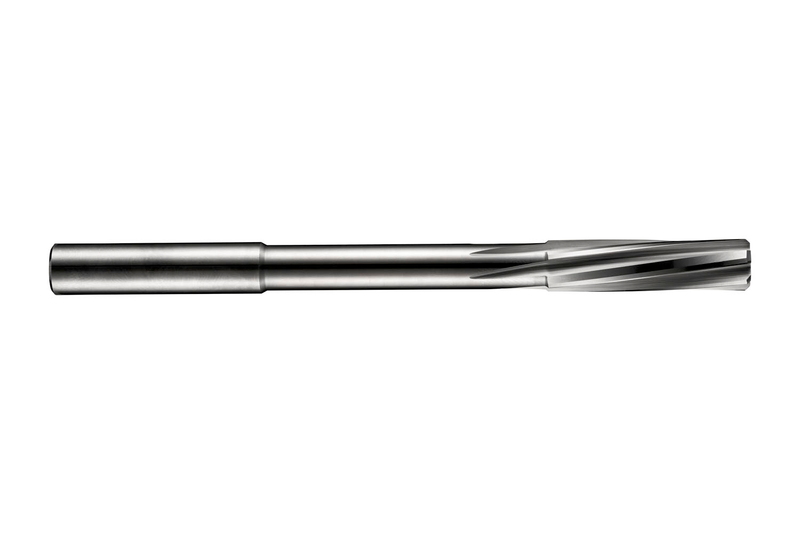

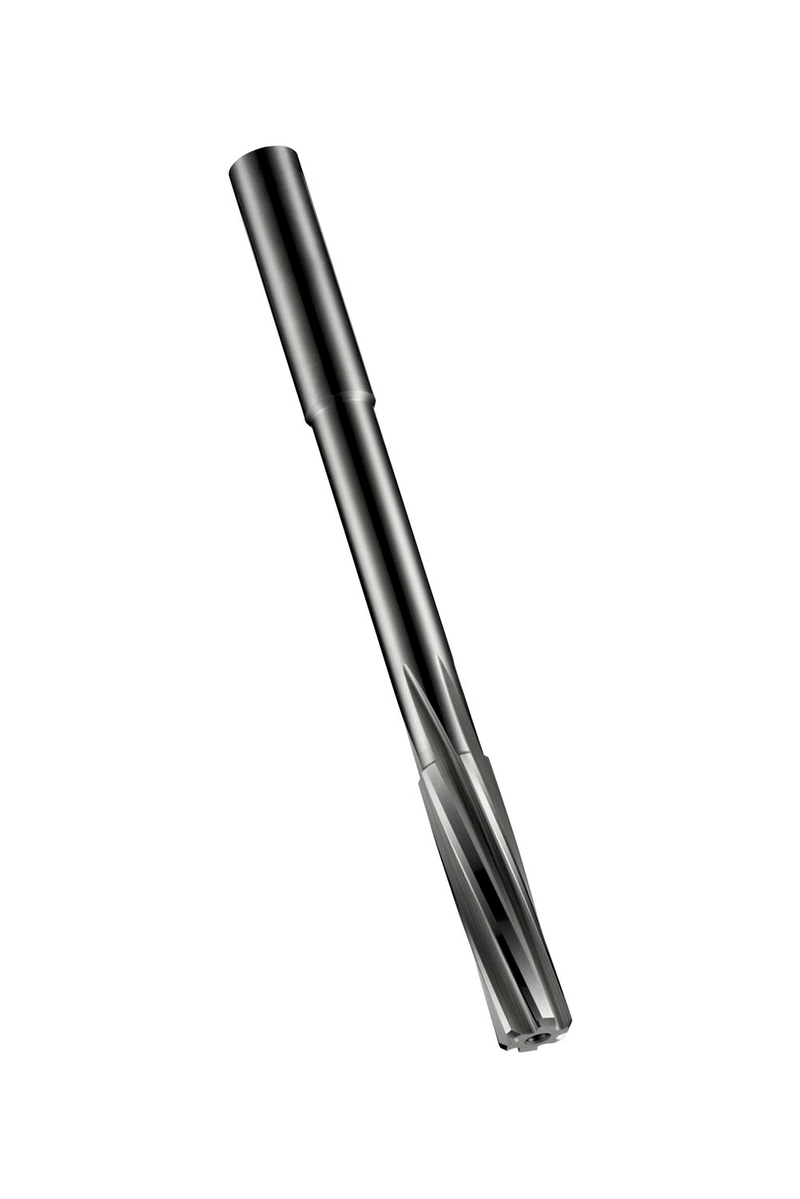

Alésoir centésimal à hélice lente à gauche, à pas extrêmement inégal et à queue cylindrique, diamètre 5,02 mm, longueur totale 93 mm, longueur de coupe 23 mm et portée 57 mm avec dégagement de col, selon la norme DIN 8093 avec une tolérance de diamètre de 0/+0,004 mm pour la production de trous de tolérance de diamètre 5F8 ou 5H9, tête carbure finition brillante pour l'usinage d'aciers doux, aciers au carbone, alliés et outils, fontes grises, malléables, ductiles et à graphite compacté, aluminium et cuivre ou alliages de cuivre corroyés et moulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B4815.02
GradeLumineux
Product Number5987577
Product FamilyB481

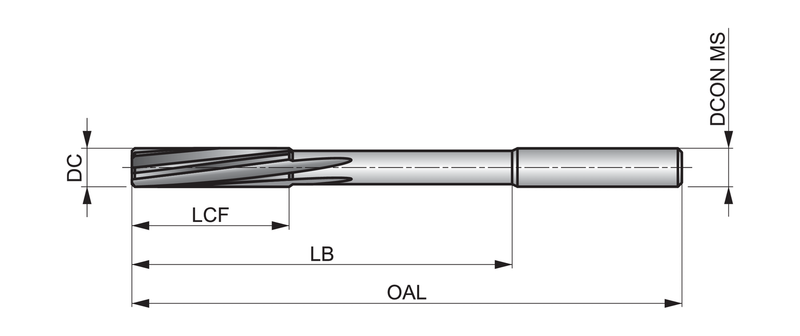

Dimensions
Cutting Diameter — in (DC)0.1976"
Cutting Diameter — mm (DC)5.02 mm
Overall Length — in (OAL)3.6614"
Overall Length — mm (OAL)93.0 mm
Flute Length — mm (LCF)23.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
StandardDIN 8093
Reference Numbers
EDP Number422144
EAN7320760422144
File Type Download
B4815.02 — Line Drawing PDF Download
