H85312.5
H85312.5
H85312.5
H85312.5

H85312.5

UGC DOR5987969
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$434.00 CAD - $434.00 CAD
$434.00 CAD
$434.00 CAD - $434.00 CAD
$434.00 CAD

Vendu en lots de : 1

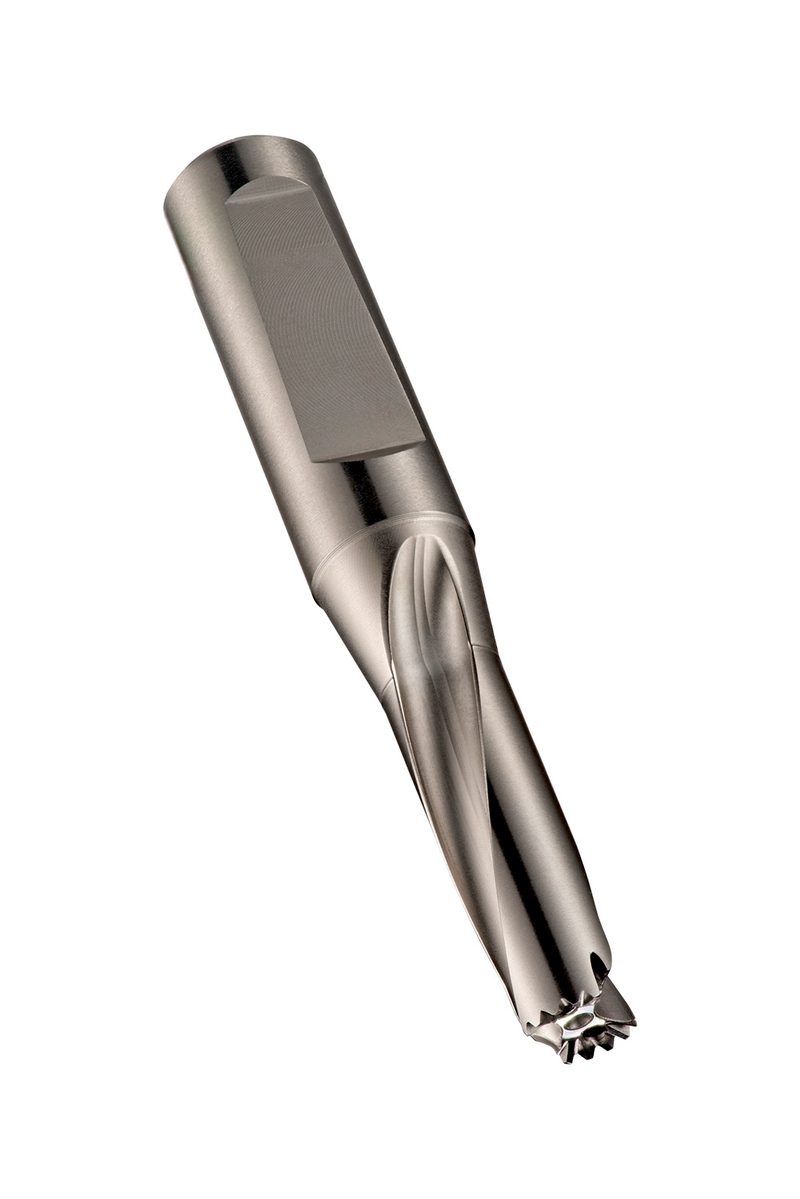

Corps de foret à têtes interchangeables HYDRA avec queue sifflet NC DIN 6535HE, taille 12,5 mm avec une longueur totale de 105 mm et une longueur de goujure de 44 mm selon la norme DORMER pour un perçage 3xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 12,5 à 12,9 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85312.5
GradePlaqué nickel
Product Number5987969
Product FamilyH853

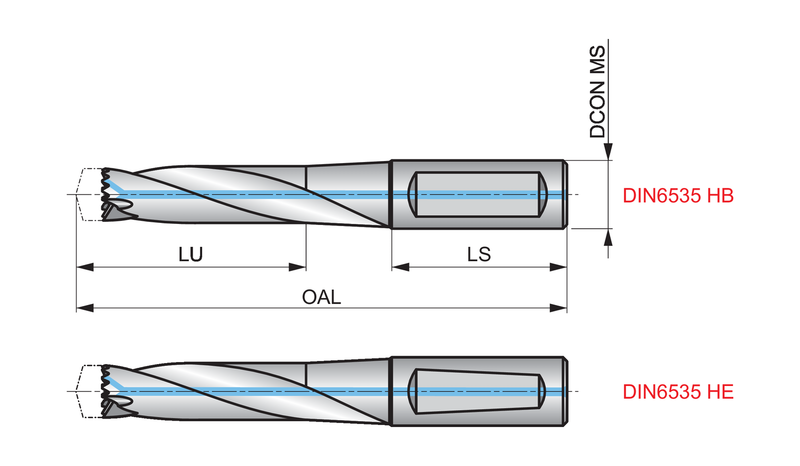

Dimensions
Overall Length — in (OAL)4.1339"
Overall Length — mm (OAL)105.0 mm
Length × Diameter Ratio3
Usable Length — in (LU)1.7323"
Usable Length — mm (LU)44.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number17791
EAN7320760017791
File Type Download
H85312.5 — 3D Model STP Download
H85312.5 — 2D Model DXF Download
H85312.5 — Line Drawing PDF Download
