H85327/32
H85327/32
H85327/32
H85327/32

H85327/32

UGC DOR5988045
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$540.00 CAD - $540.00 CAD
$540.00 CAD
$540.00 CAD - $540.00 CAD
$540.00 CAD

Vendu en lots de : 1

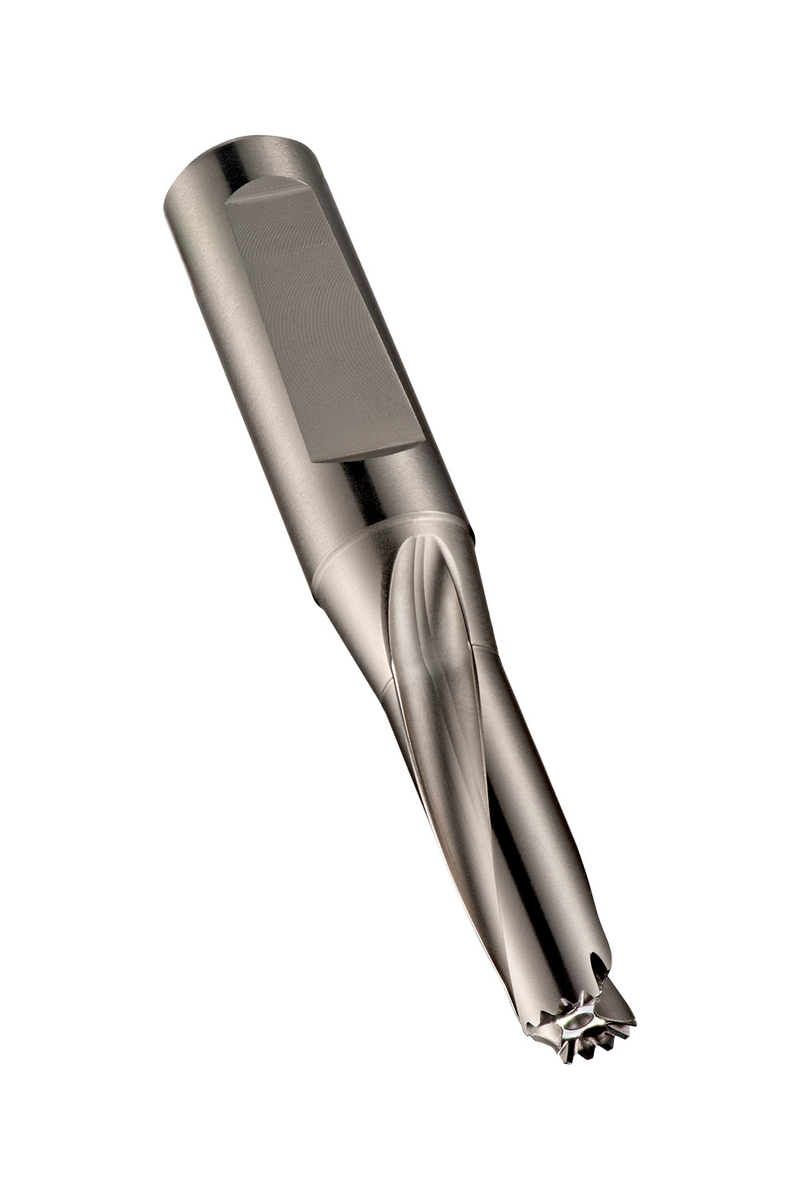

Corps de foret à tête interchangeable HYDRA avec queue cylindrique DIN 6535HE avec méplat, taille 27/32" avec une longueur totale de 156,5 mm et une longueur de coupe de 76,5 mm selon la norme DORMER pour le perçage 3xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 0,8125 (13/16) jusqu'à 0,8465"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85327/32
GradePlaqué nickel
Product Number5988045
Product FamilyH853

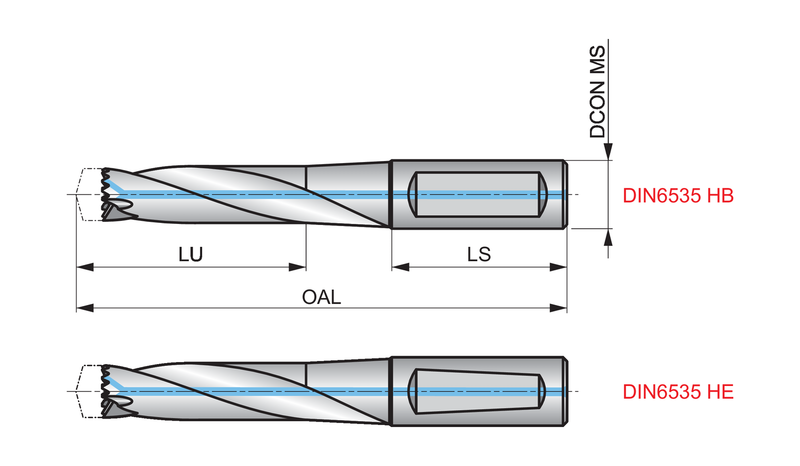

Dimensions
Overall Length — in (OAL)6.1614"
Overall Length — mm (OAL)156.5 mm
Length × Diameter Ratio3
Usable Length — in (LU)3.0118"
Usable Length — mm (LU)76.5 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.4 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number33142
EAN7320760033142
File Type Download
H85327/32 — 3D Model STP Download
H85327/32 — 2D Model DXF Download
H85327/32 — Line Drawing PDF Download
