H85329.0
H85329.0
H85329.0
H85329.0

H85329.0

UGC DOR5988057
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$648.00 CAD - $648.00 CAD
$648.00 CAD
$648.00 CAD - $648.00 CAD
$648.00 CAD

Vendu en lots de : 1

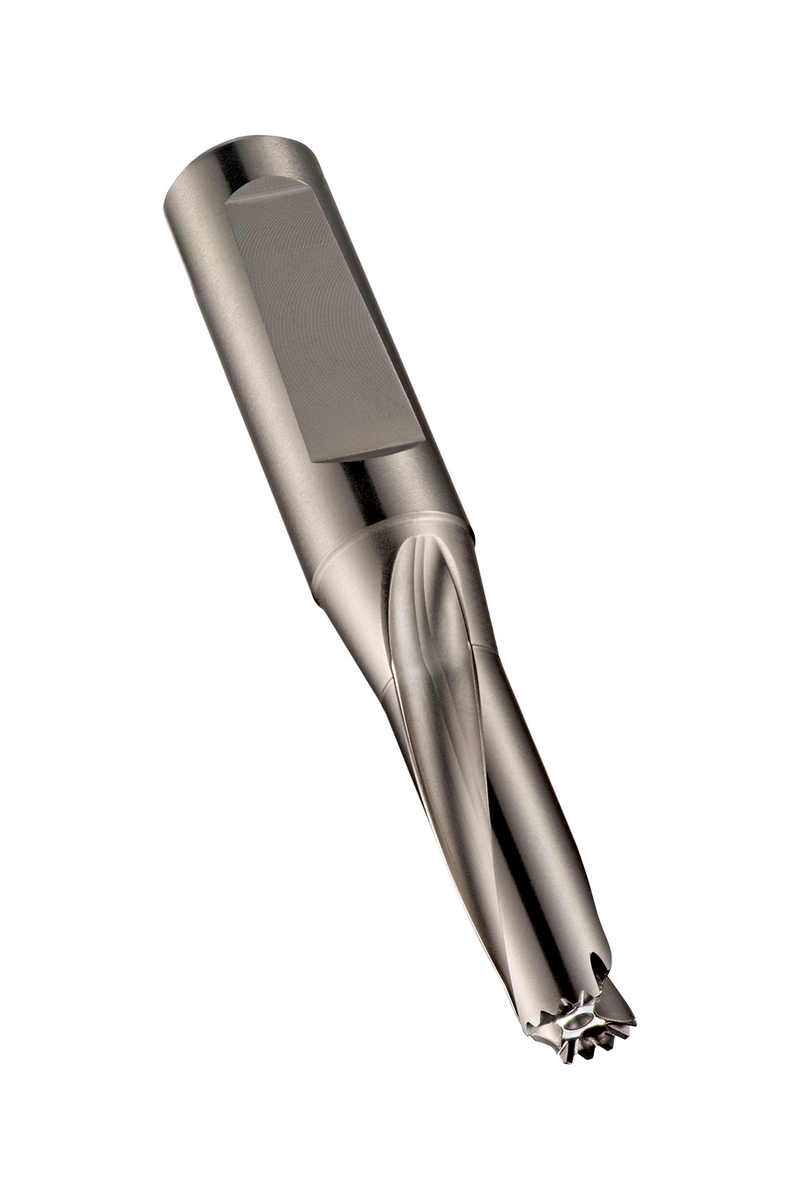

Corps de foret à tête interchangeable HYDRA avec queue de sifflet DIN 6535HE NC, taille 29,0 mm avec une longueur totale de 185 mm et une longueur de goujure de 100 mm selon la norme DORMER pour un perçage 3xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 28,97 à 29,77 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85329.0
GradePlaqué nickel
Product Number5988057
Product FamilyH853

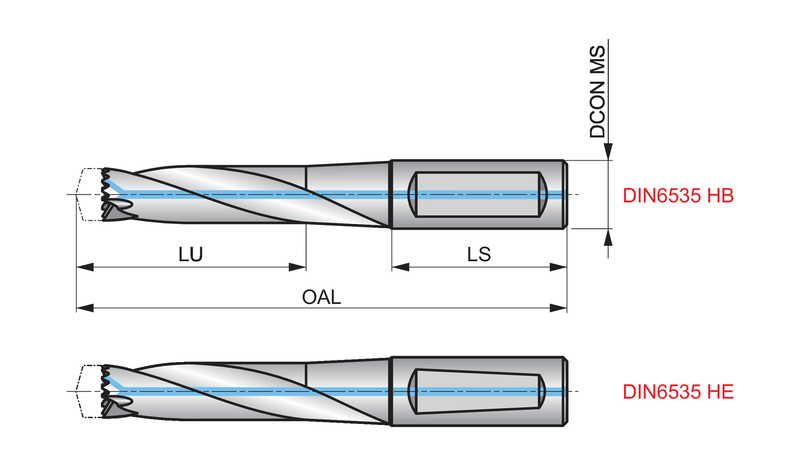

Dimensions
Overall Length — in (OAL)7.2835"
Overall Length — mm (OAL)185.0 mm
Length × Diameter Ratio3
Usable Length — in (LU)3.937"
Usable Length — mm (LU)100.0 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number18446
EAN7320760018446
File Type Download
H85329.0 — 3D Model STP Download
H85329.0 — 2D Model DXF Download
H85329.0 — Line Drawing PDF Download
