H8551.1/8
H8551.1/8
H8551.1/8
H8551.1/8

H8551.1/8

UGC DOR5988097
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$729.00 CAD - $729.00 CAD
$729.00 CAD
$729.00 CAD - $729.00 CAD
$729.00 CAD

Vendu en lots de : 1

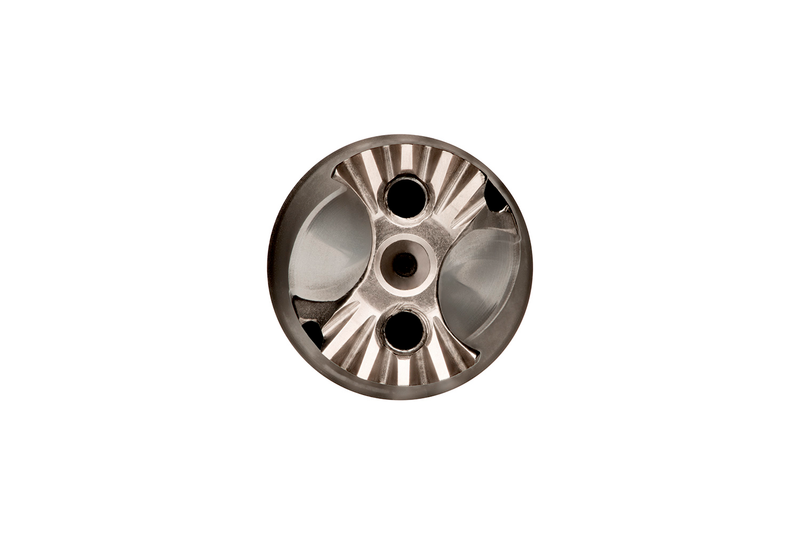

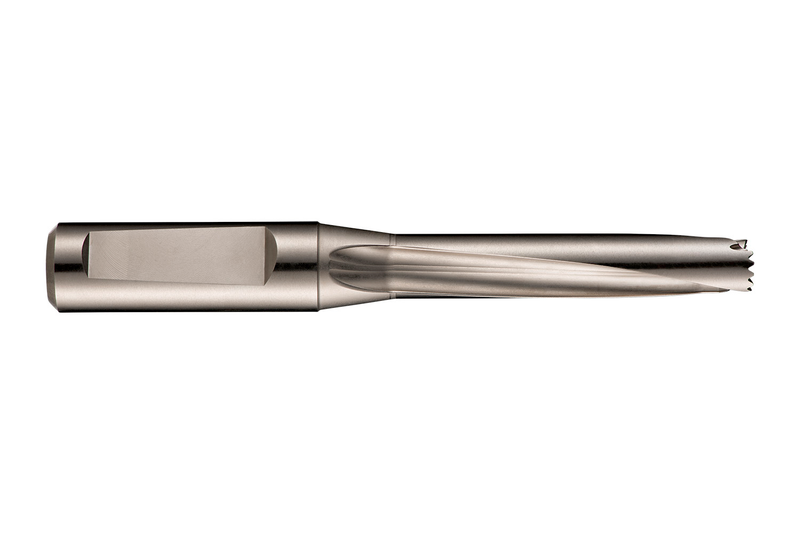

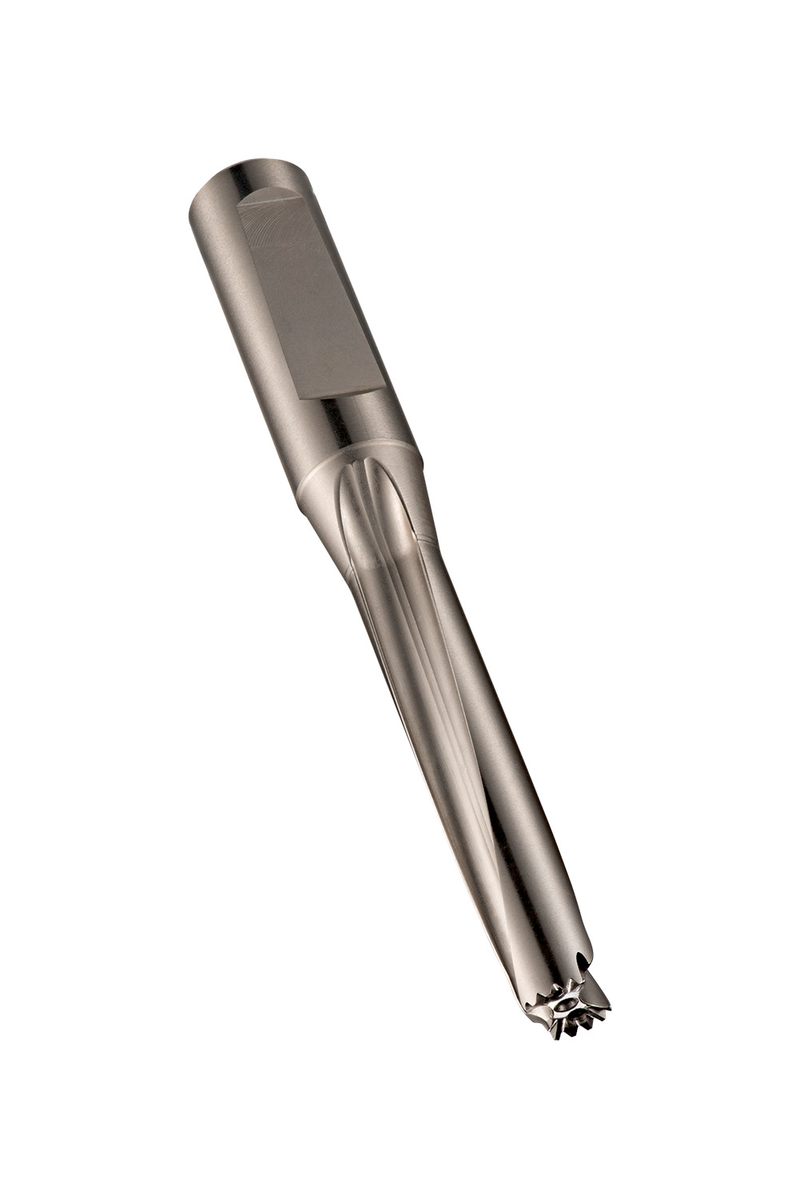

Corps de foret à têtes interchangeables HYDRA avec queue cylindrique DIN 6535HE NC, taille 1.1/8" avec une longueur totale de 240mm et une longueur de goujure de 157mm selon la norme DORMER pour le perçage 5xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 1.1024 jusqu'à 1.1250" (1.1/8)

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H8551.1/8
GradePlaqué nickel
Product Number5988097
Product FamilyH855

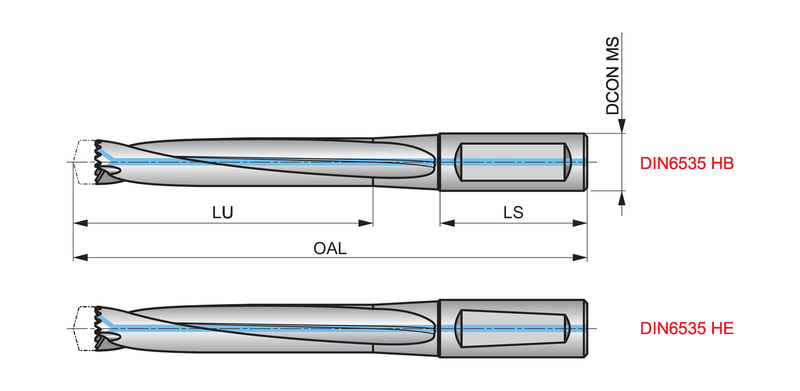

Dimensions
Overall Length — in (OAL)9.4488"
Overall Length — mm (OAL)240.0 mm
Length × Diameter Ratio5
Usable Length — in (LU)6.1811"
Usable Length — mm (LU)157.0 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)31.75 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number34903
EAN7320760034903
File Type Download
H8551.1/8 — 3D Model STP Download
H8551.1/8 — 2D Model DXF Download
H8551.1/8 — Line Drawing PDF Download
