H8551.3/32
H8551.3/32
H8551.3/32
H8551.3/32

H8551.3/32

UGC DOR5988104
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$720.00 CAD - $720.00 CAD
$720.00 CAD
$720.00 CAD - $720.00 CAD
$720.00 CAD

Vendu en lots de : 1

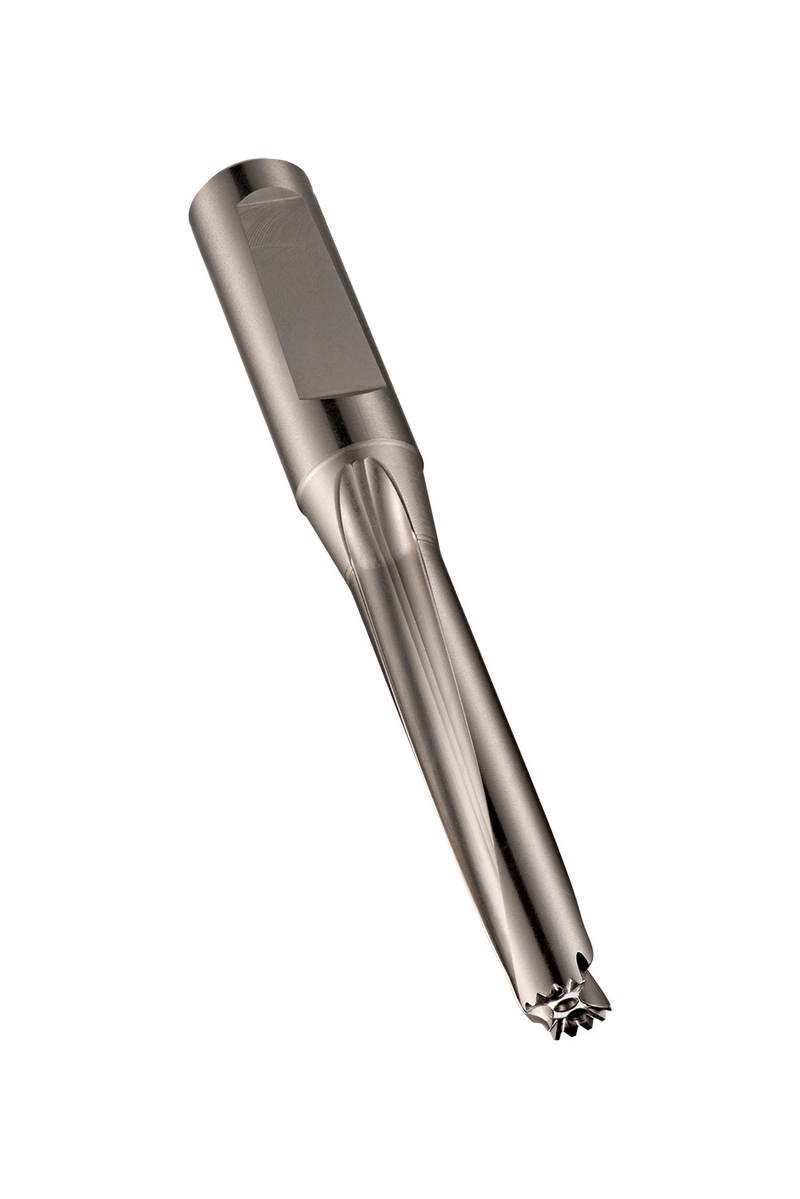

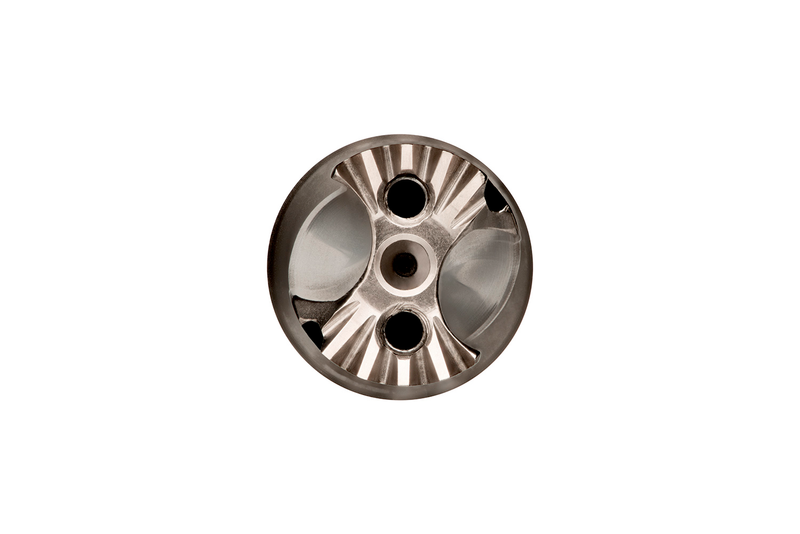

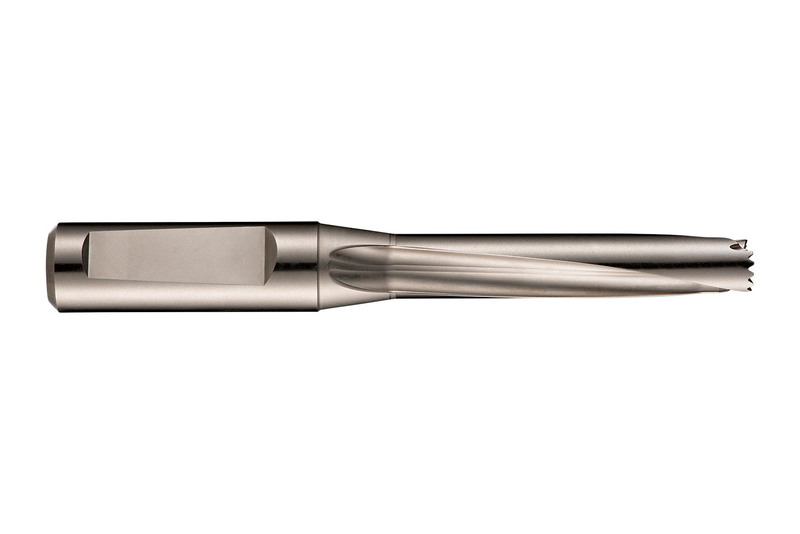

Corps de foret à têtes interchangeables HYDRA avec queue DIN 6535HE NC avec encoche, taille 1.3/32" avec une longueur totale de 235mm et une longueur de coupe de 151mm selon la norme DORMER pour le perçage 5xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 1.0625 (1.1/16) jusqu'à 1.0938" (1.3/32)

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H8551.3/32
GradePlaqué nickel
Product Number5988104
Product FamilyH855

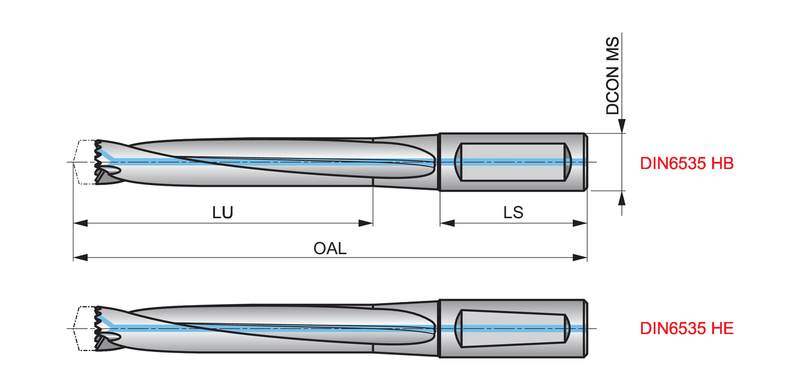

Dimensions
Overall Length — in (OAL)9.252"
Overall Length — mm (OAL)235.0 mm
Length × Diameter Ratio5
Usable Length — in (LU)5.9449"
Usable Length — mm (LU)151.0 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)31.75 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number34897
EAN7320760034897
File Type Download
H8551.3/32 — 3D Model STP Download
H8551.3/32 — 2D Model DXF Download
H8551.3/32 — Line Drawing PDF Download
