H85512.0
H85512.0
H85512.0
H85512.0

H85512.0

UGC DOR5988115
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$513.00 CAD - $513.00 CAD
$513.00 CAD
$513.00 CAD - $513.00 CAD
$513.00 CAD

Vendu en lots de : 1

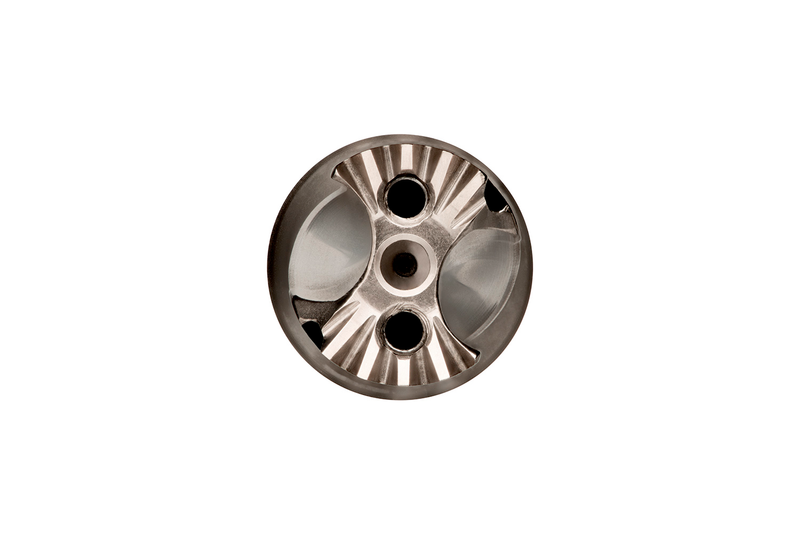

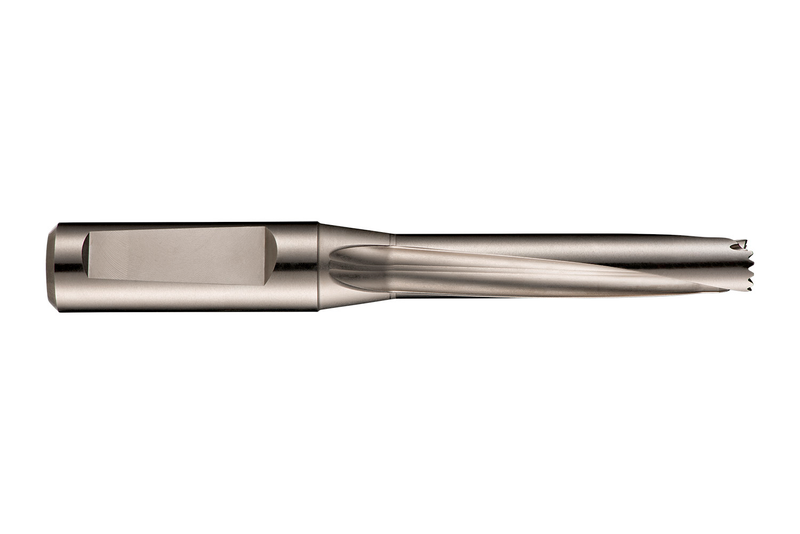

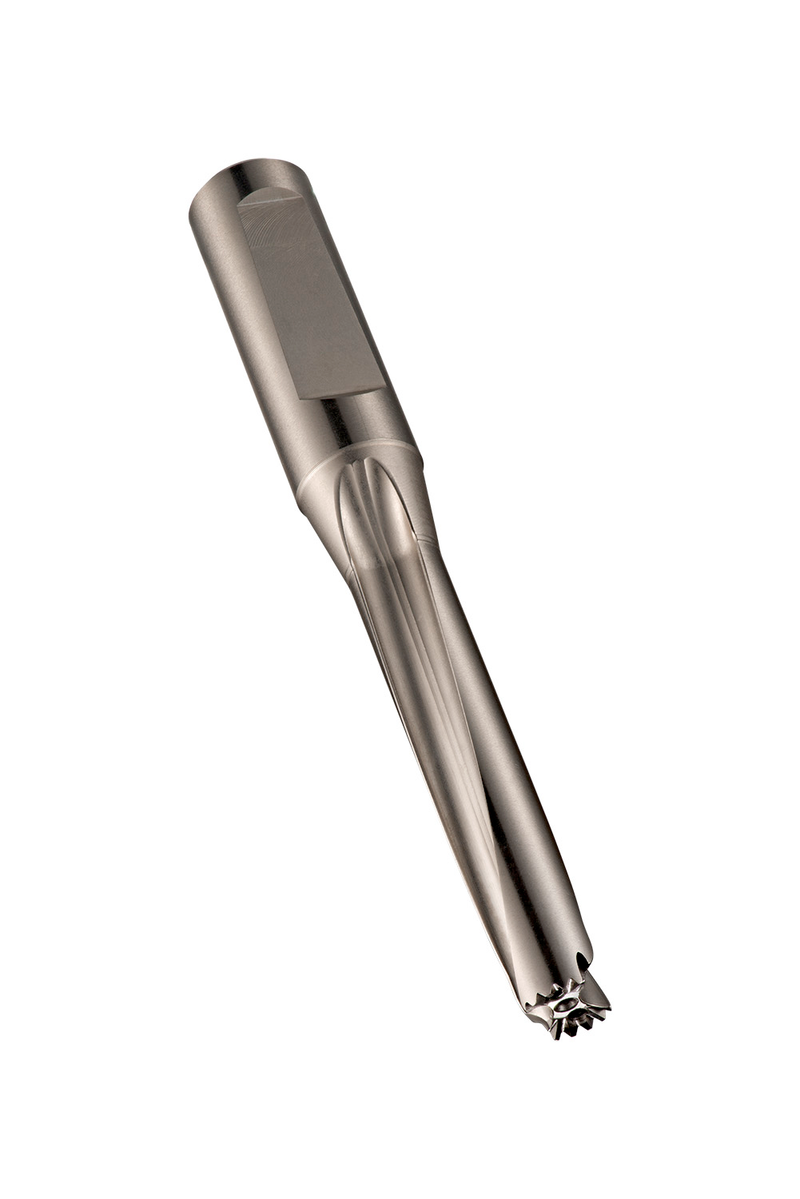

Corps de foret à tête interchangeable HYDRA avec queue cylindrique DIN 6535HE à encoche pour vis de blocage, taille 12,0 mm, d'une longueur totale de 130 mm et d'une longueur utile de 69 mm, selon la norme DORMER pour le perçage en 5xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 11,91 à 12,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85512.0
GradePlaqué nickel
Product Number5988115
Product FamilyH855

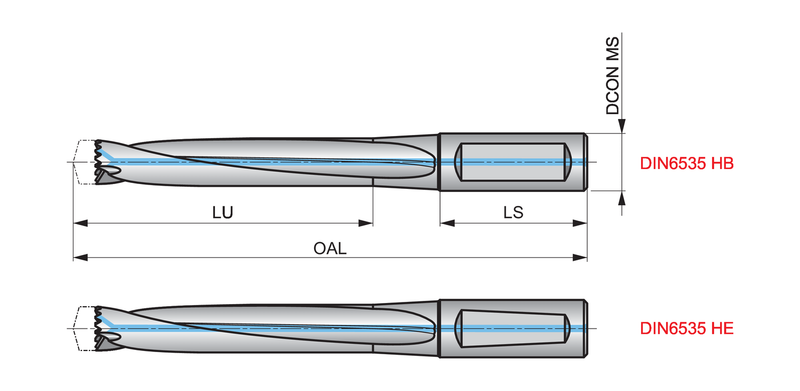

Dimensions
Overall Length — in (OAL)5.1181"
Overall Length — mm (OAL)130.0 mm
Length × Diameter Ratio5
Usable Length — in (LU)2.7165"
Usable Length — mm (LU)69.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number18460
EAN7320760018460
File Type Download
H85512.0 — 3D Model STP Download
H85512.0 — 2D Model DXF Download
H85512.0 — Line Drawing PDF Download
