H8531.3/64
H8531.3/64
H8531.3/64
H8531.3/64

H8531.3/64

UGC DOR5988123
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$609.00 CAD - $609.00 CAD
$609.00 CAD
$609.00 CAD - $609.00 CAD
$609.00 CAD

Vendu en lots de : 1

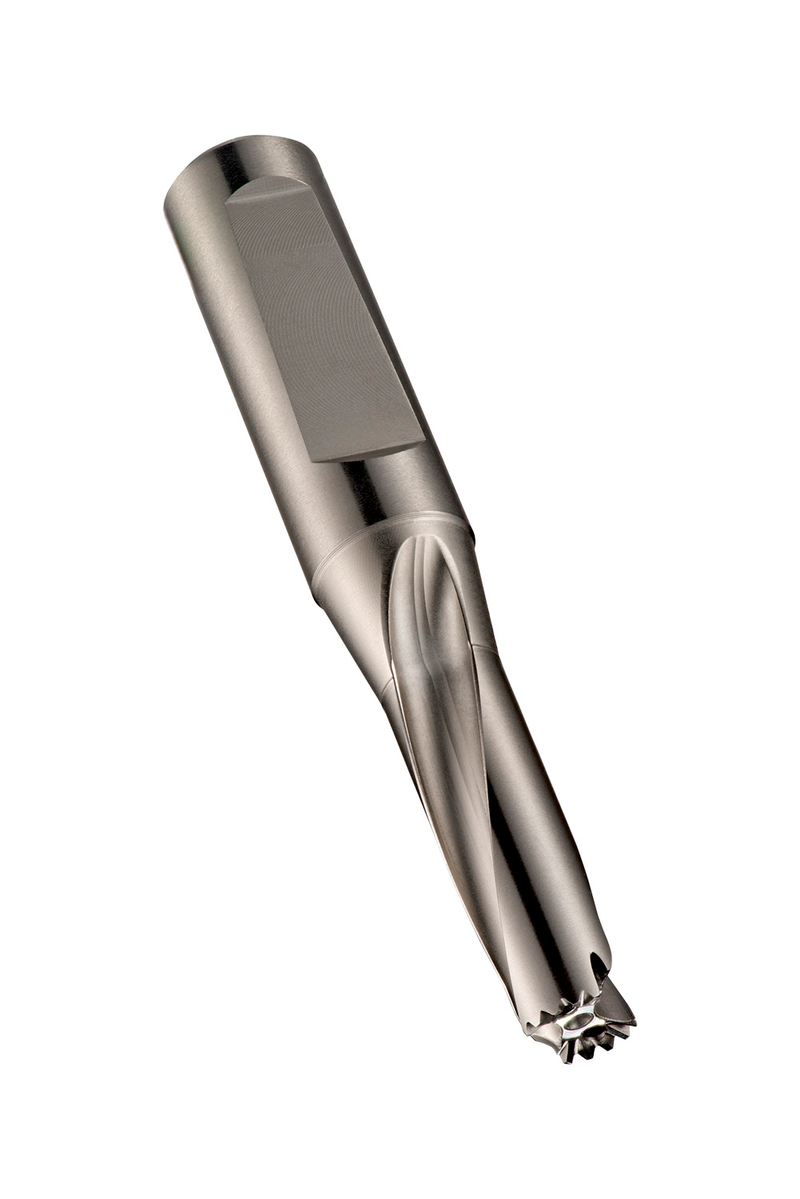

Corps de foret à têtes interchangeables HYDRA avec queue DIN 6535HE NC à encoche en sifflet, taille 1.3/64" avec une longueur totale de 175mm et une longueur de goujure de 92mm selon la norme DORMER pour le perçage 3xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 1.0236 jusqu'à 1.0469" (1.3/64)

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H8531.3/64
GradePlaqué nickel
Product Number5988123
Product FamilyH853

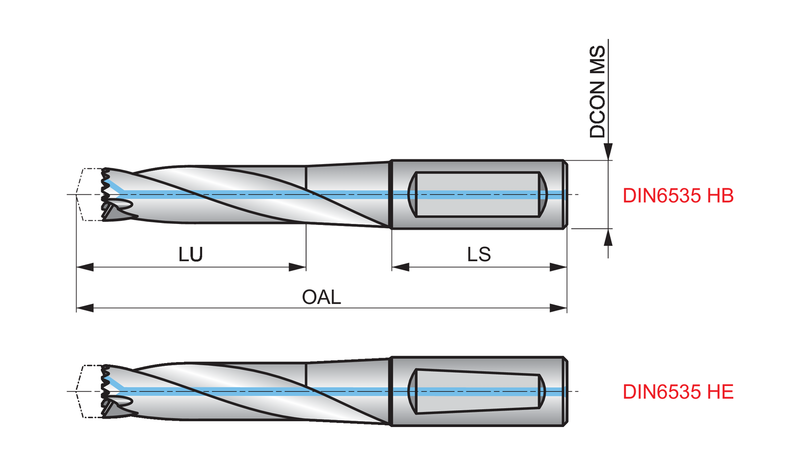

Dimensions
Overall Length — in (OAL)6.8898"
Overall Length — mm (OAL)175.0 mm
Length × Diameter Ratio3
Usable Length — in (LU)3.622"
Usable Length — mm (LU)92.0 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)31.75 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number33197
EAN7320760033197
File Type Download
H8531.3/64 — 3D Model STP Download
H8531.3/64 — 2D Model DXF Download
H8531.3/64 — Line Drawing PDF Download
