R96022.5
R96022.5
R96022.5

R96022.5

UGC DOR5988453
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$177.43 CAD - $177.43 CAD
$177.43 CAD
$177.43 CAD - $177.43 CAD
$177.43 CAD

Vendu en lots de : 1

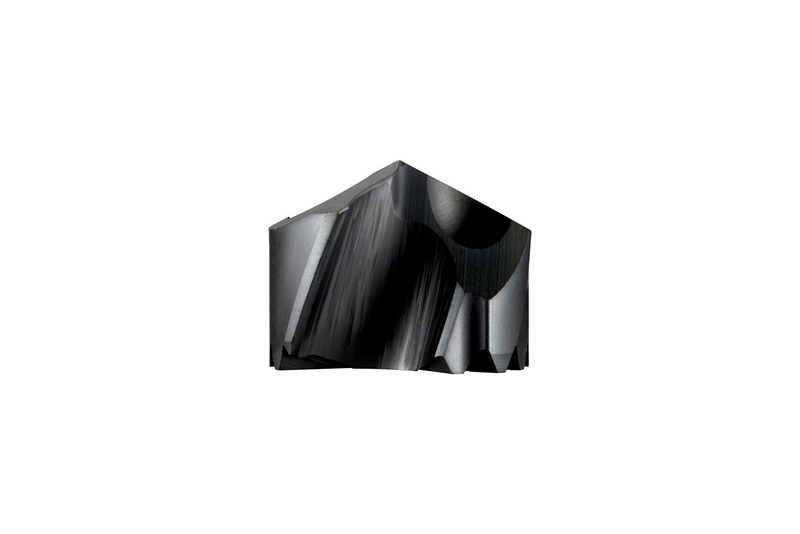

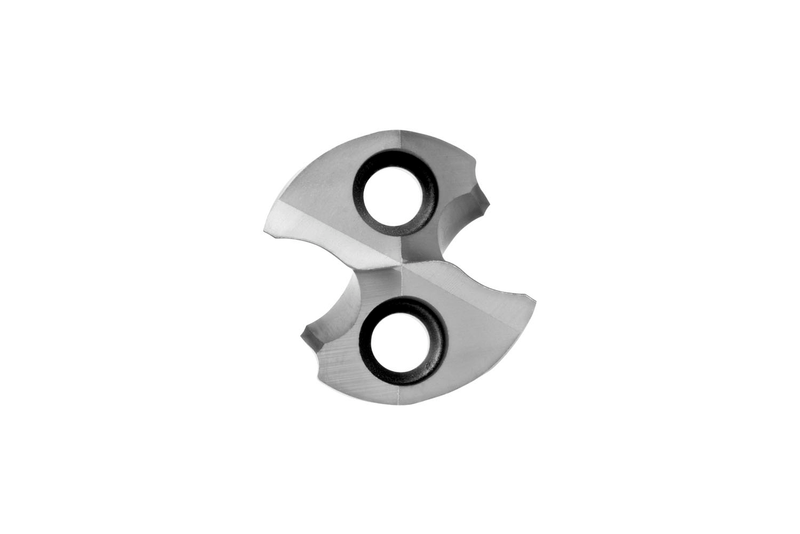

Tête de perçage remplaçable haute performance HYDRA M, diamètre 22,5 mm selon la norme DORMER avec une pointe divisée à 4 facettes modifiée à 140°, en carbure monobloc avec revêtement Ti-phon pour le perçage de l'acier inoxydable en combinaison avec le corps HYDRA de taille 22 mm ou 57/64", H853 pour jusqu'à 3xD, H855 pour jusqu'à 5xD ou H858 pour jusqu'à 8xD

For more information about this product, click here

Identification
Ordering Code (ANSI)R96022,5
Product Name (ISO)R96022.5
GradeTi-phon
Product Number5988453
Product FamilyR960

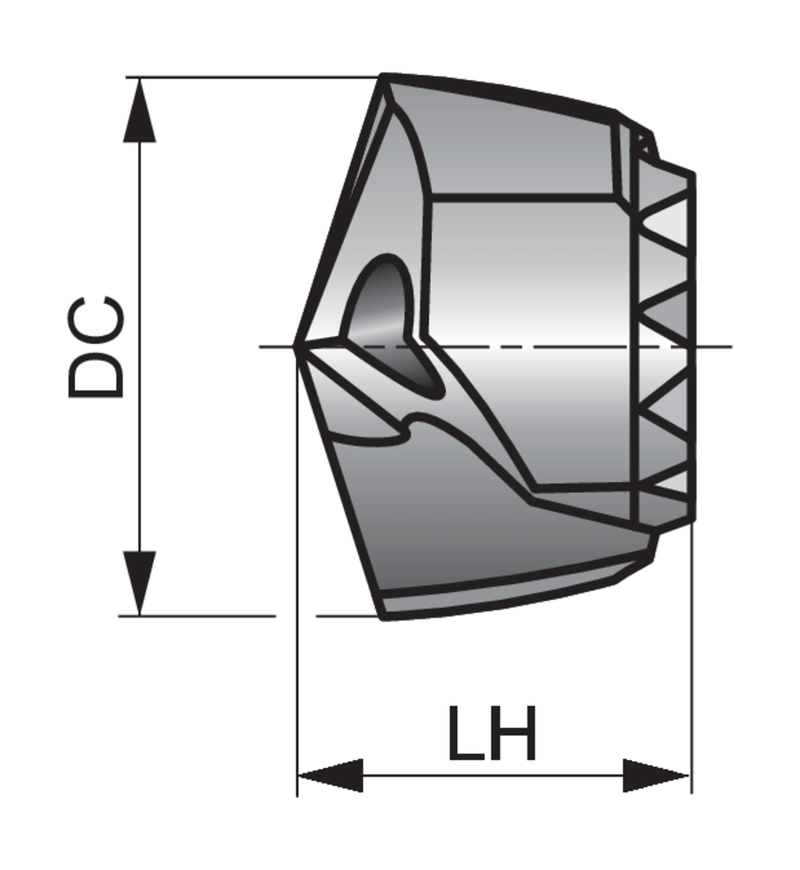

Dimensions
Cutting Diameter — in (DC)0.8858"
Cutting Diameter — mm (DC)22.5 mm
Drill Point Angle (SIG)140°
Tool Information
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number32428
EAN7320760032428
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
S — High Temperature Alloys Utilisation possible
File Type Download
R96022.5 — 3D Model STP Download
R96022.5 — 2D Model DXF Download
R96022.5 — Line Drawing PDF Download
