R96023/32
R96023/32
R96023/32

R96023/32

UGC DOR5988471
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$155.14 CAD - $155.14 CAD
$155.14 CAD
$155.14 CAD - $155.14 CAD
$155.14 CAD

Vendu en lots de : 1

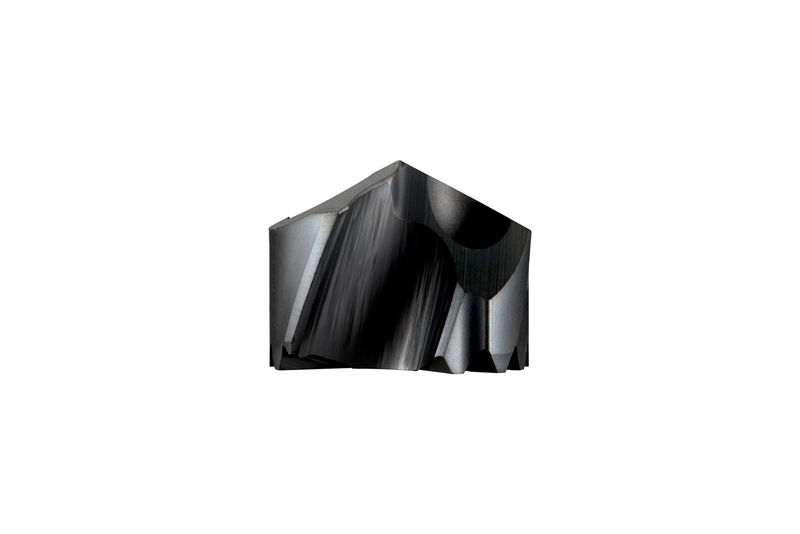

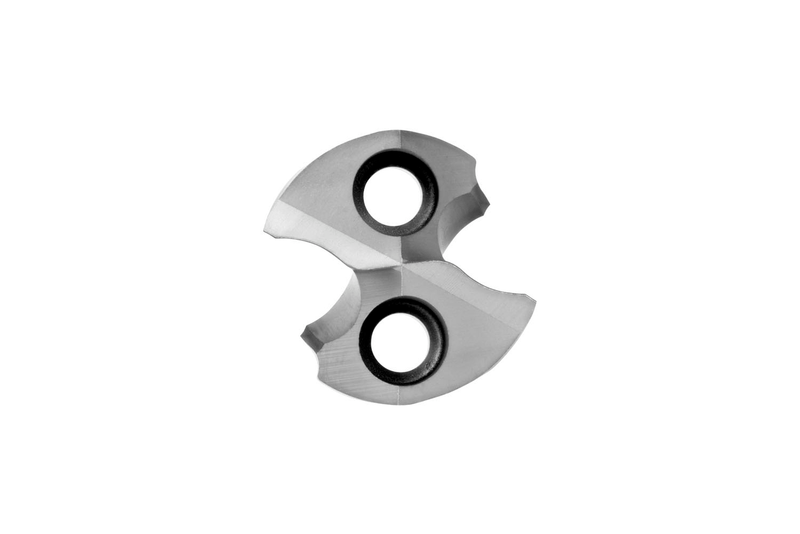

Tête de forage remplaçable haute performance HYDRA M, diamètre 0,7188" (23/32) selon la norme DORMER avec une pointe fendue modifiée à 4 facettes de 140°, en carbure monobloc avec revêtement Ti-phon pour le perçage de l'acier inoxydable en combinaison avec le corps HYDRA de taille 23/32" ou 18 mm, H853 pour jusqu'à 3xD, H855 pour jusqu'à 5xD ou H858 pour jusqu'à 8xD

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R96023/32
GradeTyphon
Product Number5988471
Product FamilyR960
Dimensions

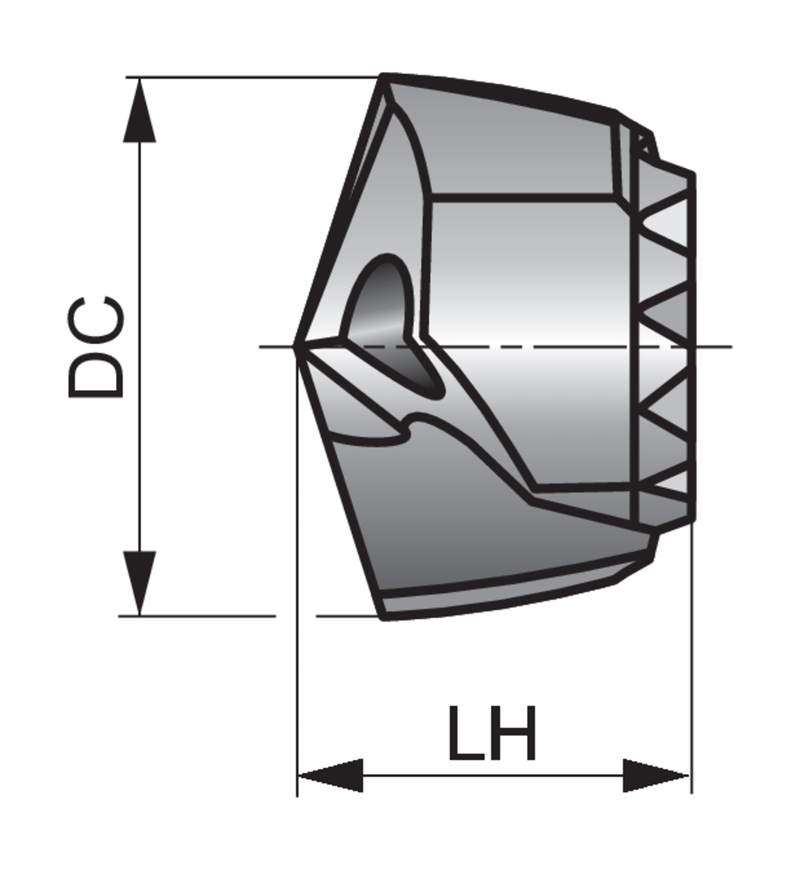

Cutting Diameter — in (DC)0.7188"
Cutting Diameter — mm (DC)18.26 mm
Cutting Diameter — Fractional23/32
Drill Point Angle (SIG)140°
Tool Information
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number16671
EAN7320760016671
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
S — High Temperature Alloys Utilisation possible
File Type Download
R96023/32 — 3D Model STP Download
R96023/32 — 2D Model DXF Download
R96023/32 — Line Drawing PDF Download
