UGC DOR5988604
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$193.71 CAD - $193.71 CAD
$193.71 CAD
$193.71 CAD - $193.71 CAD
$193.71 CAD

Vendu en lots de : 1

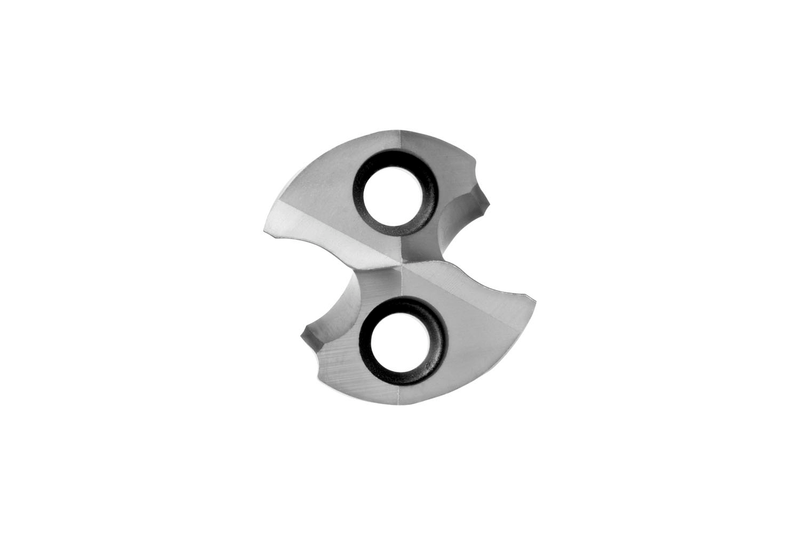

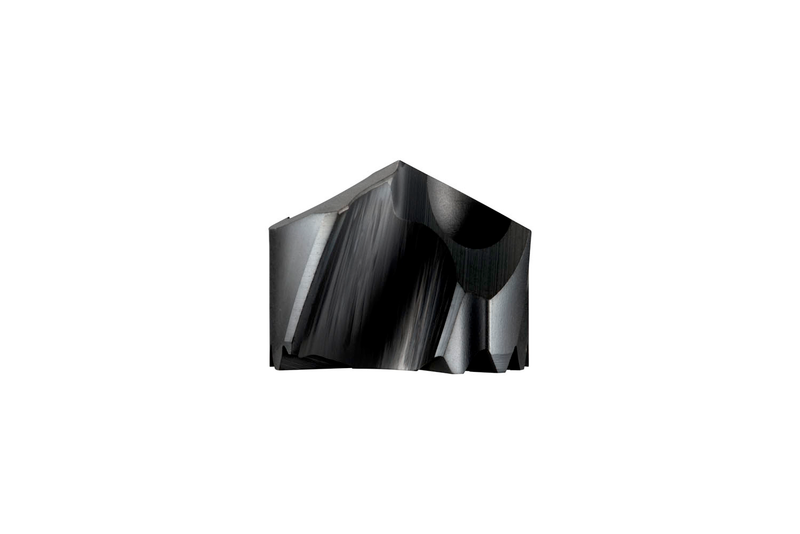

Tête de forage remplaçable haute performance HYDRA P, diamètre 1.0000" (1) selon la norme DORMER avec pointe fendue à 4 facettes modifiée à 140°, carbure monobloc avec revêtement Ti-phon pour le perçage de l'acier en combinaison avec le corps HYDRA taille 1.1/64" ou 25 mm, H853 jusqu'à 3xD, H855 jusqu'à 5xD ou H858 jusqu'à 8xD

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R9501
GradeTyphon
Product Number5988604
Product FamilyR950
Dimensions

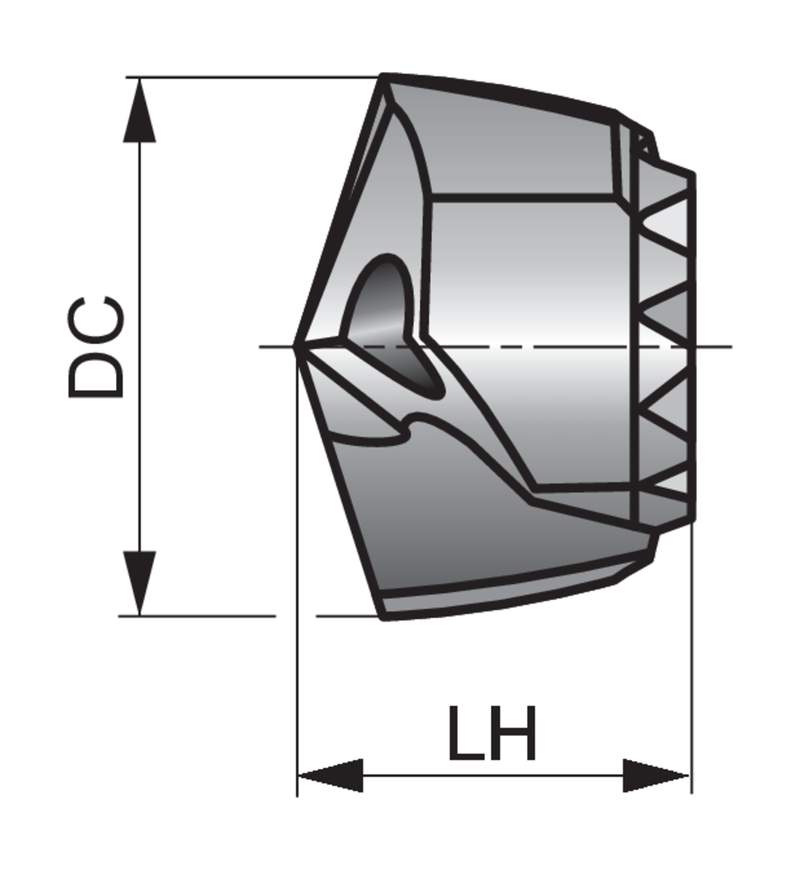

Cutting Diameter — in (DC)1.0"
Cutting Diameter — mm (DC)25.4 mm
Cutting Diameter — Fractional1"
Drill Point Angle (SIG)140°
Tool Information
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number12833
EAN7320760012833
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage possible
K — Cast Iron Usage principal
File Type Download
R9501 — 3D Model STP Download
R9501 — 2D Model DXF Download
R9501 — Line Drawing PDF Download
