R9501.1/16
R9501.1/16
R9501.1/16

R9501.1/16

UGC DOR5988637
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$200.57 CAD - $200.57 CAD
$200.57 CAD
$200.57 CAD - $200.57 CAD
$200.57 CAD

Vendu en lots de : 1

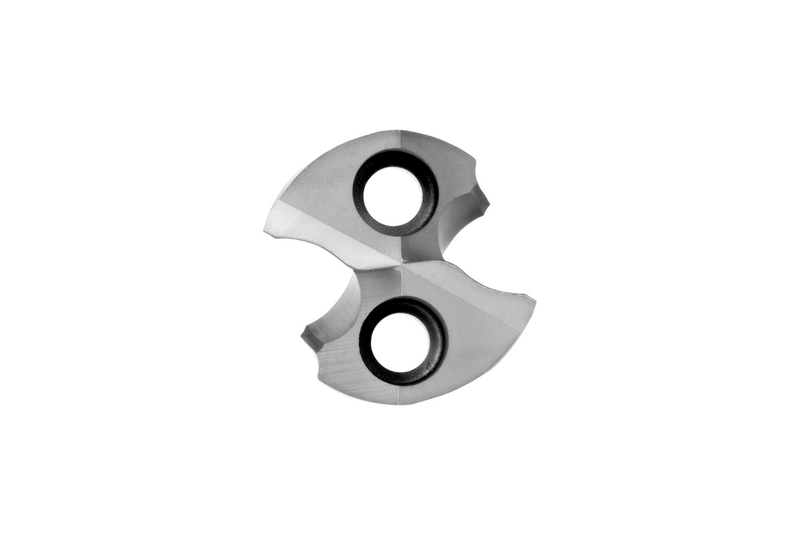

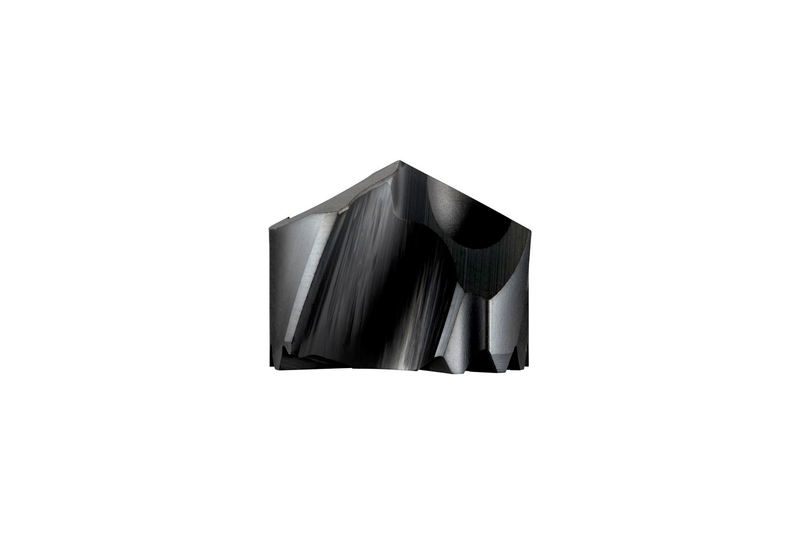

Tête de forage interchangeable haute performance HYDRA P, diamètre 1,0625" (1.1/16) selon la norme DORMER avec pointe fendue à 4 facettes modifiée à 140°, en carbure monobloc avec revêtement Ti-phon pour le perçage de l'acier en combinaison avec le corps HYDRA de taille 1.3/32" ou 27mm, H853 pour jusqu'à 3xD, H855 pour jusqu'à 5xD ou H858 pour jusqu'à 8xD

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R9501.1/16
GradeTyphon
Product Number5988637
Product FamilyR950
Dimensions

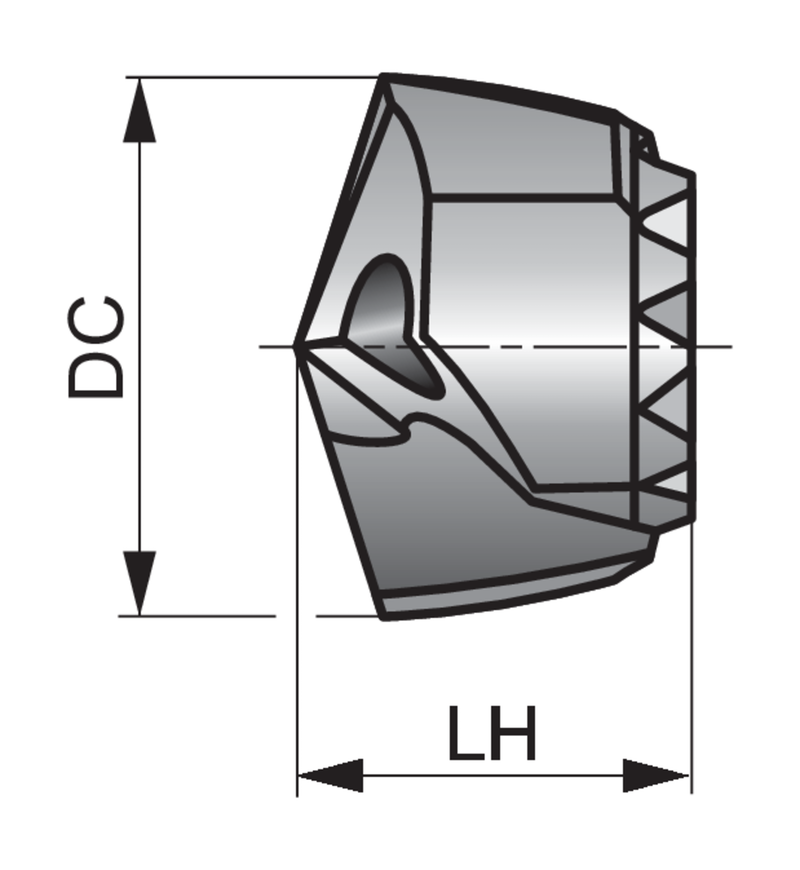

Cutting Diameter — in (DC)1.0625"
Cutting Diameter — mm (DC)26.99 mm
Cutting Diameter — Fractional1,1/16
Drill Point Angle (SIG)140°
Tool Information
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number13243
EAN7320760013243
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
File Type Download
R9501.1/16 — 3D Model STP Download
R9501.1/16 — 2D Model DXF Download
R9501.1/16 — Line Drawing PDF Download
