R95012.8
R95012.8
R95012.8

R95012.8

UGC DOR5988641
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$132.86 CAD - $132.86 CAD
$132.86 CAD
$132.86 CAD - $132.86 CAD
$132.86 CAD

Vendu en lots de : 1

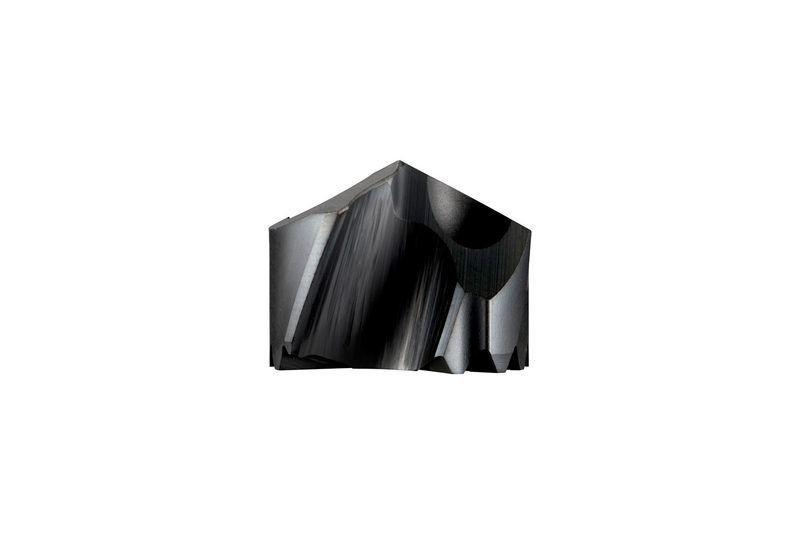

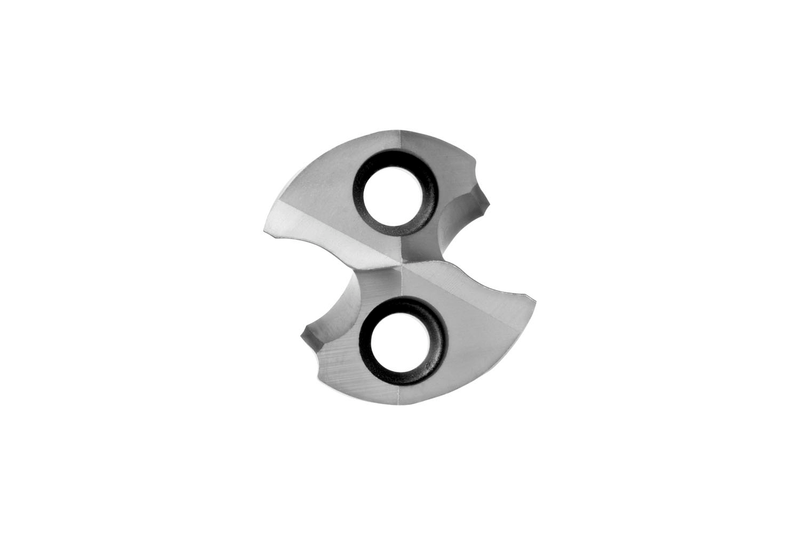

Tête de forage remplaçable haute performance HYDRA P, diamètre 12,8 mm selon la norme DORMER avec une pointe de forage à 4 facettes modifiée à 140°, en carbure monobloc avec revêtement Ti-phon pour le perçage de l'acier en combinaison avec le corps HYDRA de taille 12,5 mm ou 1/2", H853 jusqu'à 3xD, H855 jusqu'à 5xD ou H858 jusqu'à 8xD

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R95012.8
GradeTyphon
Product Number5988641
Product FamilyR950

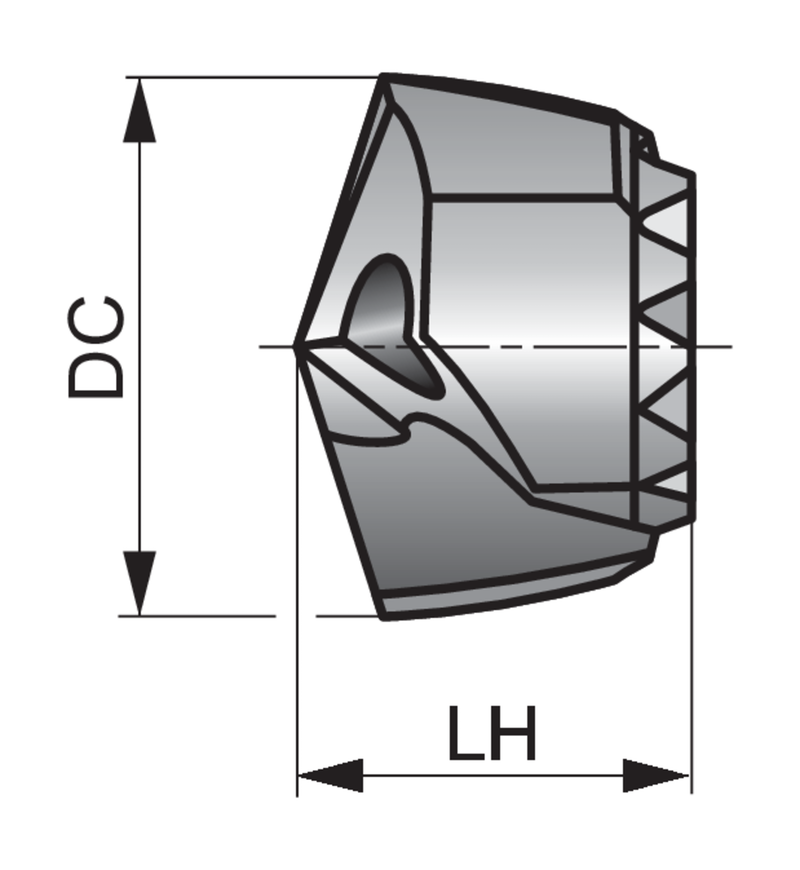

Dimensions
Cutting Diameter — in (DC)0.5039"
Cutting Diameter — mm (DC)12.8 mm
Drill Point Angle (SIG)140°
Tool Information
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number37935
EAN7320760037935
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
File Type Download
R95012.8 — 3D Model STP Download
R95012.8 — 2D Model DXF Download
R95012.8 — Line Drawing PDF Download
